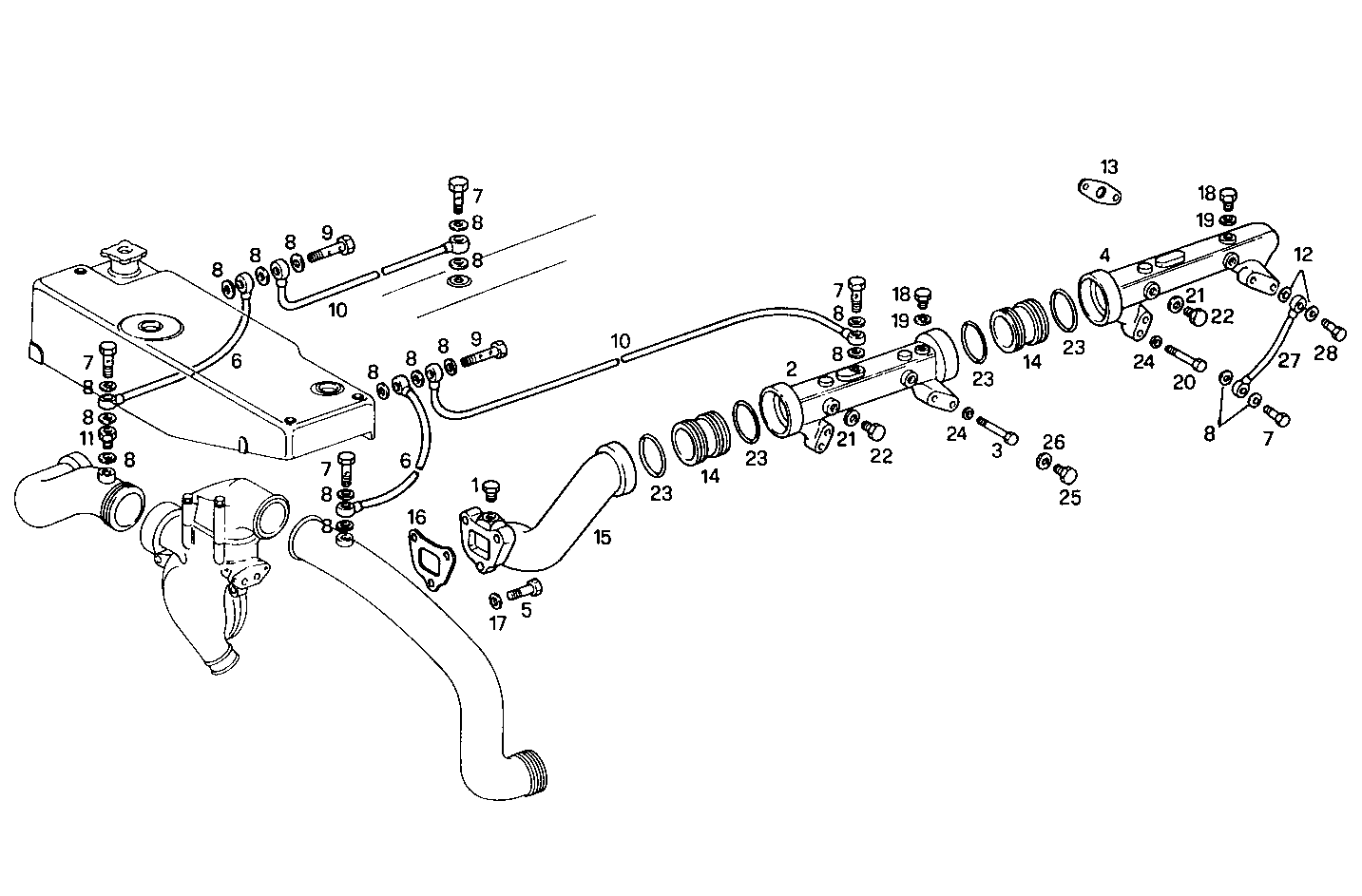

WATER LINES
8210SRE10.00 — 8210SRE10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16997711 | LOCK PLUG LOCK PLUG | 1 | |
| 2 | 8021501 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 3 | 15888721 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 4 | 8027937 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 5 | 16606024 | SCREW SCREW | 3 | |
| 6 | 8018769 | FUEL LINE FUEL LINE | 2 | |
| 7 | 4864082 | BANJO BOLT BANJO BOLT | 4 | |
| 8 | 4858607 | WASHER WASHER | 14 | |
| 9 | 8012607 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 10 | 8017577 | AIR PIPE/DUCT AIR PIPE/DUCT | 2 | |
| 11 | 8104714 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 4858606 | GASKET GASKET | 2 | |
| 13 | 99435380 | FLAT ENGINE GKT FLAT ENGINE GKT | 4 | |
| 14 | 4859434 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 2 | |
| 15 | 98415295 | WATER PIPE WATER PIPE | 1 | |
| 16 | 61318850 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 17 | 17094914 | WASHER WASHER | 3 | |
| 18 | 16992311 | LOCK PLUG LOCK PLUG | 2 | |
| 19 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 20 | 11343821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 21 | 4858609 | WASHER WASHER | 4 | |
| 22 | 16992411 | THREADED PLUG THREADED PLUG | 4 | |
| 23 | 98461203 | O-RING O-RING | 4 | |
| 24 | 17095104 | WASHER WASHER | 8 | |
| 25 | 16994011 | LOCK PLUG LOCK PLUG | 1 | |
| 26 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 27 | 8012899 | WATER PIPE WATER PIPE | 1 | |
| 28 | 8015164 | SCREW CONNECTOR SCREW CONNECTOR | 1 |
