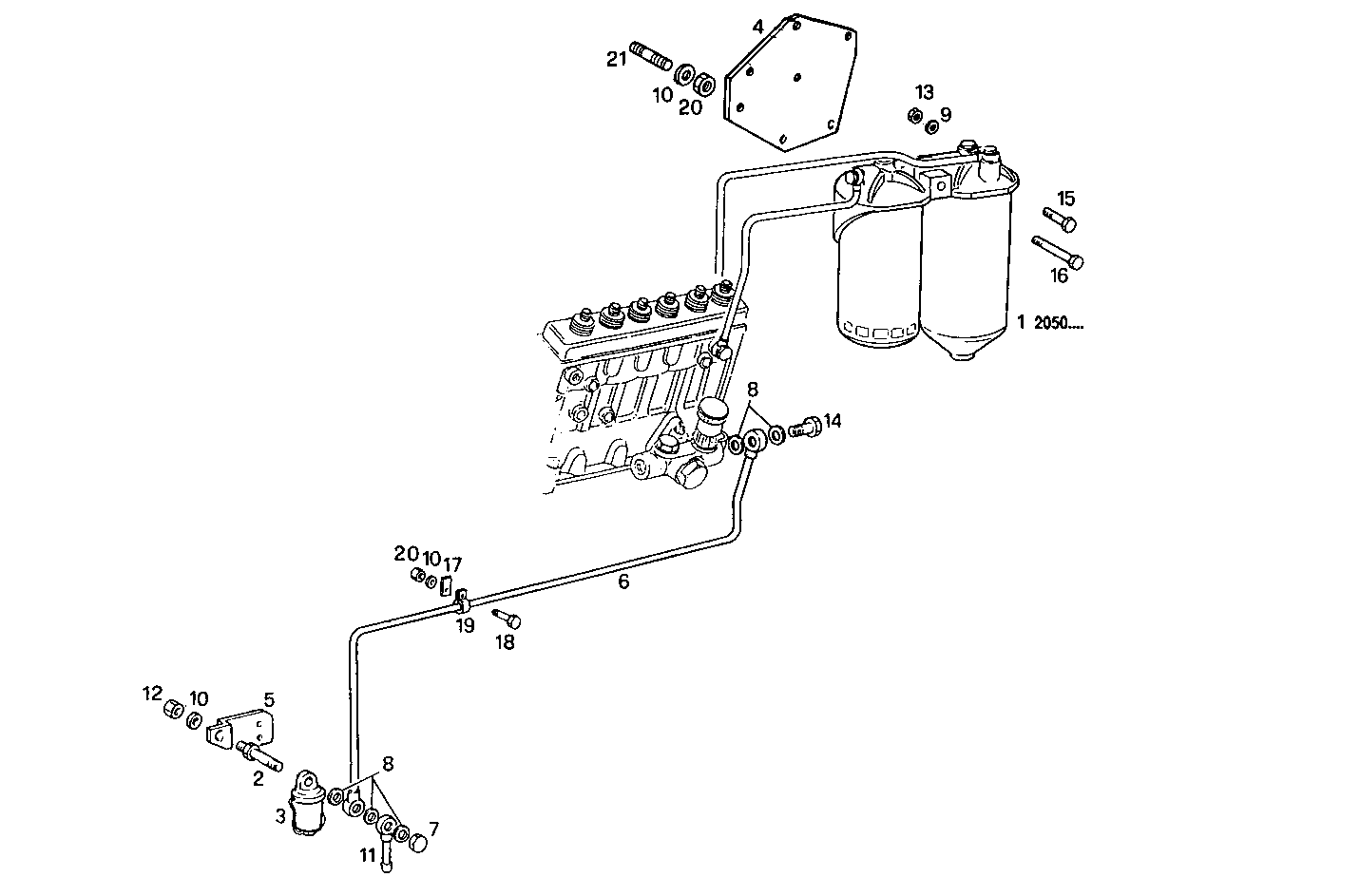

FUEL FILTER
8210SRE20.00 — 8210SRE20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4690738 | FUEL FILTER FUEL FILTER | 1 | |
| 2 | 4623038 | PIPE SOCKET PIPE SOCKET | 1 | |
| 3 | 4797318 | FUEL FILTER FUEL FILTER | 1 | |
| 4 | 8012750 | OIL FILTER SUPPORT OIL FILTER SUPPORT | 1 | |
| 5 | 8105252 | RETAINER RETAINER | 1 | |
| 6 | 8012821 | FUEL LINE FUEL LINE | 1 | |
| 7 | 10182817 | LOCK PLUG LOCK PLUG | 1 | |
| 8 | 98474308 | SEAL GASKET SEAL GASKET | 5 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 6 | |
| 11 | 98404882 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 17038121 | HEXAGON NUT HEXAGON NUT | 3 | |
| 14 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 15 | 16609224 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 17 | 8102995 | RETAINER RETAINER | 1 | |
| 18 | 16043124 | SCREW SCREW | 1 | |
| 19 | 17316490 | CLIP CLIP | 1 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 5 | |
| 21 | 16729324 | STUD STUD | 4 |
