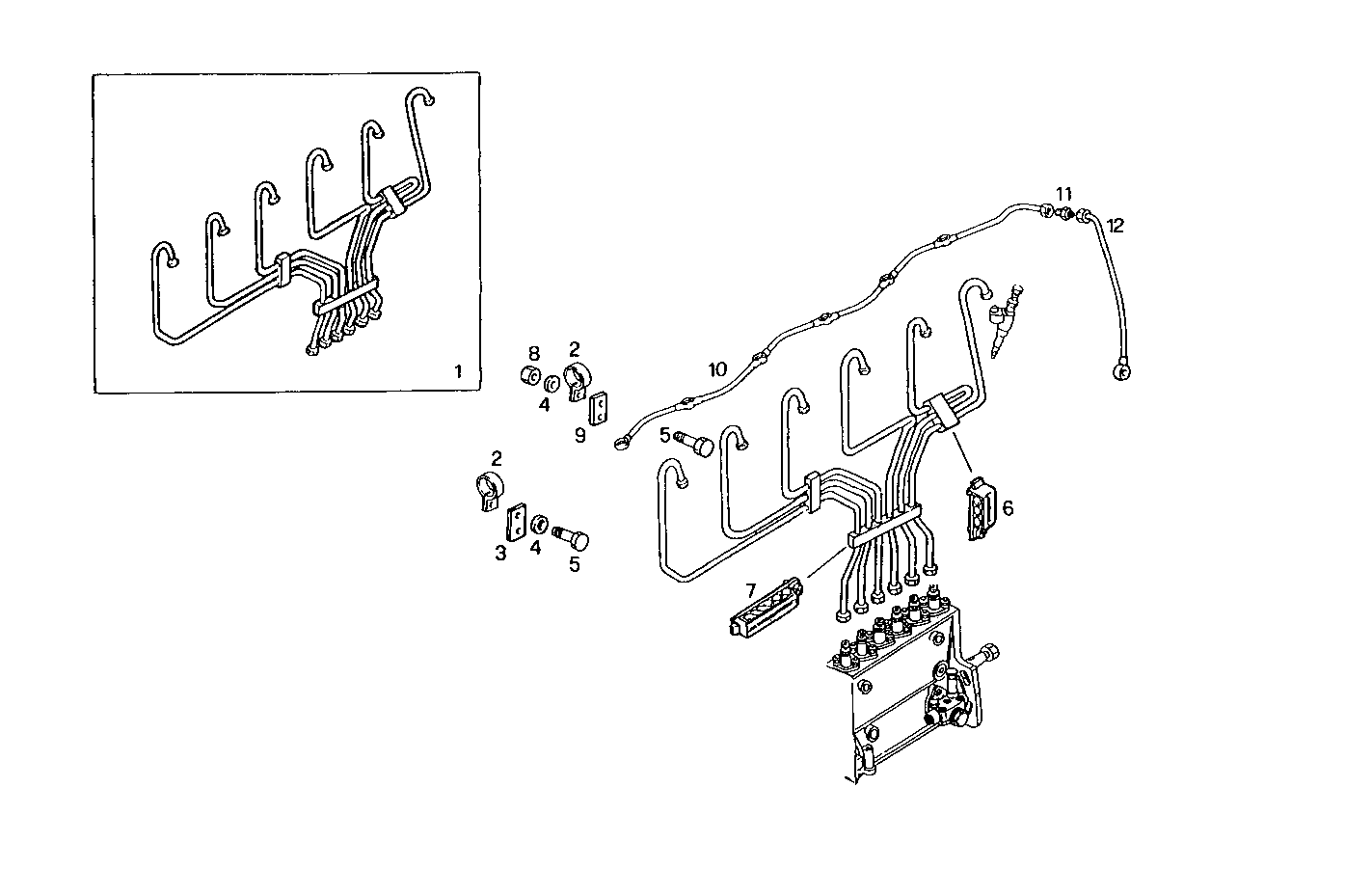

INJECTION PIPES
8210SRE20.00 — 8210SRE20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 98425916 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 2 | 17316190 | PIPE CLIP PIPE CLIP | 2 | |
| 3 | 4929652 | RETAINER RETAINER | 1 | |
| 4 | 17088474 | WASHER WASHER | 4 | |
| 5 | 16603524 | SCREW SCREW | 4 | |
| 6 | 99434292 | FASTENING BRACKET FASTENING BRACKET | 4 | |
| 7 | 99434293 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 9 | 8102227 | RETAINER RETAINER | 1 | |
| 10 | 98435435 | FUEL LINE FUEL LINE | 1 | |
| 11 | 16501511 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 12 | 8015689 | FUEL LINE FUEL LINE | 1 |
