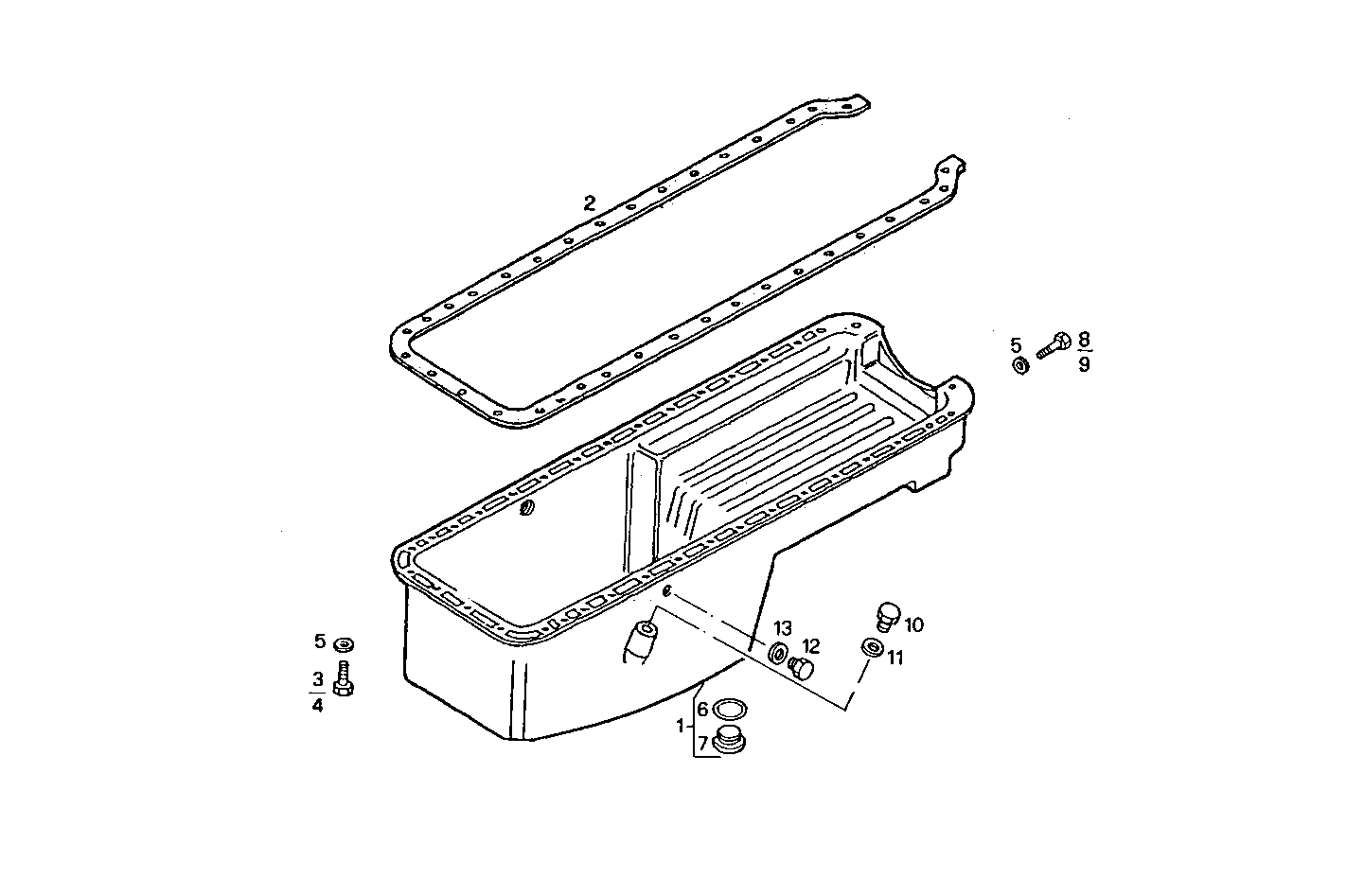

OIL SUMP
8210SRE20.00 — 8210SRE20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8025972 | OIL SUMP OIL SUMP | 1 | |
| 2 | 98414688 | OIL SUMP GASKET OIL SUMP GASKET | 1 | |
| 3 | 10929824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 4 | 10923624 | SCREW SCREW | 31 | |
| 5 | 17090174 | SPRING WASHER SPRING WASHER | 41 | |
| 6 | 17282181 | O-RING O-RING | 1 | |
| 7 | 98491299 | THREADED PLUG THREADED PLUG | 1 | |
| 8 | 11343824 | HEXAGON BOLT HEXAGON BOLT | 6 | |
| 9 | 11288024 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 10 | 16993311 | THREADED PLUG THREADED PLUG | 1 | |
| 11 | 4858610 | WASHER WASHER | 1 | |
| 12 | 16993611 | THREADED PLUG THREADED PLUG | 1 | |
| 13 | 10265060 | SEAL GASKET SEAL GASKET | 1 |
