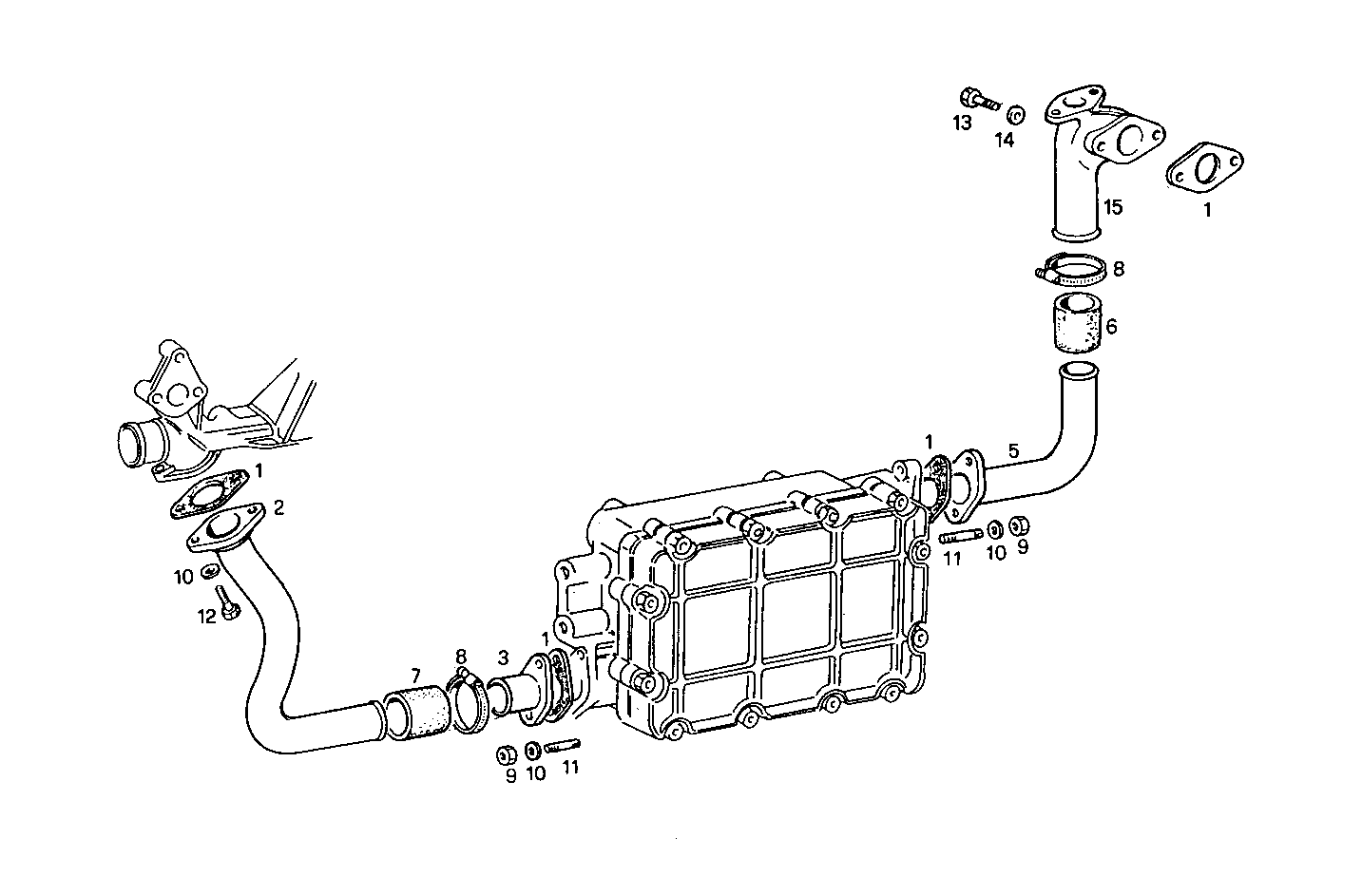

WATER LINES
8210SRE20.00 — 8210SRE20
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4863951 | FLAT ENGINE GKT FLAT ENGINE GKT | 3 | |
| 2 | 98485417 | WATER PIPE WATER PIPE | 1 | |
| 3 | 4756798 | PIPE PIPE | 1 | |
| 5 | 4756199 | INTAKE ELBOW INTAKE ELBOW | 1 | |
| 6 | 4863960 | WATER HOSE WATER HOSE | 1 | |
| 7 | 4863962 | WATER HOSE WATER HOSE | 1 | |
| 8 | 98490783 | CLIP CLIP | 4 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 10 | 17793814 | WASHER WASHER | 6 | |
| 11 | 16746724 | STUD STUD | 4 | |
| 12 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 14 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 4670077 | WATER PIPE WATER PIPE | 1 |
