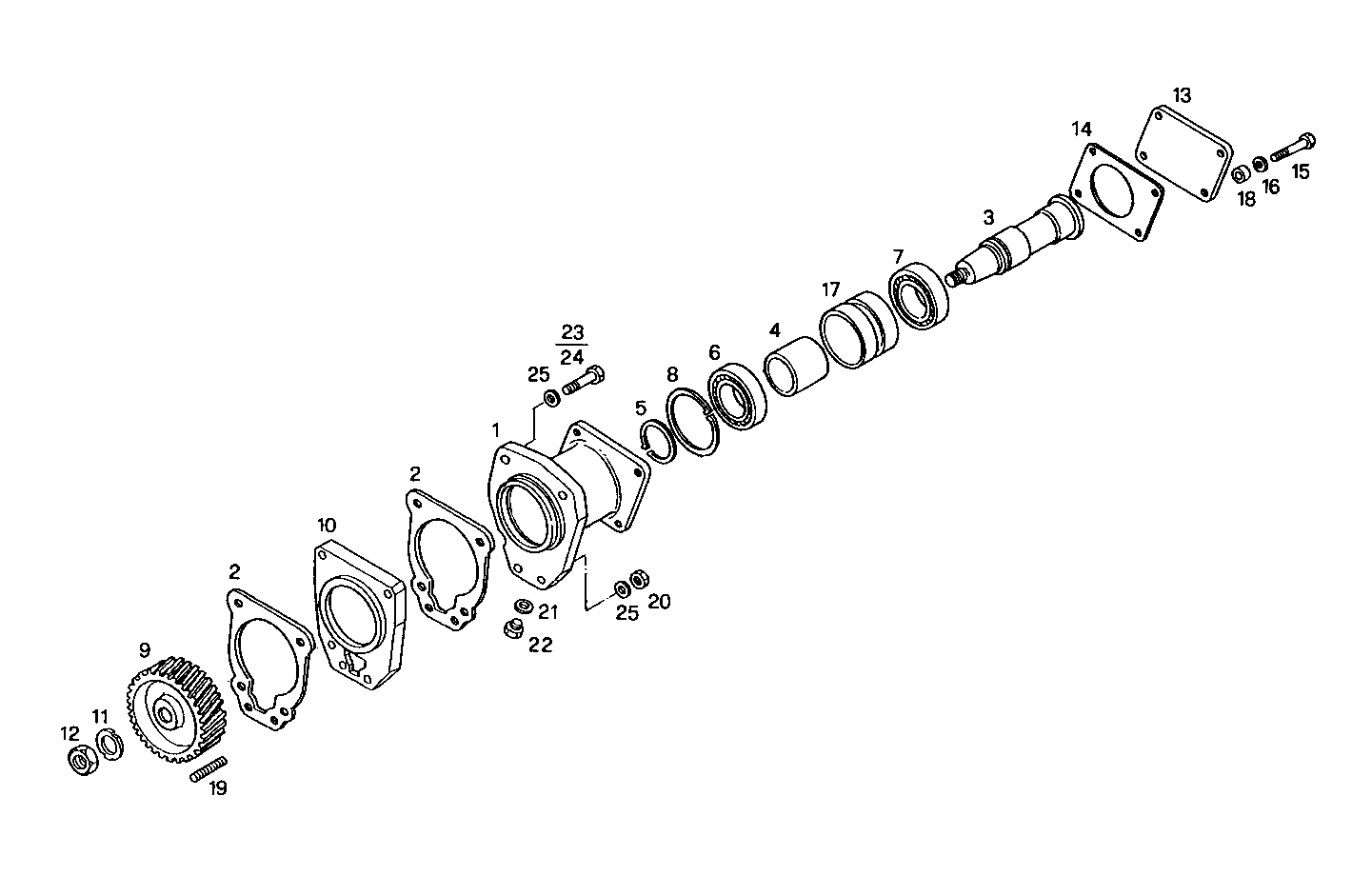

ARRANGED FOR HYDRAULIC PUMP
8210SRE21.00 — 8210SRE21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8022648 | SUPPORT SUPPORT | 1 | |
| 2 | 4864032 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 8108862 | SHAFT SHAFT | 1 | |
| 4 | 61586410 | SPACING BAR SPACING BAR | 1 | |
| 5 | 16867176 | CIRCLIP CIRCLIP | 1 | |
| 6 | 26798470 | DRIVE BEARING DRIVE BEARING | 1 | |
| 7 | 20705250 | DRIVE BEARING DRIVE BEARING | 1 | |
| 8 | 16874476 | CIRCLIP CIRCLIP | 1 | |
| 9 | 98424645 | COMP. DRIVE GEAR COMP. DRIVE GEAR | 1 | |
| 10 | 8022650 | FLANGE FLANGE | 1 | |
| 11 | 4709364 | LOCKING PLATE LOCKING PLATE | 1 | |
| 12 | 99471892 | HEXAGON NUT HEXAGON NUT | 1 | |
| 13 | 8108924 | COVER COVER | 1 | |
| 14 | 8009914 | GASKET GASKET | 1 | |
| 15 | 16605924 | SCREW SCREW | 4 | |
| 16 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 61586411 | SPACING BAR SPACING BAR | 1 | |
| 18 | 17816214 | SPACER SPACER | 4 | |
| 19 | 13547024 | STUD STUD | 2 | |
| 20 | 17038221 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 4858606 | GASKET GASKET | 1 | |
| 22 | 11903111 | LOCK PLUG LOCK PLUG | 1 | |
| 23 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 24 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 25 | 17090174 | SPRING WASHER SPRING WASHER | 4 |
