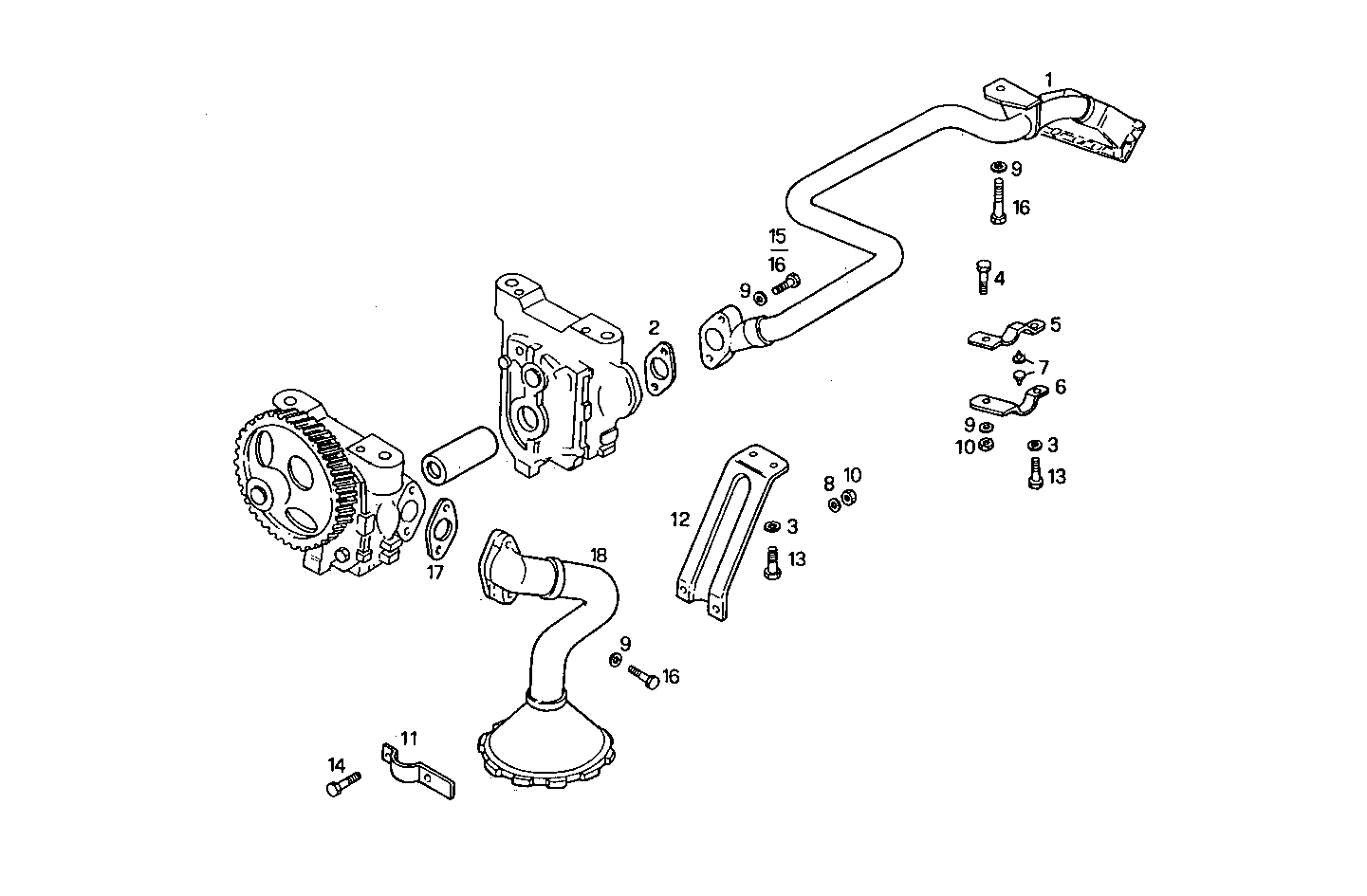

OIL SUMP
8210SRE21.00 — 8210SRE21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4706072 | OIL LINE OIL LINE | 1 | |
| 2 | 4864035 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 3 | 17090274 | WASHER WASHER | 5 | |
| 4 | 16605424 | SCREW SCREW | 1 | |
| 5 | 4706070 | RETAINER RETAINER | 1 | |
| 6 | 4706071 | RETAINER RETAINER | 1 | |
| 7 | 1366290 | RUBBER PAD RUBBER PAD | 2 | |
| 8 | 17089774 | SPRING WASHER SPRING WASHER | 5 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 10 | 17087921 | NUT NUT | 3 | |
| 11 | 4618810 | RETAINER RETAINER | 1 | |
| 12 | 1367840 | RETAINER RETAINER | 1 | |
| 13 | 15970524 | HEXAGON BOLT HEXAGON BOLT | 5 | |
| 14 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 16606024 | SCREW SCREW | 5 | |
| 17 | 4864034 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 18 | 1367839 | SUCTION STRAINER SUCTION STRAINER | 1 |
