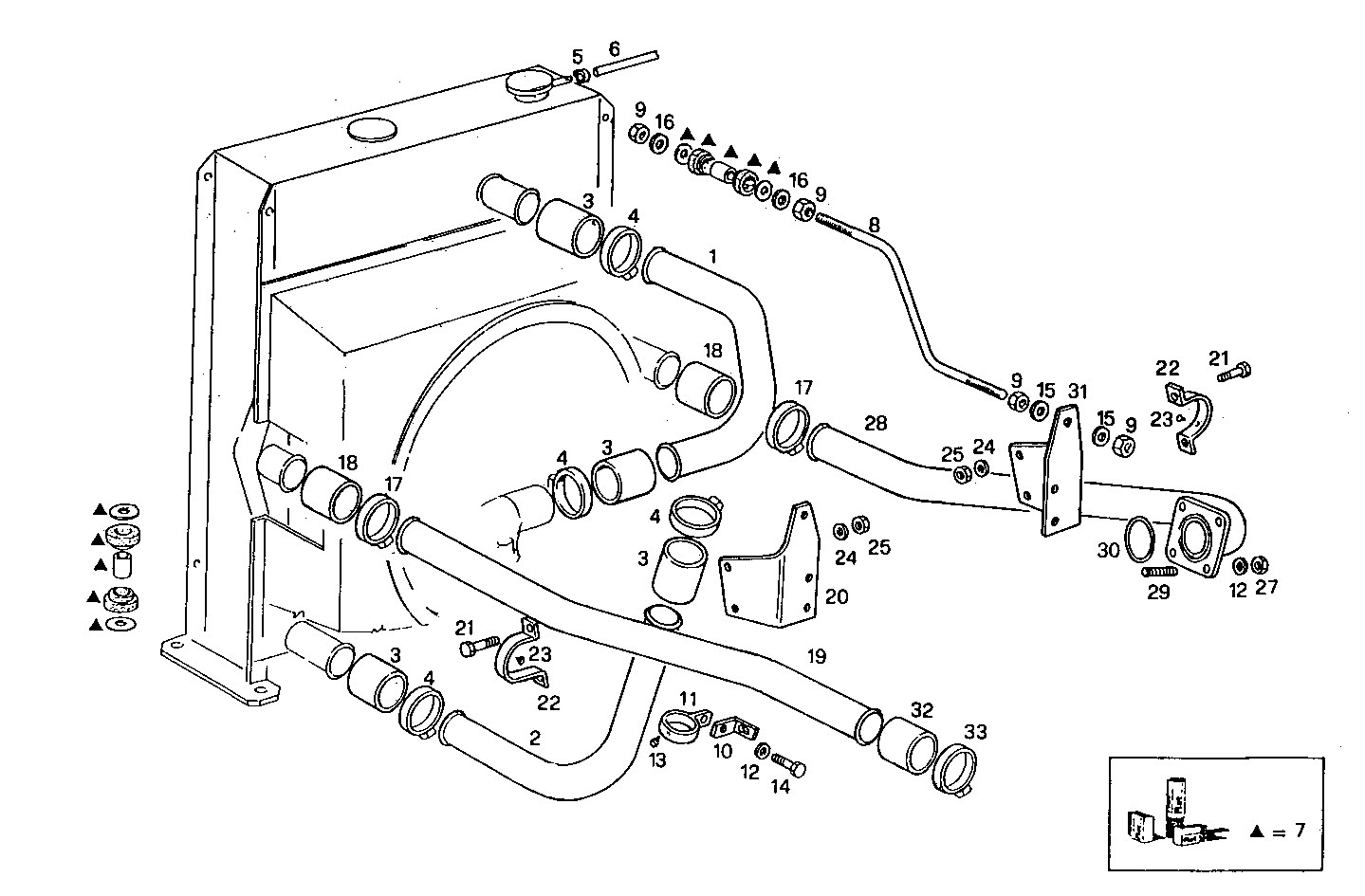

RADIATOR FOR SETTING TILL MAX POWER
8210SRE21.00 — 8210SRE21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8017857 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8017856 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17745887 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 4 | 4830091 | CLIP CLIP | 8 | |
| 5 | 18087991 | CLIP CLIP | 2 | |
| 6 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 7 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 8 | 8019388 | TIE ROD TIE ROD | 2 | |
| 9 | 17038421 | HEXAGON NUT HEXAGON NUT | 8 | |
| 10 | 8100819 | RETAINER RETAINER | 1 | |
| 11 | 4936328 | CLIP CLIP | 1 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 13 | 4565875 | RUBBER PAD RUBBER PAD | 3 | |
| 14 | 11306921 | SCREW SCREW | 1 | |
| 15 | 17091374 | SPRING WASHER SPRING WASHER | 4 | |
| 16 | 17095304 | WASHER WASHER | 4 | |
| 17 | 8020013 | CLIP CLIP | 4 | |
| 18 | 42088612 | WATER HOSE WATER HOSE | 2 | |
| 19 | 8019766 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 20 | 8019387 | RETAINER RETAINER | 1 | |
| 21 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 22 | 8108759 | CLIP CLIP | 2 | |
| 23 | 1366290 | RUBBER PAD RUBBER PAD | 8 | |
| 24 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 25 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 27 | 17038121 | HEXAGON NUT HEXAGON NUT | 4 | |
| 28 | 8017858 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 29 | 16748524 | SCREW SCREW | 4 | |
| 30 | 17291481 | O-RING O-RING | 1 | |
| 31 | 8019386 | RETAINER RETAINER | 1 | |
| 32 | 42070016 | WATER HOSE WATER HOSE | 1 | |
| 33 | 8005839 | CLIP CLIP | 2 |
