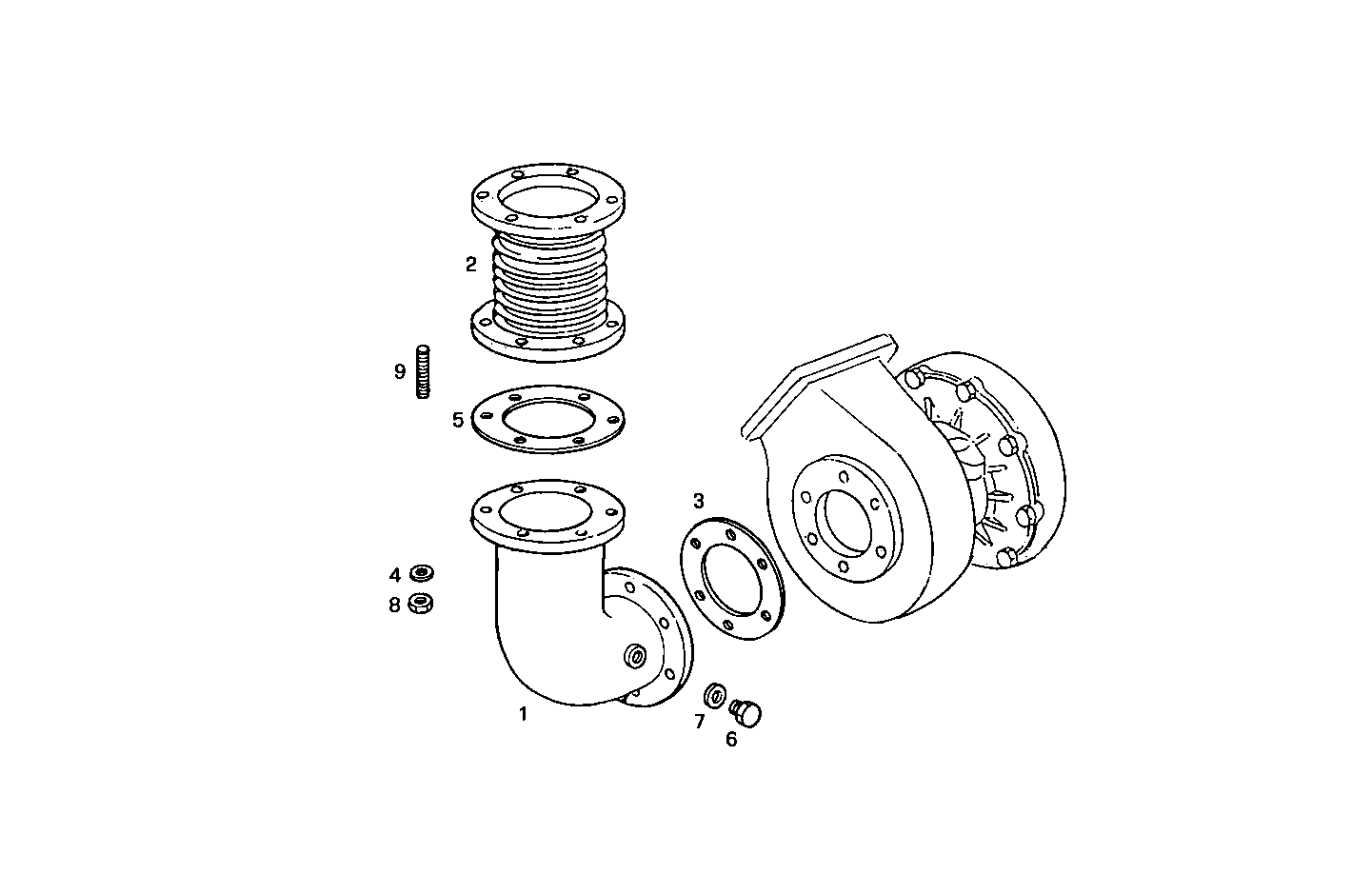

TURNING EXHAUST ELBOW WITH BELLOWS
8210SRE21.00 — 8210SRE21
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8018463 | EXHAUST ELBOW EXHAUST ELBOW | 1 | |
| 2 | 8101671 | EXHAUST BELLOWS EXHAUST BELLOWS | 1 | |
| 3 | 42075987 | GASKET GASKET | 1 | |
| 4 | 17090174 | SPRING WASHER SPRING WASHER | 6 | |
| 5 | 8009600 | GASKET GASKET | 2 | |
| 6 | 16992211 | THREADED PLUG THREADED PLUG | 1 | |
| 7 | 4858607 | WASHER WASHER | 1 | |
| 8 | 17038221 | HEXAGON NUT HEXAGON NUT | 6 | |
| 9 | 13449524 | STUD STUD | 12 |
