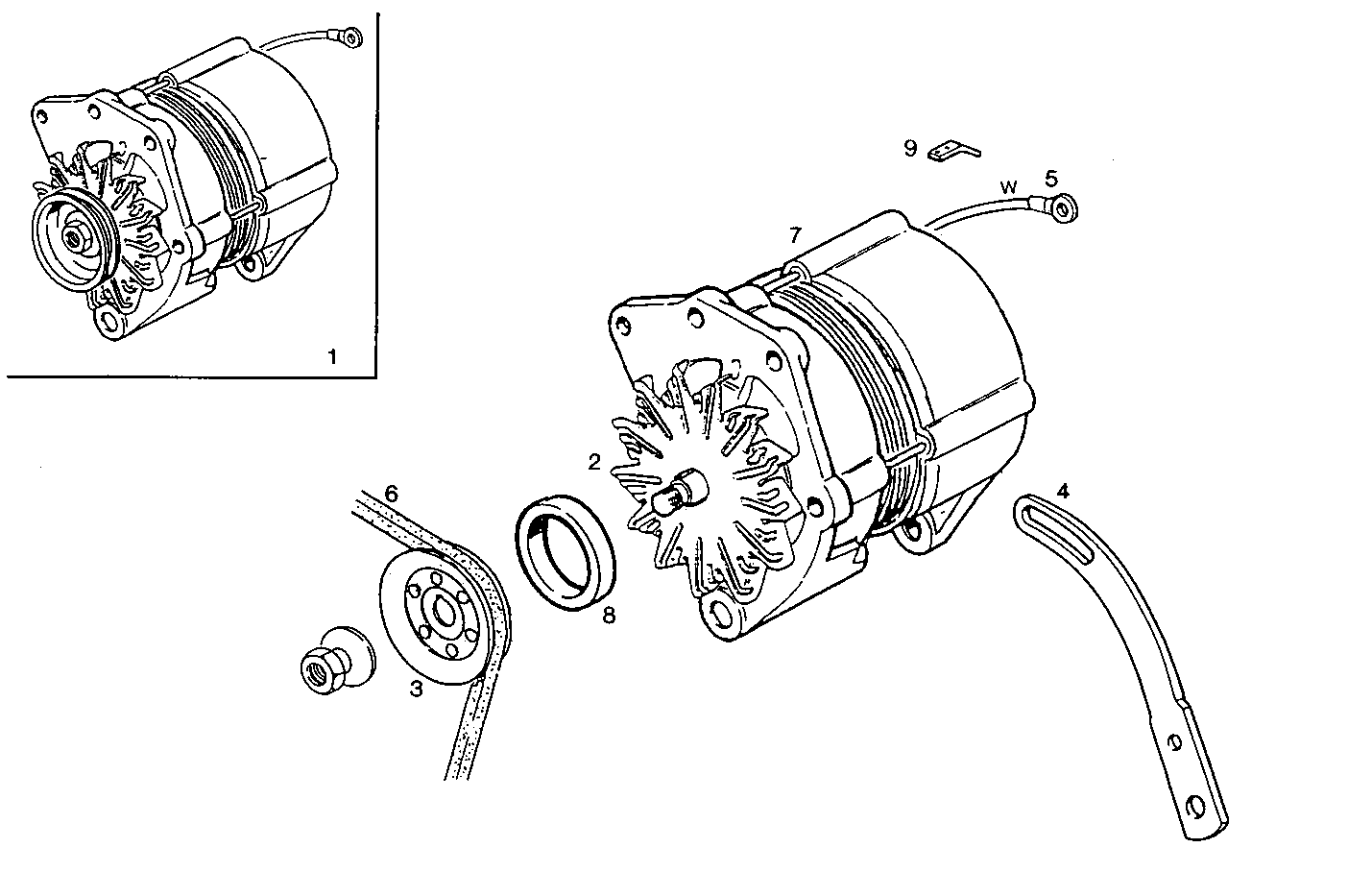

SELF-REGULATED ALTERNATOR
8210SRi10.00 — 8210SRi10
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019558 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 4757196 | GENERATOR FAN GENERATOR FAN | 1 | |
| 3 | 4808604 | PULLEY PULLEY | 1 | |
| 4 | 8114037 | BELT TENSIONER BELT TENSIONER | 1 | |
| 5 | 8019531 | WIRE/CABLE WIRE/CABLE | 1 | |
| 6 | 4819721 | V-BELT V-BELT | 1 | |
| 7 | 98424450 | ALTERNATOR ALTERNATOR | 1 | |
| 8 | 98454596 | SPACING BAR SPACING BAR | 1 | |
| 9 | 12277944 | CONNECTION CONNECTION | 1 |
