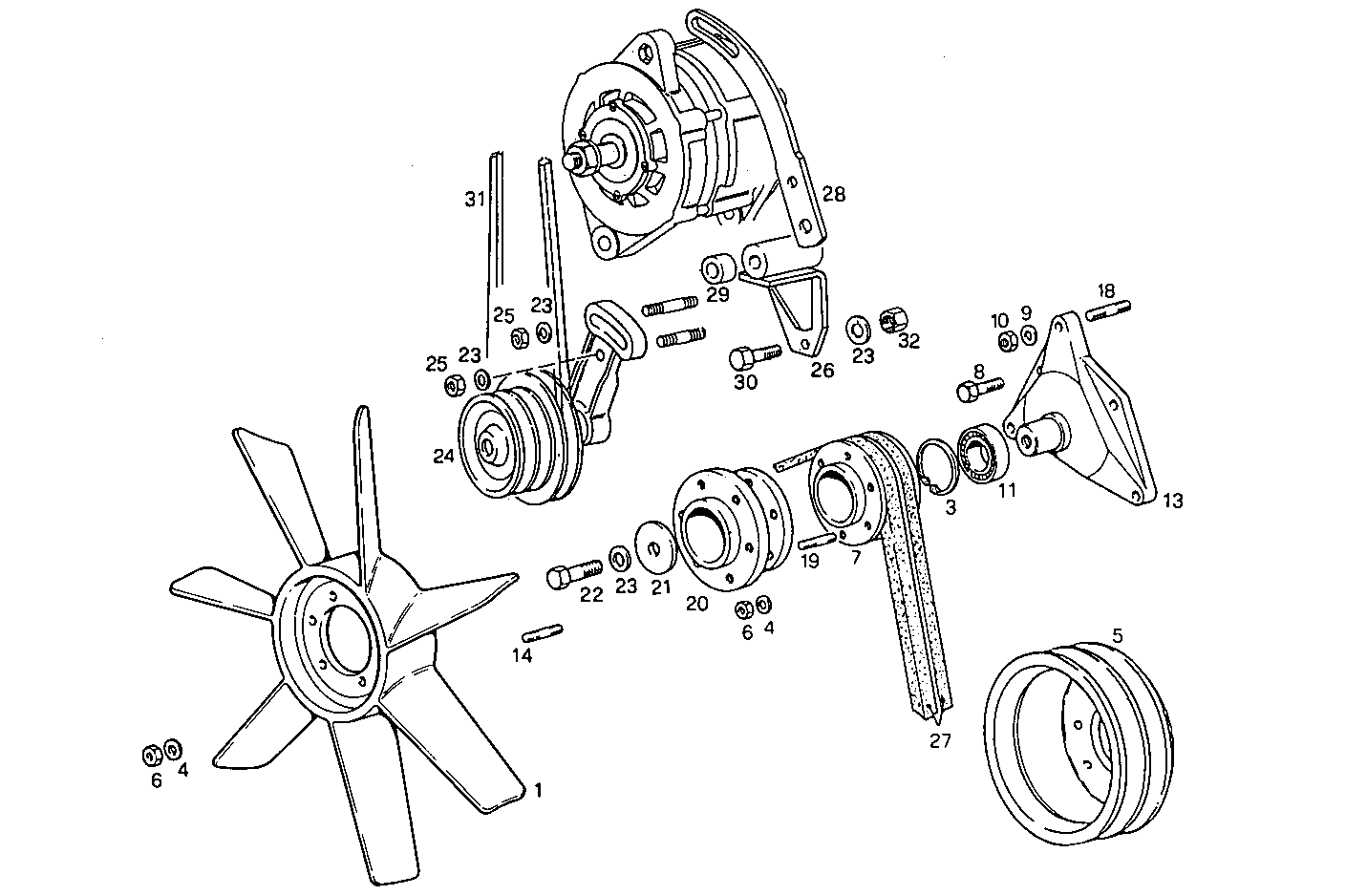

PULLER FAN
8210SRi12.01 — 8210SRi12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4936057 | FAN FAN | 1 | |
| 3 | 16874776 | CIRCLIP CIRCLIP | 1 | |
| 4 | 17089474 | SPRING WASHER SPRING WASHER | 12 | |
| 5 | 4651309 | WATER PUMP PULLEY WATER PUMP PULLEY | 1 | |
| 6 | 17037931 | HEXAGON NUT HEXAGON NUT | 12 | |
| 7 | 98464098 | PULLEY PULLEY | 1 | |
| 8 | 15972421 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 17090174 | SPRING WASHER SPRING WASHER | 3 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 3 | |
| 11 | 98427607 | ENGINE BEARINGS ENGINE BEARINGS | 1 | |
| 13 | 98464097 | SUPPORT SUPPORT | 1 | |
| 14 | 16729224 | STUD STUD | 6 | |
| 18 | 13453721 | STUD STUD | 3 | |
| 19 | 16729324 | STUD STUD | 6 | |
| 20 | 8006900 | SPACING BAR SPACING BAR | 1 | |
| 21 | 4801143 | WASHER WASHER | 1 | |
| 22 | 15540521 | SCREW SCREW | 1 | |
| 23 | 17091074 | WASHER WASHER | 1 | |
| 24 | 98485209 | BELT TENSIONER BELT TENSIONER | 1 | |
| 25 | 17038621 | NUT NUT | 2 | |
| 26 | 8006911 | SUPPORT SUPPORT | 1 | |
| 27 | 4854694 | SET OF V-BELTS SET OF V-BELTS | 1 | |
| 28 | 8007183 | BELT TENSIONER BELT TENSIONER | 1 | |
| 29 | 8114378 | SPACING BAR SPACING BAR | 1 | |
| 30 | 16610724 | SCREW SCREW | 1 | |
| 31 | 4814275 | ALTERNATOR BELT ALTERNATOR BELT | 1 | |
| 32 | 17038421 | HEXAGON NUT HEXAGON NUT | 1 |
