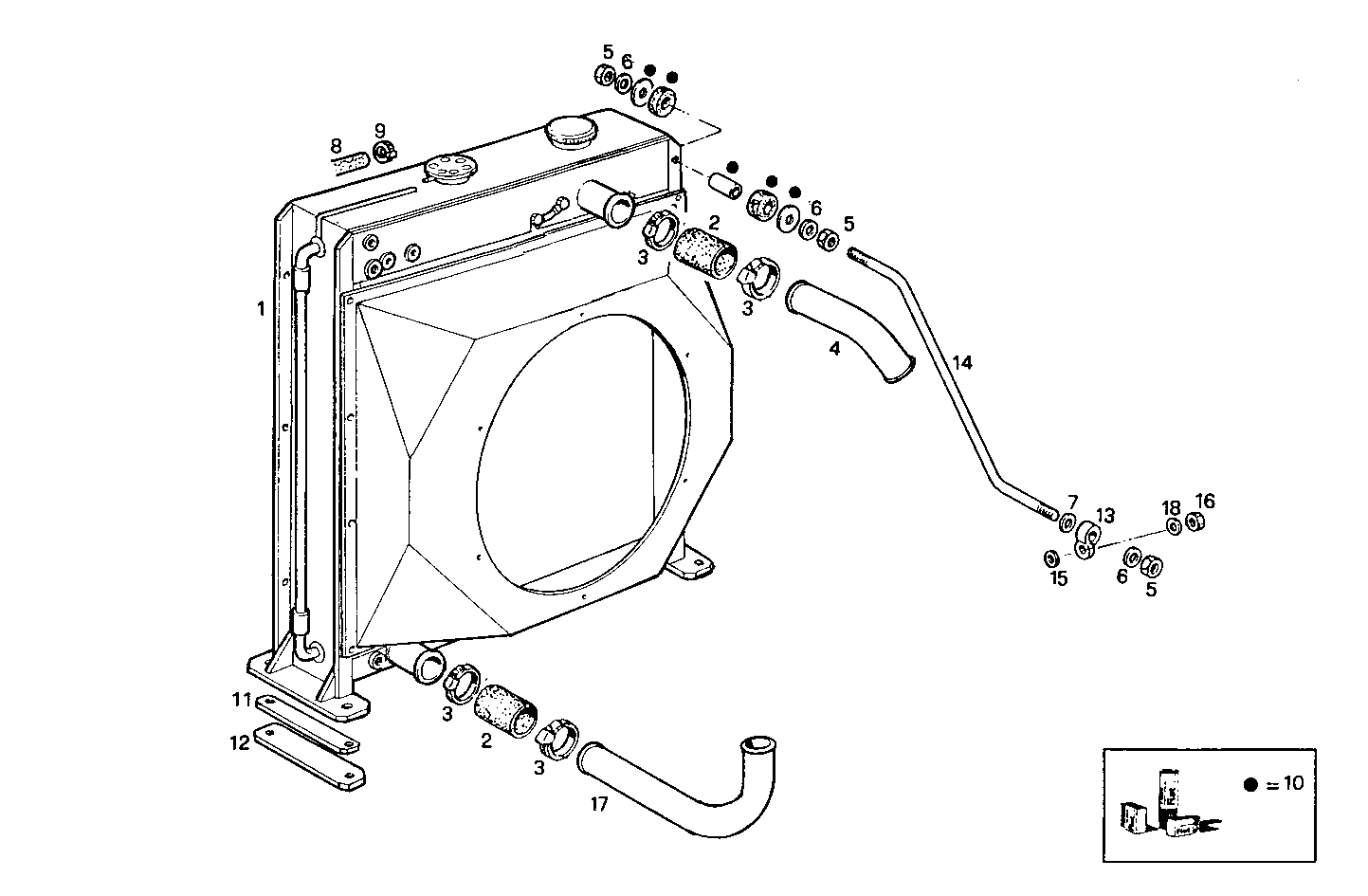

RADIATOR FOR SETTING TILL MAX POWER
8210SRi12.01 — 8210SRi12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021898 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 17745887 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 3 | 4830091 | CLIP CLIP | 8 | |
| 4 | 8025455 | WATER PIPE WATER PIPE | 1 | |
| 5 | 17038421 | HEXAGON NUT HEXAGON NUT | 8 | |
| 6 | 17091374 | SPRING WASHER SPRING WASHER | 8 | |
| 7 | 17095304 | WASHER WASHER | 4 | |
| 8 | 19056687 | RUBBER HOSE RUBBER HOSE | 1 | |
| 9 | 18087991 | CLIP CLIP | 2 | |
| 10 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 11 | 8010041 | SPACING BAR SPACING BAR | 2 | |
| 12 | 8019415 | SPACING BAR SPACING BAR | 4 | |
| 13 | 8028743 | RETAINER RETAINER | 2 | |
| 14 | 8010577 | TIE ROD TIE ROD | 2 | |
| 15 | 17095504 | WASHER WASHER | 4 | |
| 16 | 17038821 | HEXAGON NUT HEXAGON NUT | 4 | |
| 17 | 8010580 | WATER PIPE WATER PIPE | 1 | |
| 18 | 17091674 | WASHER WASHER | 4 |
