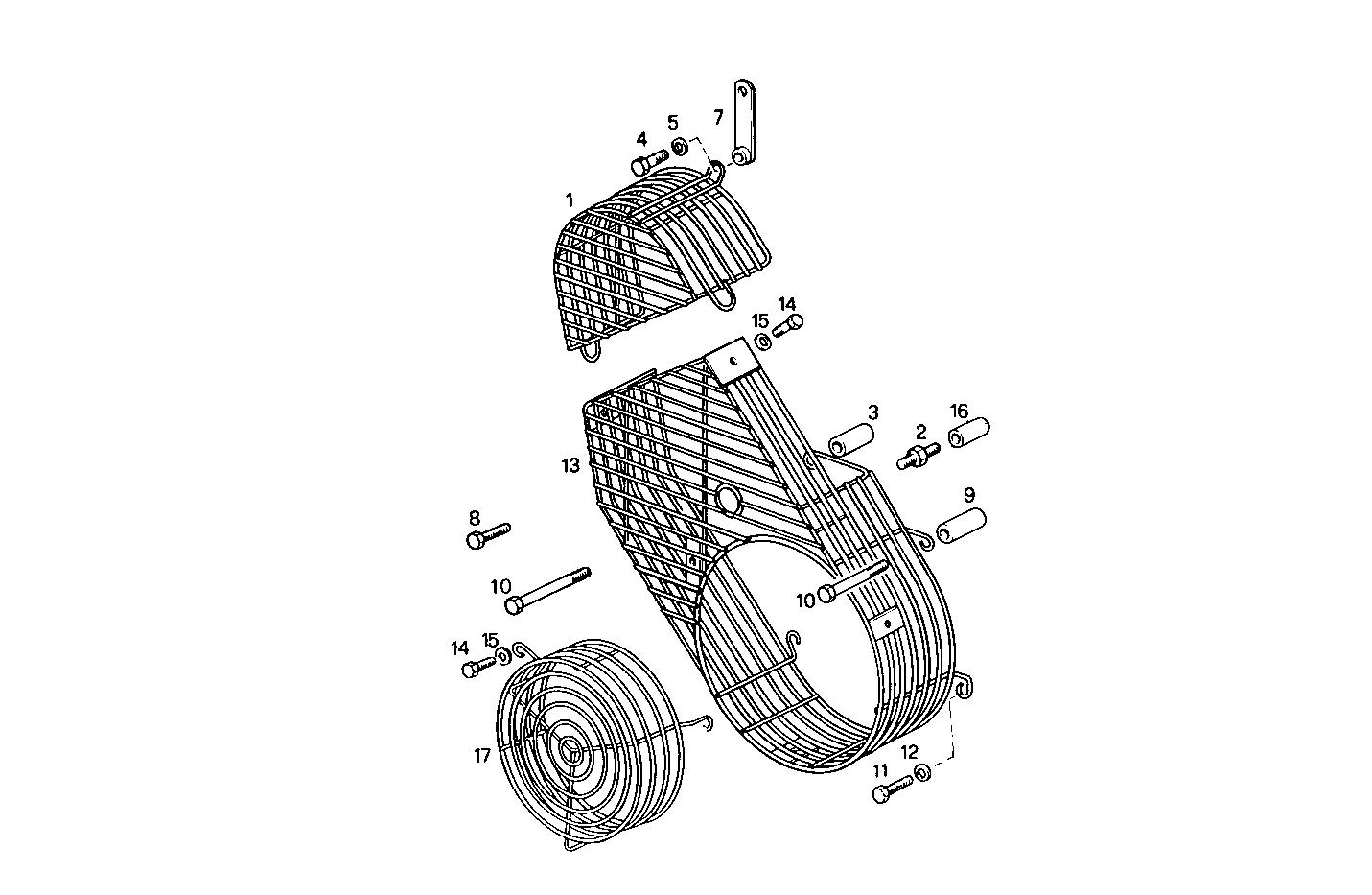

SHIELDS
8210SRi12.01 — 8210SRi12
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8010454 | PROTECTION PROTECTION | 1 | |
| 2 | 4782501 | STUD STUD | 1 | |
| 3 | 8114378 | SPACING BAR SPACING BAR | 1 | |
| 4 | 16043321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 5 | 17089774 | SPRING WASHER SPRING WASHER | 1 | |
| 7 | 4700693 | RETAINER RETAINER | 1 | |
| 8 | 11307021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 9 | 4932695 | SPACING BAR SPACING BAR | 1 | |
| 10 | 15972321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 11 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 17091074 | WASHER WASHER | 2 | |
| 13 | 8005600 | PROTECTION PROTECTION | 1 | |
| 14 | 16043124 | SCREW SCREW | 5 | |
| 15 | 17089774 | SPRING WASHER SPRING WASHER | 5 | |
| 16 | 4831069 | SPACING BAR SPACING BAR | 1 | |
| 17 | 8111821 | PROTECTION PROTECTION | 1 |
