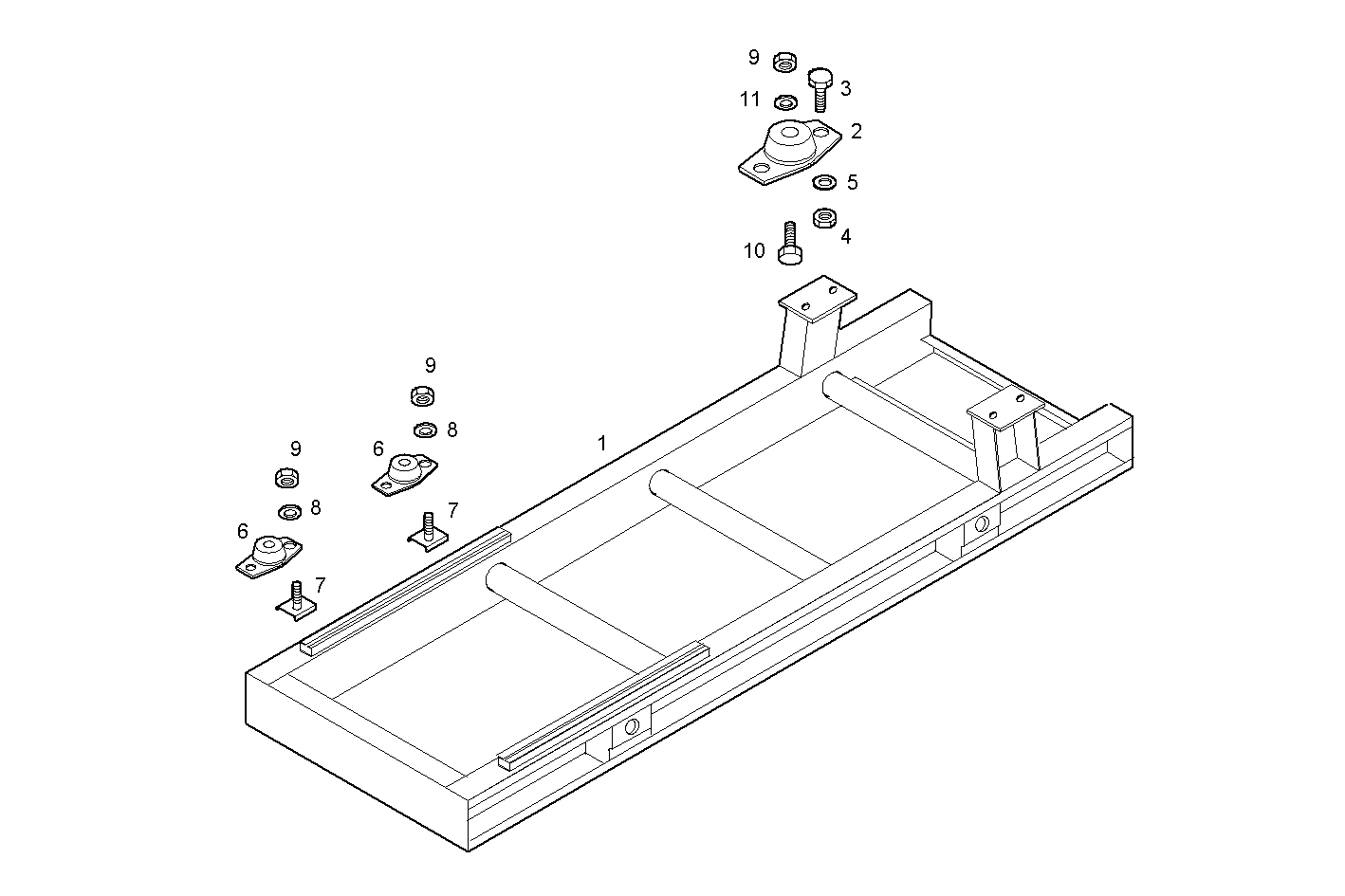

SUBBASE FOR GENERATOR UNIT
8210SRi25.00 — 8210SRi25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8019221 | SUBBSAE-SUPPORT FRAME SUBBSAE-SUPPORT FRAME | 1 | |
| 2 | 4927807 | RUBBER PAD RUBBER PAD | 2 | |
| 3 | 16614724 | SCREW SCREW | 4 | |
| 4 | 17038931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 5 | 17092374 | SPRING WASHER SPRING WASHER | 4 | |
| 6 | 4955094 | RUBBER PAD RUBBER PAD | 4 | |
| 7 | 8015168 | SCREW SCREW | 8 | |
| 8 | 17091974 | SPRING WASHER SPRING WASHER | 8 | |
| 9 | 17038721 | NUT NUT | 10 | |
| 10 | 16613124 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 2 | |
| 11 | 17091674 | WASHER WASHER | 2 |
