ELECTRONIC GOVERNOR WOODWARD
8210SRi25.00A550 — 8210SRi25

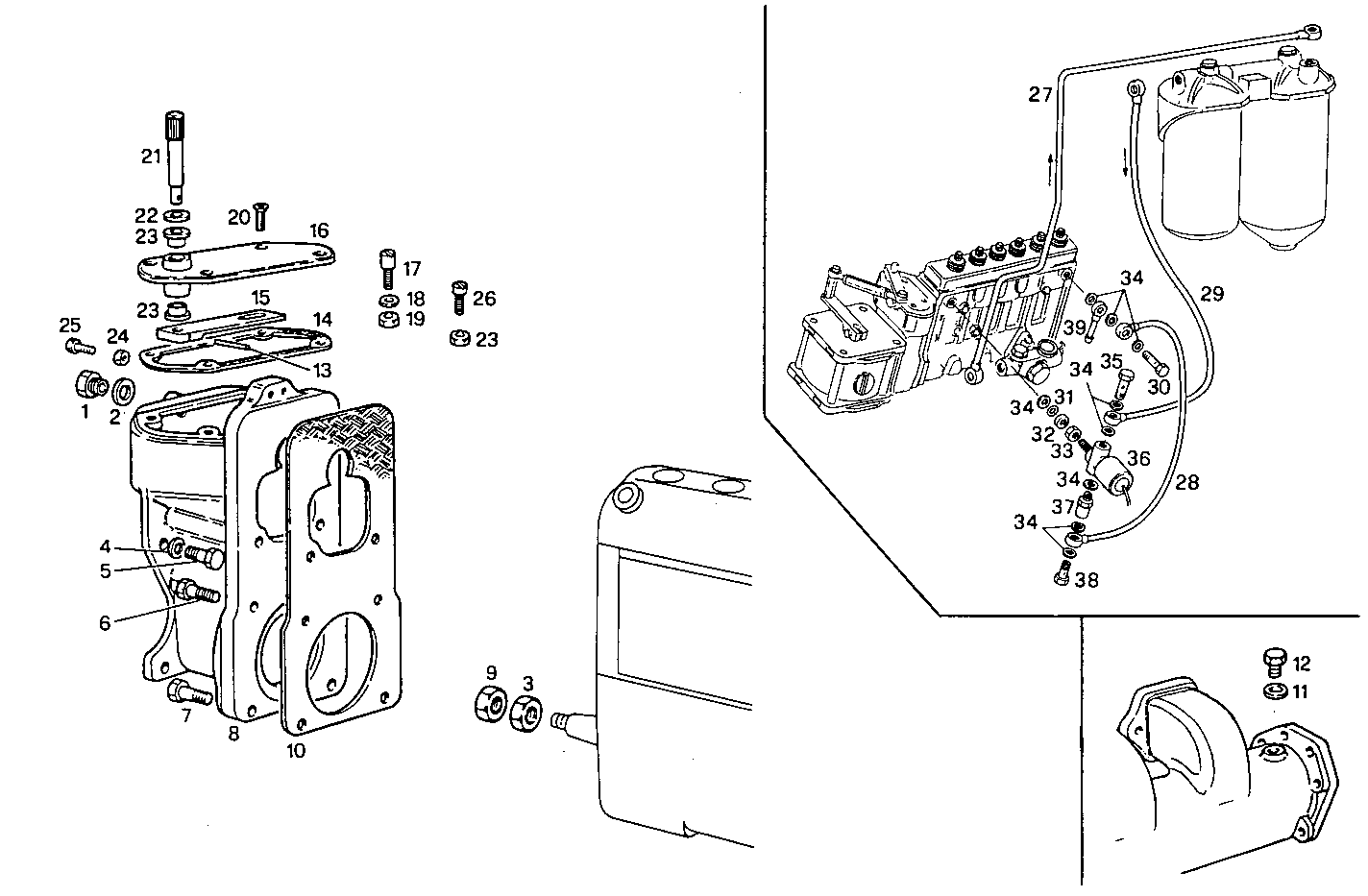

Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 16992411 | THREADED PLUG THREADED PLUG | 11 | |
| 2 | 4858609 | WASHER WASHER | 1 | |
| 3 | 10717311 | NUT NUT | 1 | |
| 4 | 17088974 | SPRING WASHER SPRING WASHER | 4 | |
| 5 | 4934404 | SCREW SCREW | 4 | |
| 6 | 14309221 | SCREW SCREW | 4 | |
| 7 | 16689134 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 8 | 8007450 | TIMINGGEAR HOUSIN TIMINGGEAR HOUSIN | 1 | |
| 9 | 8108716 | NUT NUT | 1 | |
| 10 | 8015485 | GASKET GASKET | 1 | |
| 11 | 4858607 | WASHER WASHER | 1 | |
| 12 | 10300571 | PLUG PLUG | 1 | |
| 13 | 14158570 | DOWEL PIN DOWEL PIN | 1 | |
| 14 | 8009910 | GASKET GASKET | 1 | |
| 15 | 8108601 | LEVER LEVER | 1 | |
| 16 | 8007452 | COVER COVER | 1 | |
| 17 | 8108604 | PIN PIN | 1 | |
| 18 | 17094714 | WASHER WASHER | 1 | |
| 19 | 17152621 | NUT NUT | 2 | |
| 20 | 8109360 | SCREW SCREW | 4 | |
| 21 | 8109731 | PIN PIN | 1 | |
| 22 | 8109732 | WASHER WASHER | 1 | |
| 23 | 12574011 | NUT NUT | 1 | |
| 24 | 17037721 | NUT NUT | 1 | |
| 25 | 8108715 | SCREW SCREW | 1 | |
| 26 | 17130714 | SCREW SCREW | 1 | |
| 27 | 8019000 | FUEL LINE FUEL LINE | 1 | |
| 28 | 8018344 | FUEL LINE FUEL LINE | 1 | |
| 29 | 8016443 | FUEL LINE FUEL LINE | 1 | |
| 30 | 61320123 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 31 | 17281581 | O-RING O-RING | 1 | |
| 32 | 8006339 | CAP CAP | 1 | |
| 33 | 16508711 | NUT NUT | 1 | |
| 34 | 98474308 | SEAL GASKET SEAL GASKET | 9 | |
| 35 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 36 | 8017500 | ELECTROVALVE ELECTROVALVE | 1 | |
| 37 | 8102465 | VALVE VALVE | 1 | |
| 38 | 8020609 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 39 | 79010214 | PIPE SOCKET PIPE SOCKET | 1 |
