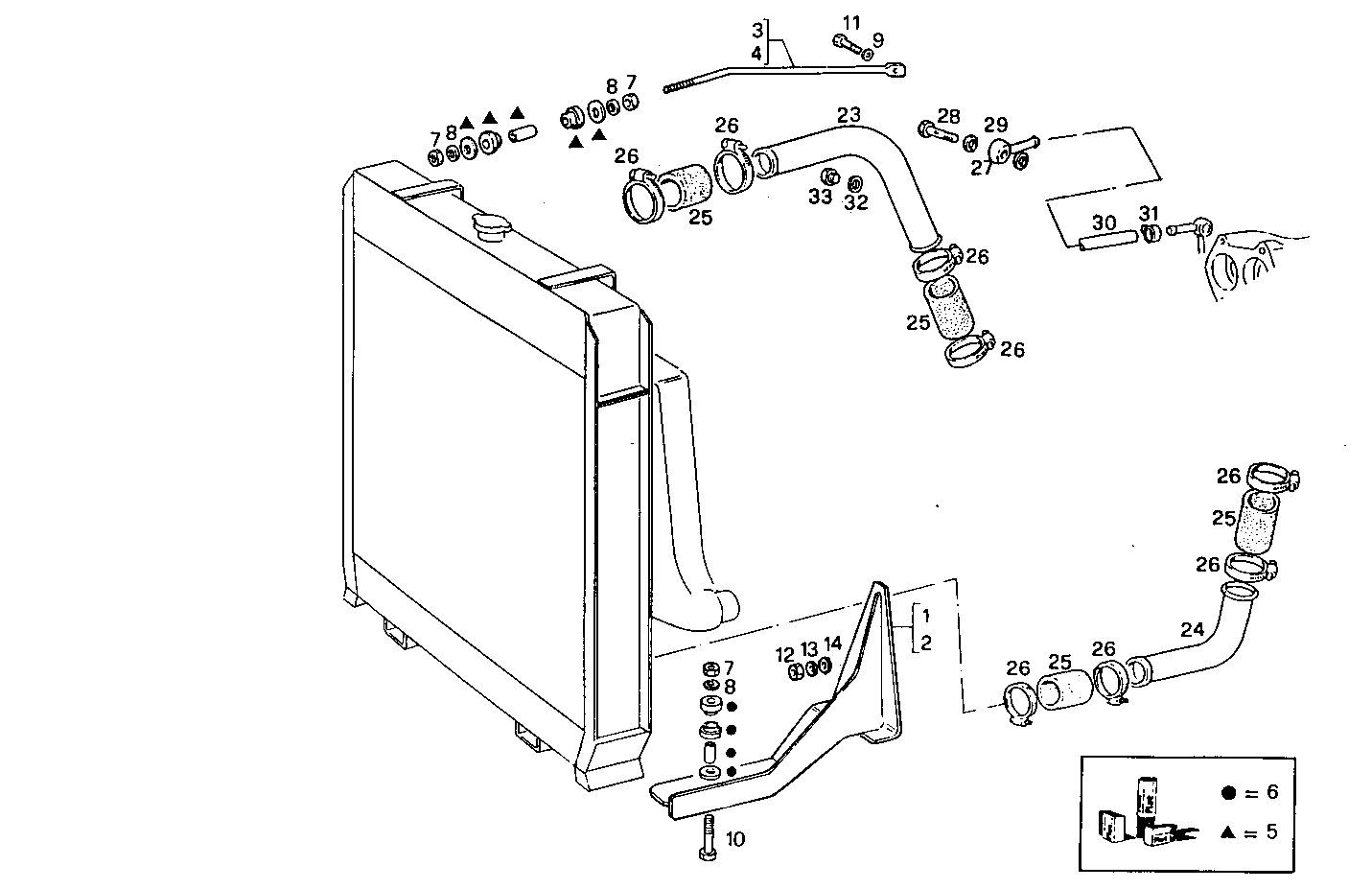

RADIATOR
8210SRi25.00A550 — 8210SRi25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107629 | SUPPORT SUPPORT | 1 | |
| 2 | 8107628 | SUPPORT SUPPORT | 1 | |
| 3 | 8107626 | TIE ROD TIE ROD | 1 | |
| 4 | 8107627 | TIE ROD TIE ROD | 1 | |
| 5 | 8090413 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 6 | 8090977 | KIT-RADIATOR KIT-RADIATOR | 1 | |
| 7 | 16101511 | HEXAGON NUT HEXAGON NUT | 6 | |
| 8 | 11190779 | SPRING WASHER SPRING WASHER | 6 | |
| 9 | 11198379 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 15541221 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 11 | 11343721 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 12 | 12164011 | HEXAGON NUT HEXAGON NUT | 6 | |
| 13 | 11194179 | SPRING WASHER SPRING WASHER | 6 | |
| 14 | 10738121 | WASHER WASHER | 6 | |
| 23 | 8109658 | WATER PIPE WATER PIPE | 1 | |
| 24 | 8107624 | WATER PIPE WATER PIPE | 1 | |
| 25 | 17745887 | RUBBER SLEEVE RUBBER SLEEVE | 4 | |
| 26 | 12174890 | CLIP CLIP | 8 | |
| 27 | 4636689 | SWIVEL COUPLING SWIVEL COUPLING | 1 | |
| 28 | 4864082 | BANJO BOLT BANJO BOLT | 1 | |
| 29 | 10296160 | SEAL GASKET SEAL GASKET | 2 | |
| 30 | 19067387 | HOSE HOSE | 1 | |
| 31 | 12179490 | CLIP CLIP | 2 | |
| 32 | 10278660 | SEAL GASKET SEAL GASKET | 1 | |
| 33 | 10300711 | LOCK PLUG LOCK PLUG | 1 |
