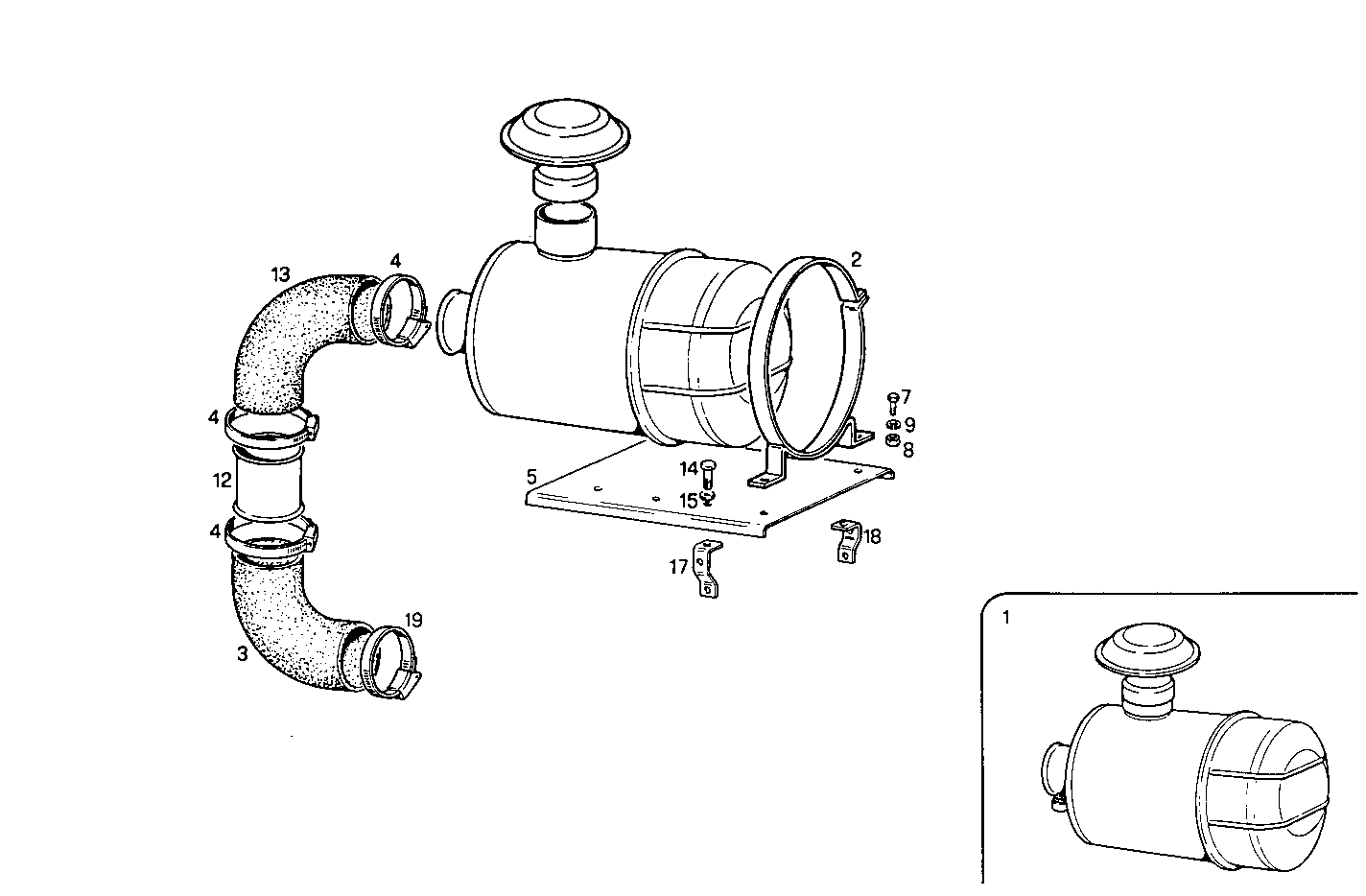

DRY AIR CLEANER
8210SRi25.01 — 8210SRi25
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107805 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8105666 | RETAINER RETAINER | 2 | |
| 3 | 8113939 | FILTER HOSE FILTER HOSE | 1 | |
| 4 | 17766093 | CLIP CLIP | 3 | |
| 5 | 8005146 | SUPPORT SUPPORT | 1 | |
| 7 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 11198479 | SPRING WASHER SPRING WASHER | 4 | |
| 12 | 8113940 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 13 | 8113938 | FILTER HOSE FILTER HOSE | 1 | |
| 14 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 11190879 | SPRING WASHER SPRING WASHER | 4 | |
| 17 | 8107870 | RETAINER RETAINER | 2 | |
| 18 | 8107871 | RETAINER RETAINER | 2 | |
| 19 | 17765793 | CLIP CLIP | 1 |
