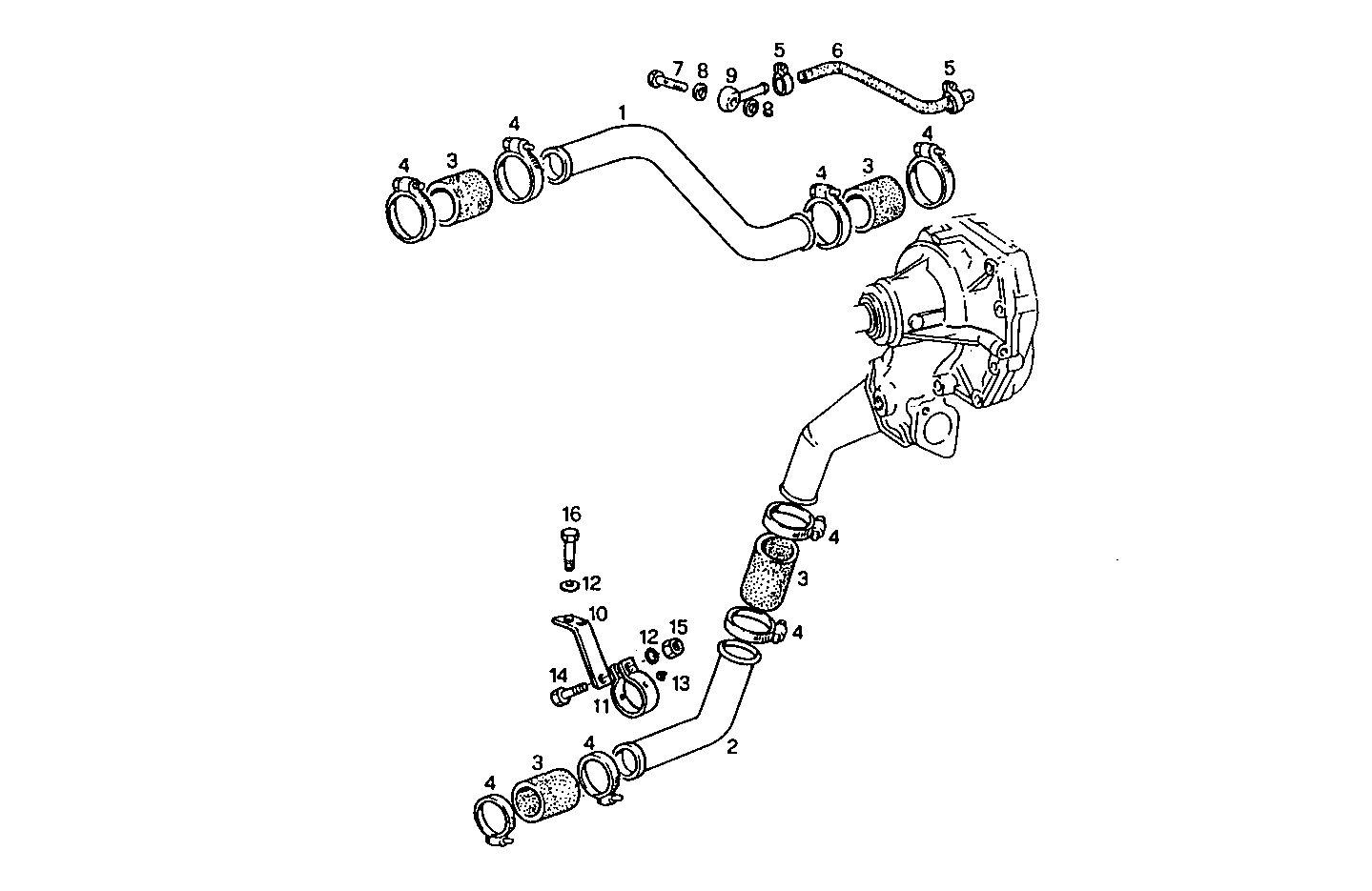

WATER LINES
8210SRi26.00A580 — 8210SRi26
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005093 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8005092 | WATER PIPE WATER PIPE | 1 | |
| 3 | 17745887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 4830091 | CLIP CLIP | 8 | |
| 5 | 12178990 | CLIP CLIP | 2 | |
| 6 | 19070287 | WATER HOSE WATER HOSE | 1 | |
| 7 | 10181717 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 8 | 10260160 | SEAL GASKET SEAL GASKET | 2 | |
| 9 | 4935134 | OIL LINE OIL LINE | 1 | |
| 10 | 8108989 | RETAINER RETAINER | 1 | |
| 11 | 4936328 | CLIP CLIP | 1 | |
| 12 | 11190579 | SPRING WASHER SPRING WASHER | 2 | |
| 13 | 4565875 | RUBBER PAD RUBBER PAD | 3 | |
| 14 | 11306921 | SCREW SCREW | 1 | |
| 15 | 12164711 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 15971821 | SCREW SCREW | 1 |
