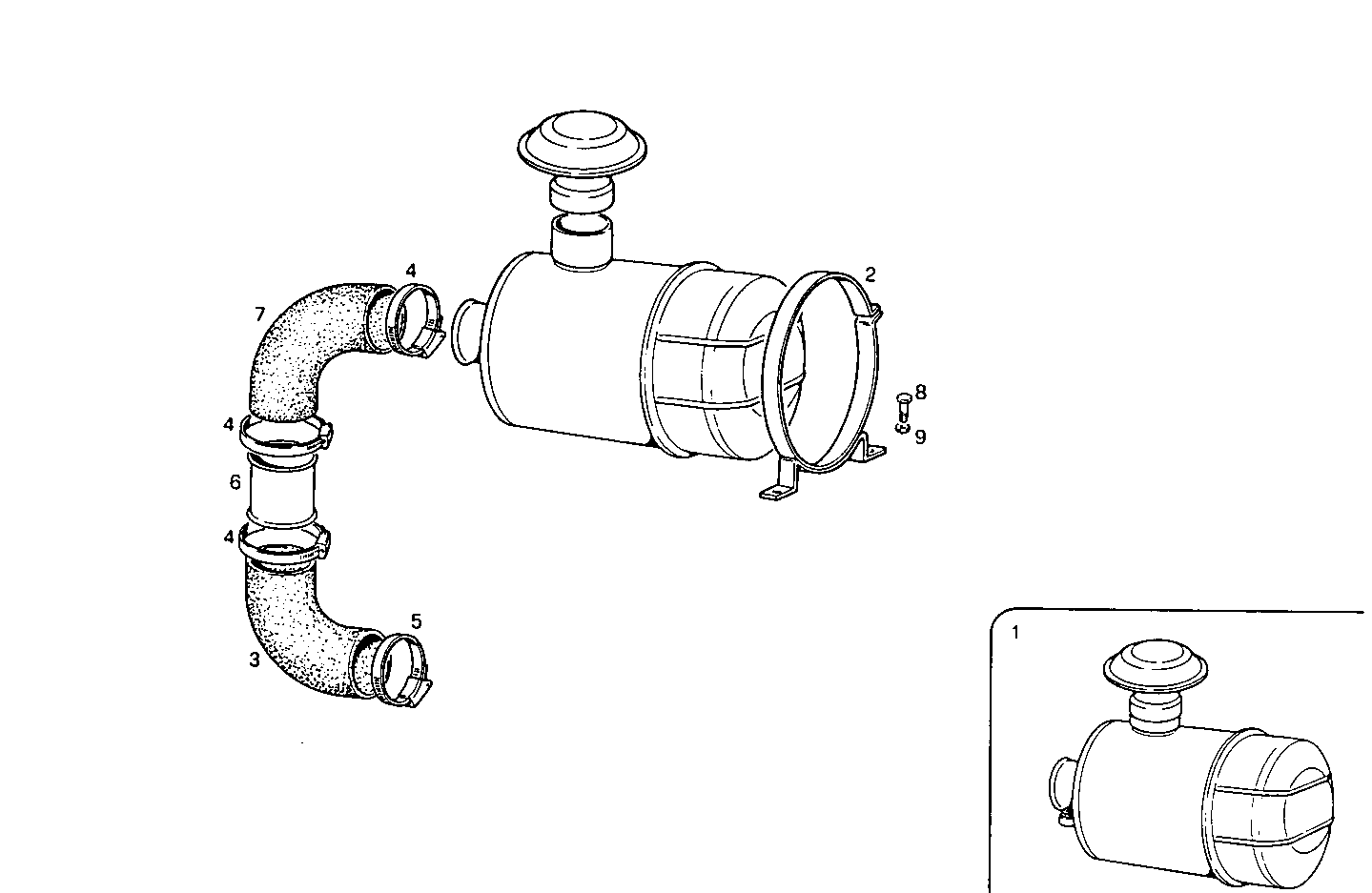

DRY AIR CLEANER
8210SRi27.00A580 — 8210SRi27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107805 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8105666 | RETAINER RETAINER | 2 | |
| 3 | 8113939 | FILTER HOSE FILTER HOSE | 1 | |
| 4 | 17766093 | CLIP CLIP | 3 | |
| 5 | 17765793 | CLIP CLIP | 1 | |
| 6 | 8113940 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 7 | 8113938 | FILTER HOSE FILTER HOSE | 1 | |
| 8 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 9 | 17091374 | SPRING WASHER SPRING WASHER | 4 |
