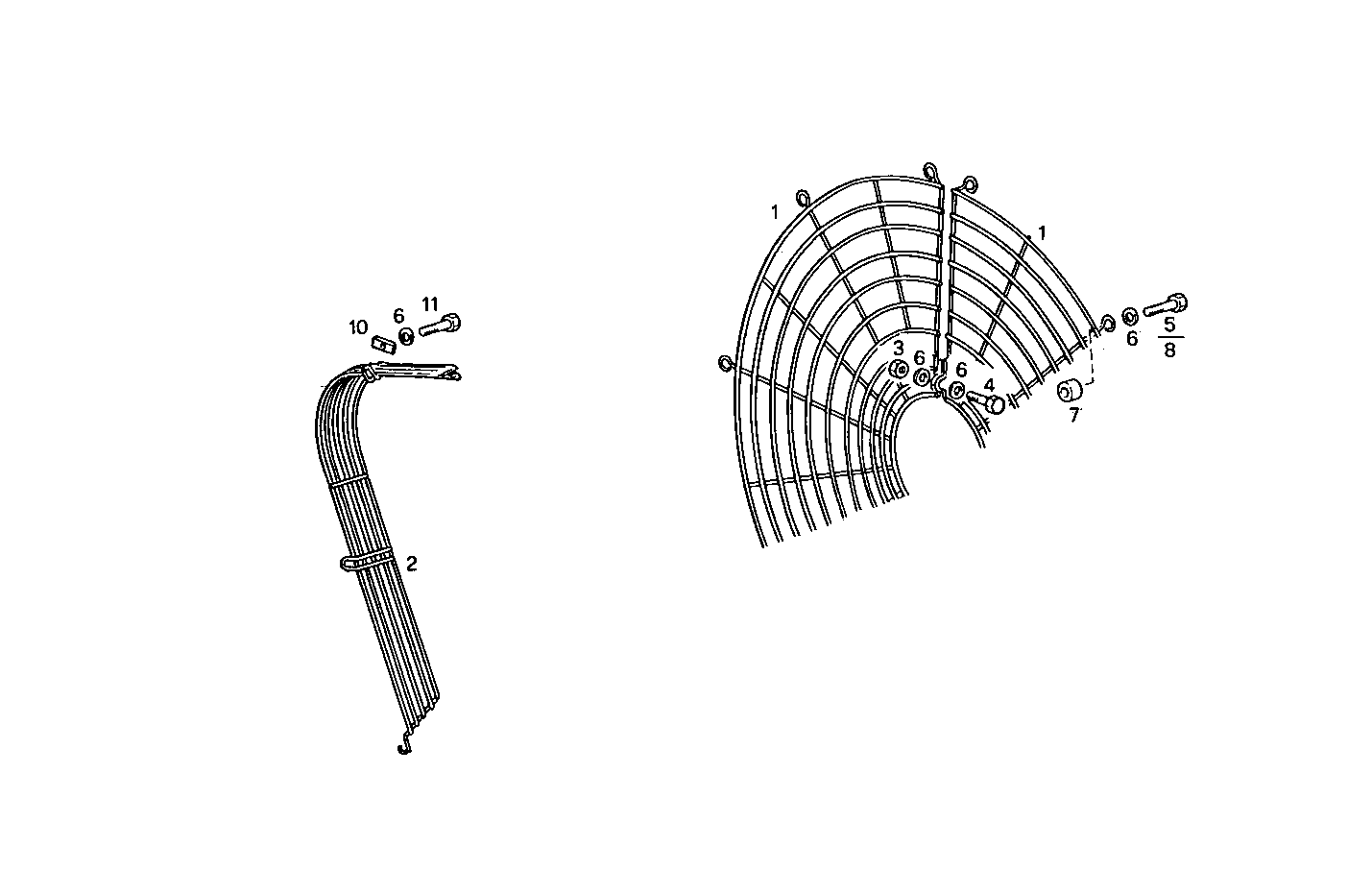

SHIELDS
8210SRi27.00A580 — 8210SRi27
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8108082 | PROTECTION PROTECTION | 2 | |
| 2 | 8006912 | PROTECTION PROTECTION | 1 | |
| 3 | 17037931 | HEXAGON NUT HEXAGON NUT | 6 | |
| 5 | 16605824 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 17089774 | SPRING WASHER SPRING WASHER | 18 | |
| 7 | 17816414 | SPACING BAR SPACING BAR | 10 | |
| 8 | 16605924 | SCREW SCREW | 4 | |
| 10 | 8101217 | PLATE PLATE | 4 | |
| 11 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 4 |
