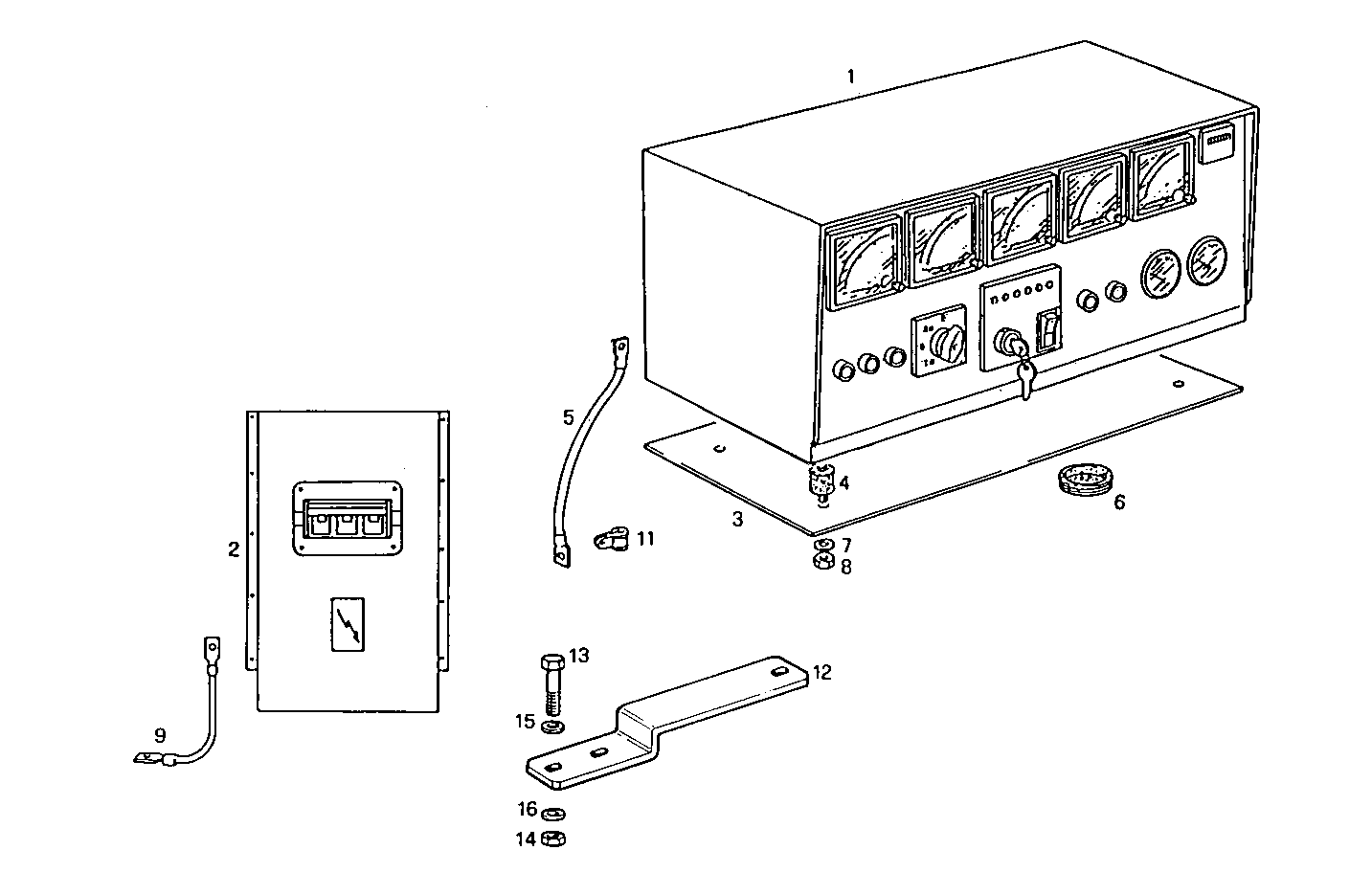

MANUAL CONTROL BOARD FOR ELECT. MACHINE
8210SRi28.00 — 8210SRi28
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023928 | CONTROL BOARD ASSY CONTROL BOARD ASSY | 1 | |
| 2 | 8023932 | SWITCH SWITCH | 1 | |
| 3 | 8019260 | COVER COVER | 1 | |
| 4 | 8104155 | DOWEL DOWEL | 4 | |
| 5 | 8006993 | EARTH WIRE EARTH WIRE | 1 | |
| 6 | 8113214 | INSULATING RING INSULATING RING | 1 | |
| 7 | 17088474 | WASHER WASHER | 8 | |
| 8 | 17037821 | HEXAGON NUT HEXAGON NUT | 8 | |
| 9 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 11 | 17314890 | CLIP CLIP | 3 | |
| 12 | 8021249 | RETAINER RETAINER | 1 | |
| 13 | 16610124 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 17038421 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 17091074 | WASHER WASHER | 1 | |
| 16 | 17095204 | WASHER WASHER | 1 |
