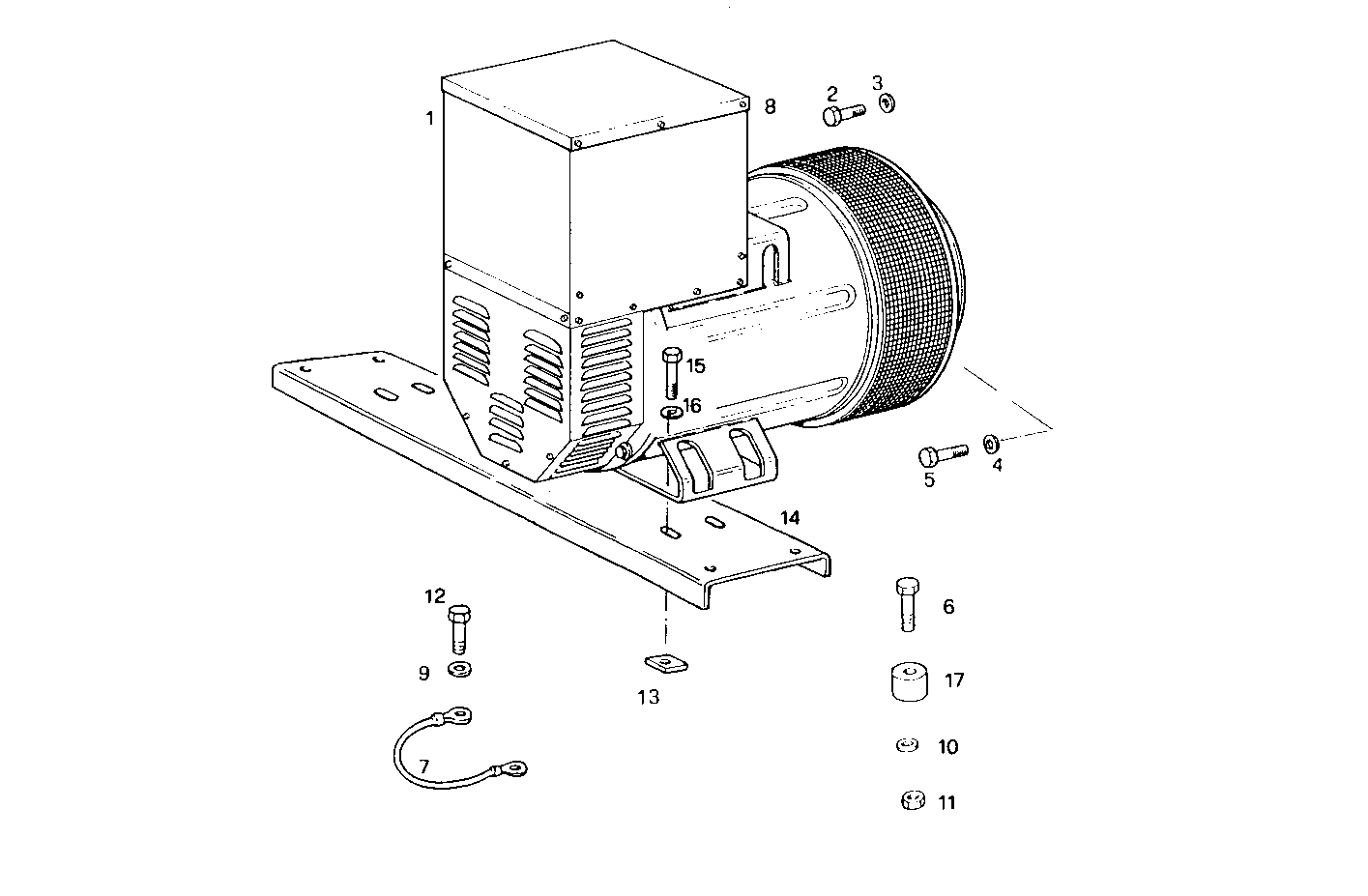

SINGLE BEARING ELECTRIC MACHINE
8210SRi28.00 — 8210SRi28
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 504085562 | ELECTRIC MACHINE ELECTRIC MACHINE | 1 | |
| 2 | 15004624 | HEXAGON BOLT HEXAGON BOLT | 12 | |
| 3 | 17090174 | SPRING WASHER SPRING WASHER | 13 | |
| 4 | 17091174 | SPRING WASHER SPRING WASHER | 8 | |
| 5 | 15540434 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 6 | 16621024 | SCREW SCREW | 4 | |
| 7 | 8110852 | EARTH WIRE EARTH WIRE | 1 | |
| 8 | 17098590 | RIVET RIVET | 4 | |
| 9 | 16665604 | WASHER WASHER | 1 | |
| 10 | 17093174 | WASHER WASHER | 4 | |
| 11 | 17039721 | HEXAGON NUT HEXAGON NUT | 4 | |
| 12 | 16607434 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 8019231 | PLATE PLATE | 2 | |
| 14 | 8019196 | SUPPORT SUPPORT | 1 | |
| 15 | 16617625 | SCREW SCREW | 2 | |
| 16 | 17092774 | WASHER WASHER | 2 | |
| 17 | 8016970 | SPACING BAR SPACING BAR | 4 |
