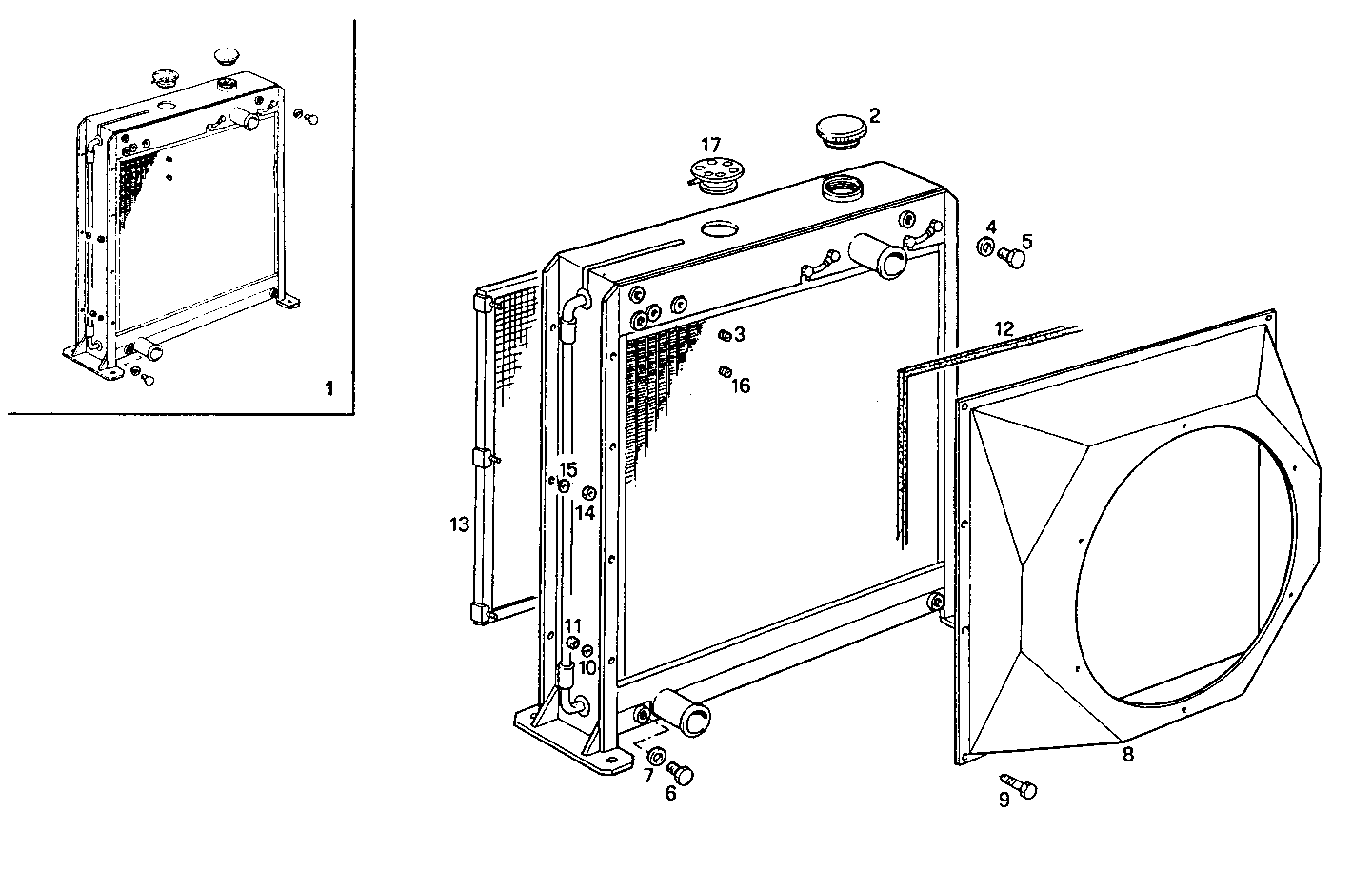

RADIATOR
8210SRi40.00 — 8210SRi40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8021828 | WATER RADIATOR WATER RADIATOR | 1 | |
| 2 | 8017558 | RADIATOR PLUG RADIATOR PLUG | 1 | |
| 2 | 8025146 | PLUG PLUG | 1 | |
| 3 | 8113913 | PLUG PLUG | 1 | |
| 4 | 11270460 | GASKET GASKET | 1 | |
| 5 | 8105096 | PLUG PLUG | 1 | |
| 6 | 16992311 | LOCK PLUG LOCK PLUG | 2 | |
| 7 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 8 | 8019658 | AIR HOOD AIR HOOD | 1 | |
| 9 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 10 | 17089474 | SPRING WASHER SPRING WASHER | 8 | |
| 11 | 17037931 | HEXAGON NUT HEXAGON NUT | 8 | |
| 12 | 8089128 | GASKET GASKET | 1 | |
| 13 | 8032347 | GRILLE GRILLE | 1 | |
| 14 | 17037921 | NUT NUT | 6 | |
| 15 | 17089774 | SPRING WASHER SPRING WASHER | 6 | |
| 16 | 8113914 | PLUG PLUG | 1 | |
| 17 | 8032345 | RADIATOR PLUG RADIATOR PLUG | 1 |
