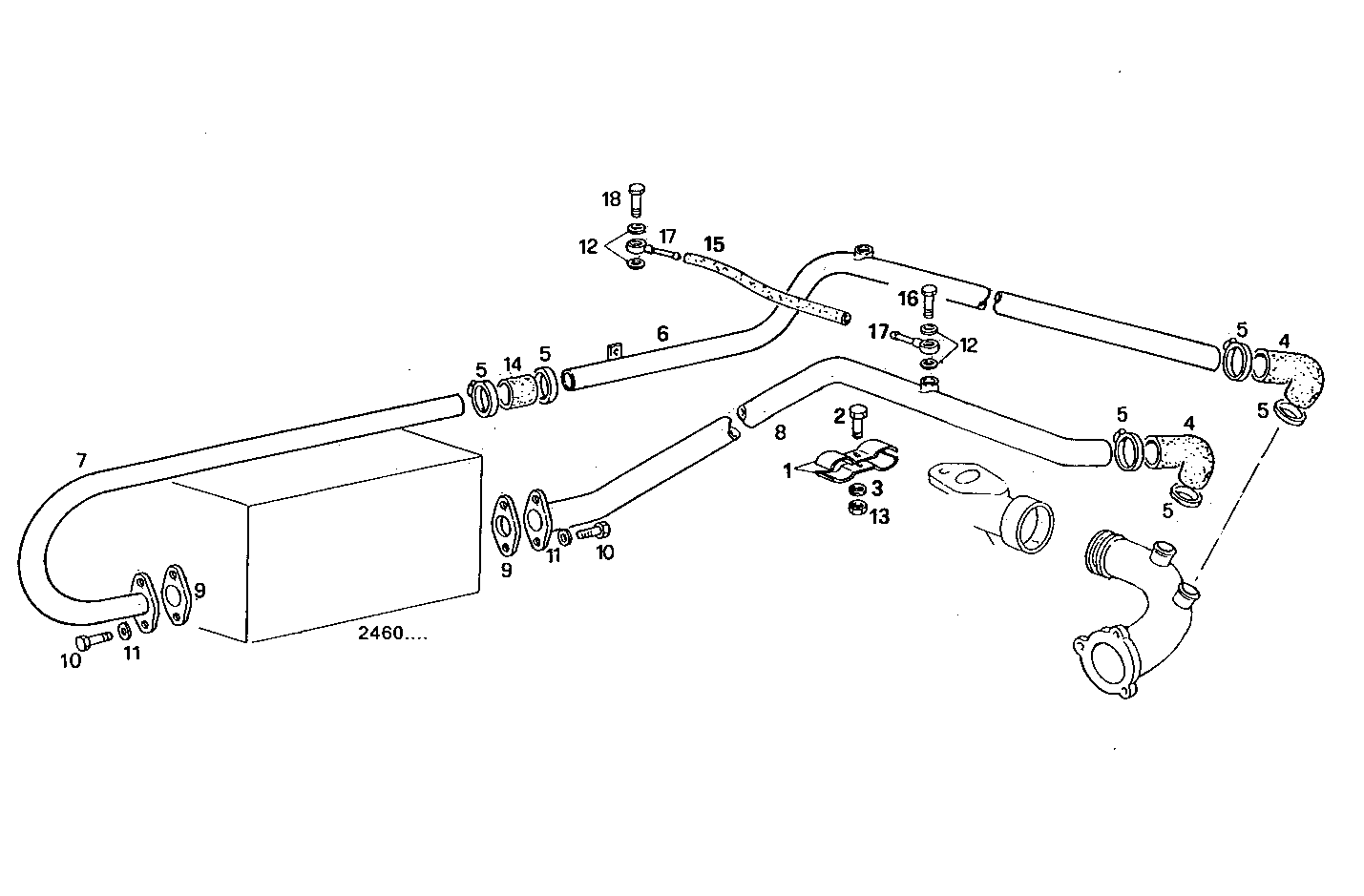

WATER LINES
8210SRi40.00 — 8210SRi40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4801128 | RETAINER RETAINER | 2 | |
| 2 | 16606024 | SCREW SCREW | 1 | |
| 3 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 4 | 4644083 | WATER HOSE WATER HOSE | 2 | |
| 5 | 17764891 | CLIP CLIP | 6 | |
| 6 | 8028033 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8107267 | WATER PIPE WATER PIPE | 1 | |
| 8 | 8028032 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8103540 | GASKET GASKET | 2 | |
| 10 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 11 | 17091074 | WASHER WASHER | 4 | |
| 12 | 4858607 | WASHER WASHER | 6 | |
| 13 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 14 | 98443283 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 15 | 8018769 | FUEL LINE FUEL LINE | 2 | |
| 16 | 8012607 | SCREW CONNECTOR SCREW CONNECTOR | 2 | |
| 17 | 98405514 | PIPE SOCKET PIPE SOCKET | 2 | |
| 18 | 4864082 | BANJO BOLT BANJO BOLT | 1 |
