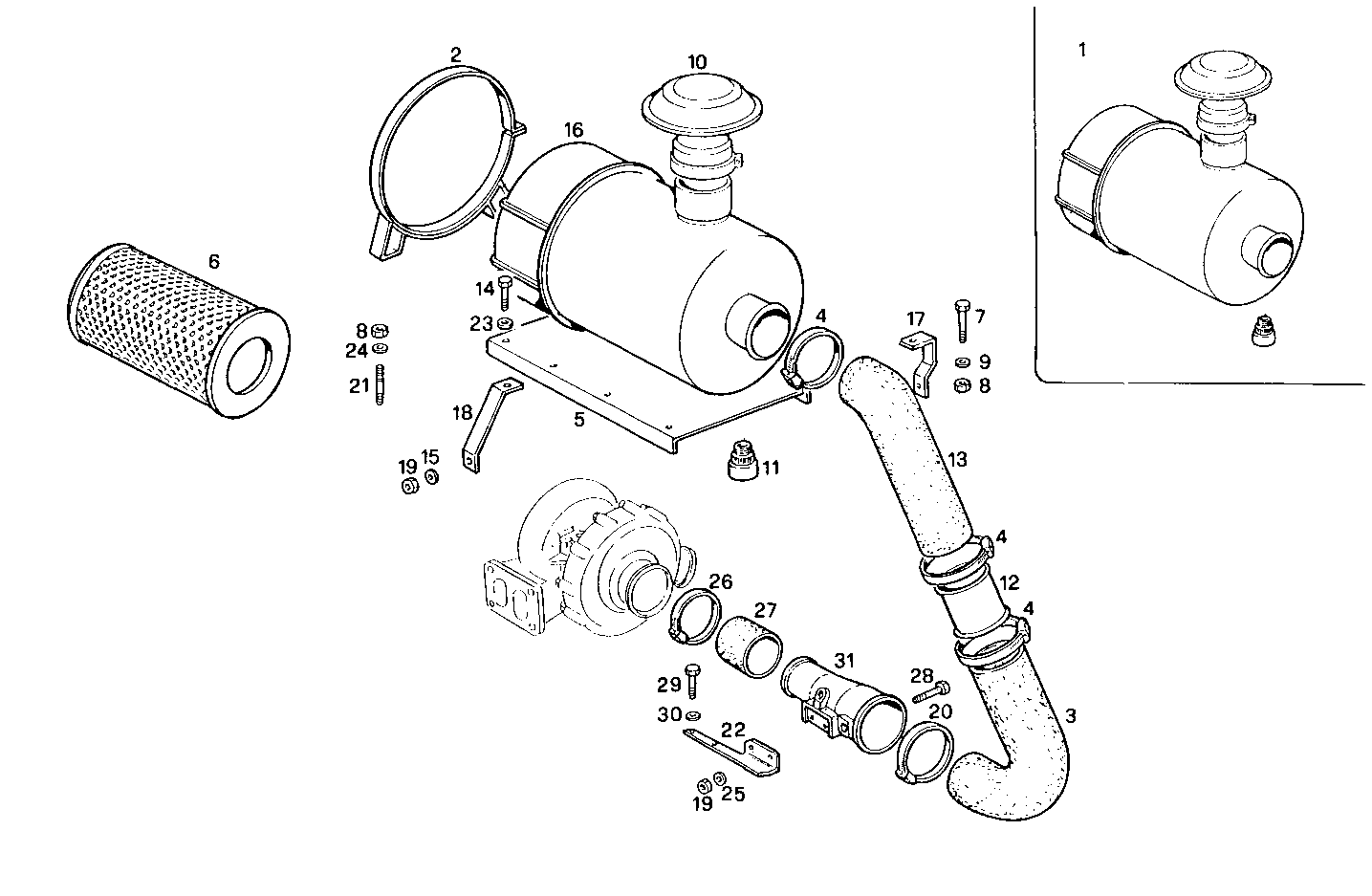

DRY AIR CLEANER
8210SRM36.10 — 8210SRM36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8107808 | AIR CLEANER AIR CLEANER | 1 | |
| 2 | 8105666 | RETAINER RETAINER | 2 | |
| 3 | 8113939 | FILTER HOSE FILTER HOSE | 1 | |
| 4 | 17766093 | CLIP CLIP | 3 | |
| 5 | 8005146 | SUPPORT SUPPORT | 1 | |
| 6 | 1904550 | AIR FILTER ELEMENT AIR FILTER ELEMENT | 1 | |
| 7 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 8 | 12164711 | HEXAGON NUT HEXAGON NUT | 4 | |
| 9 | 11198479 | SPRING WASHER SPRING WASHER | 4 | |
| 10 | 8105664 | COVER COVER | 1 | |
| 11 | 2427063 | AIR PRESSURE GAUGE AIR PRESSURE GAUGE | 1 | |
| 12 | 8113940 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 | |
| 13 | 8113938 | FILTER HOSE FILTER HOSE | 1 | |
| 14 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 11198179 | WASHER WASHER | 2 | |
| 16 | 8105663 | AIR CLEANER AIR CLEANER | 1 | |
| 17 | 8114110 | RETAINER RETAINER | 2 | |
| 18 | 8114102 | RETAINER RETAINER | 1 | |
| 19 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 20 | 17765793 | CLIP CLIP | 1 | |
| 21 | 13449321 | STUD STUD | 2 | |
| 22 | 8113937 | RETAINER RETAINER | 1 | |
| 23 | 11190879 | SPRING WASHER SPRING WASHER | 4 | |
| 24 | 11190579 | SPRING WASHER SPRING WASHER | 2 | |
| 25 | 11198079 | SPRING WASHER SPRING WASHER | 2 | |
| 26 | 8005839 | CLIP CLIP | 2 | |
| 27 | 8030531 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 28 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 29 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 30 | 11198079 | SPRING WASHER SPRING WASHER | 2 | |
| 31 | 4817877 | AIR PIPE/DUCT AIR PIPE/DUCT | 1 |
