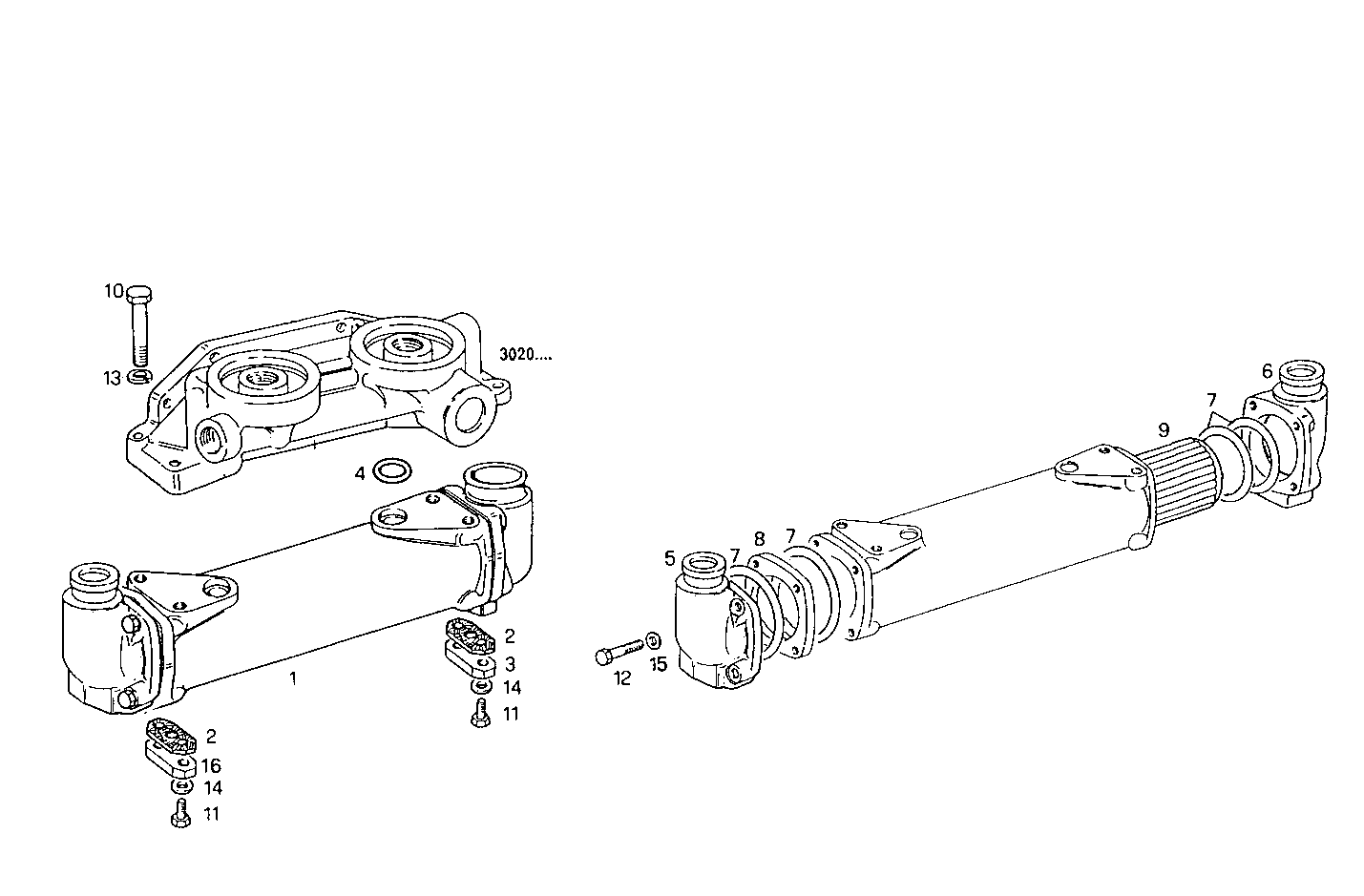

OIL - WATER HEAT EXCHANGER
8210SRM36.10 — 8210SRM36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4803814 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 4513714 | GASKET GASKET | 2 | |
| 3 | 593763 | FLANGE FLANGE | 1 | |
| 4 | 17282581 | O-RING O-RING | 2 | |
| 5 | 7984211 | COVER COVER | 1 | |
| 6 | 7984210 | COVER COVER | 1 | |
| 7 | 7984208 | O-SEAL O-SEAL | 4 | |
| 8 | 7984207 | GASKET GASKET | 1 | |
| 9 | 7984209 | OIL COOLER OIL COOLER | 1 | |
| 10 | 11307024 | SCREW SCREW | 4 | |
| 11 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 16043924 | SCREW SCREW | 8 | |
| 13 | 11198374 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 11198074 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 11193874 | WASHER WASHER | 8 | |
| 16 | 4872744 | COVER COVER | 1 |
