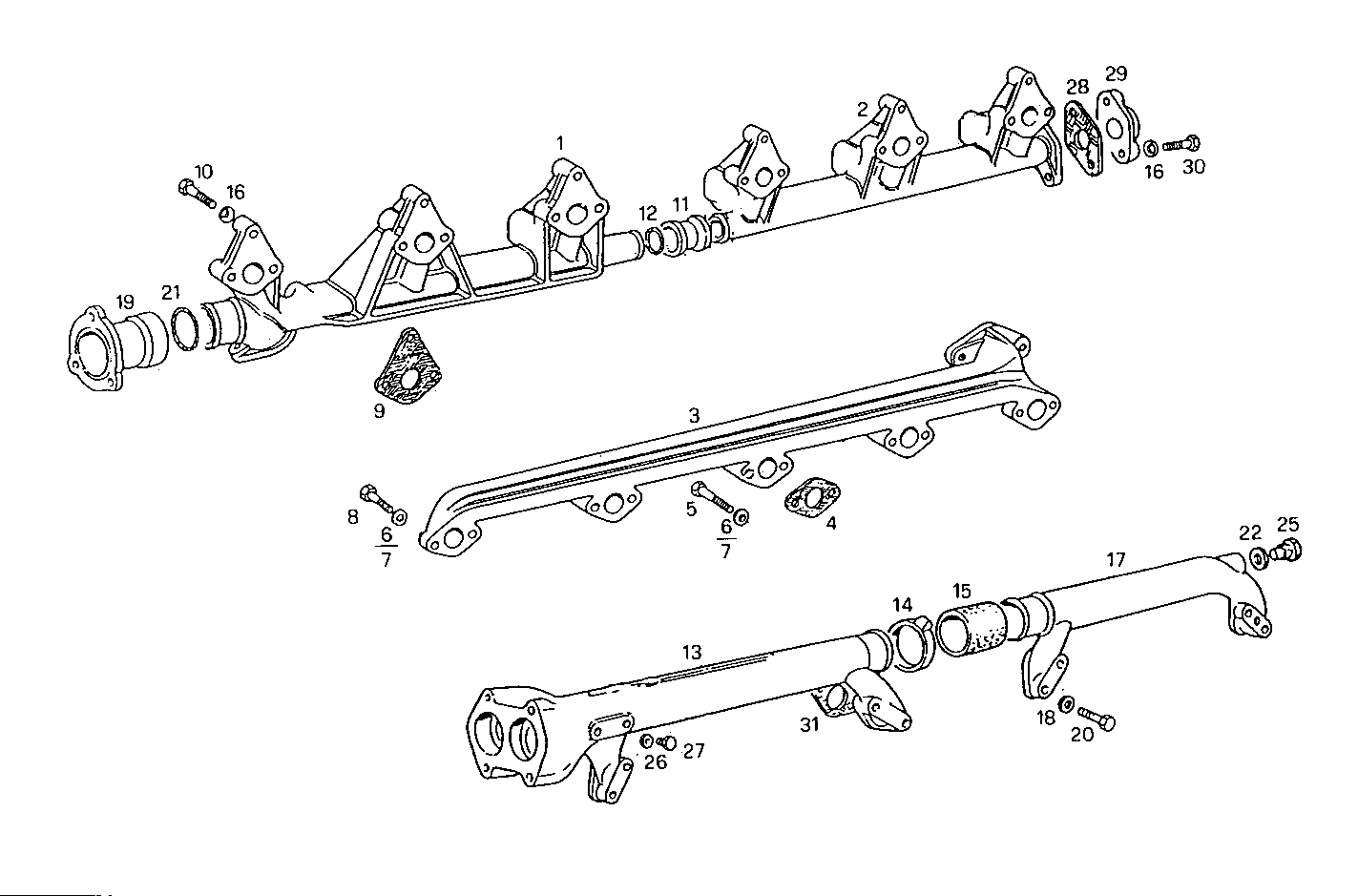

WATER LINES
8210SRM36.10 — 8210SRM36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4778954 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 2 | 4762646 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 3 | 4641230 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 4 | 4741300 | FLAT ENGINE GKT FLAT ENGINE GKT | 5 | |
| 5 | 16043924 | SCREW SCREW | 3 | |
| 6 | 4852210 | WASHER WASHER | 10 | |
| 7 | 4852211 | WASHER WASHER | 10 | |
| 8 | 16606024 | SCREW SCREW | 7 | |
| 9 | 4852099 | FLAT ENGINE GKT FLAT ENGINE GKT | 6 | |
| 10 | 16605924 | SCREW SCREW | 18 | |
| 11 | 4762647 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 12 | 14463281 | O-RING O-RING | 4 | |
| 13 | 98427299 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 14 | 17764992 | CLIP CLIP | 2 | |
| 15 | 4765377 | TURBOCHARGER HOSE TURBOCHARGER HOSE | 1 | |
| 16 | 11198074 | SPRING WASHER SPRING WASHER | 20 | |
| 17 | 4616590 | WATER MANIFOLD WATER MANIFOLD | 1 | |
| 18 | 11198379 | SPRING WASHER SPRING WASHER | 8 | |
| 19 | 4799657 | WATER PIPE WATER PIPE | 1 | |
| 20 | 15888734 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 21 | 14471481 | O-RING O-RING | 1 | |
| 22 | 10260360 | SEAL GASKET SEAL GASKET | 1 | |
| 25 | 4871068 | PLUG PLUG | 1 | |
| 26 | 10257460 | SEAL GASKET SEAL GASKET | 1 | |
| 27 | 10304911 | THREADED PLUG THREADED PLUG | 1 | |
| 28 | 874348 | GASKET GASKET | 1 | |
| 29 | 4641233 | FLANGE FLANGE | 1 | |
| 30 | 16043821 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 31 | 4852097 | FLAT ENGINE GKT FLAT ENGINE GKT | 4 |
