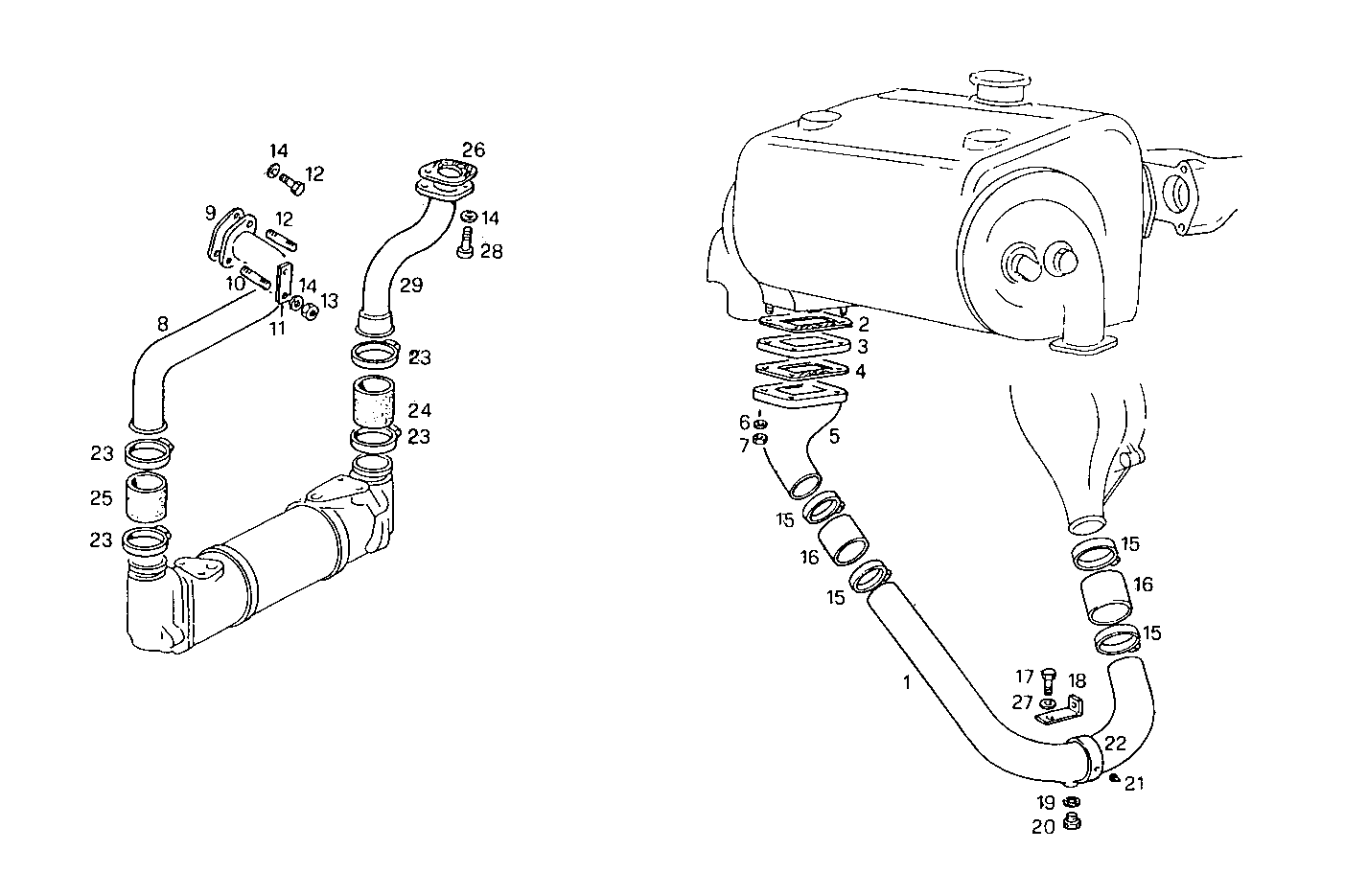

WATER LINES
8210SRM36.10 — 8210SRM36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110635 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8102754 | GASKET GASKET | 1 | |
| 3 | 8102752 | SPACING BAR SPACING BAR | 1 | |
| 4 | 4918857 | GASKET GASKET | 1 | |
| 5 | 8108931 | WATER PIPE WATER PIPE | 1 | |
| 6 | 17089474 | SPRING WASHER SPRING WASHER | 4 | |
| 7 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 8 | 4709713 | WATER PIPE WATER PIPE | 1 | |
| 9 | 4863951 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 10 | 8110709 | STUD STUD | 1 | |
| 11 | 8110710 | RETAINER RETAINER | 1 | |
| 12 | 16044021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 17037931 | HEXAGON NUT HEXAGON NUT | 3 | |
| 14 | 11194079 | SPRING WASHER SPRING WASHER | 2 | |
| 15 | 12177290 | CLIP CLIP | 4 | |
| 16 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 17 | 15970521 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 8110973 | RETAINER RETAINER | 1 | |
| 19 | 10296160 | SEAL GASKET SEAL GASKET | 1 | |
| 20 | 10300511 | LOCK PLUG LOCK PLUG | 1 | |
| 21 | 4568427 | RUBBER PAD RUBBER PAD | 3 | |
| 22 | 4936328 | CLIP CLIP | 1 | |
| 23 | 17764993 | CLIP CLIP | 4 | |
| 24 | 8110206 | WATER HOSE WATER HOSE | 1 | |
| 25 | 8110207 | WATER HOSE WATER HOSE | 1 | |
| 26 | 4547637 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 27 | 11198379 | SPRING WASHER SPRING WASHER | 1 | |
| 28 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 29 | 98428450 | WATER PIPE WATER PIPE | 1 | |
| 30 | 11198079 | SPRING WASHER SPRING WASHER | 2 |
