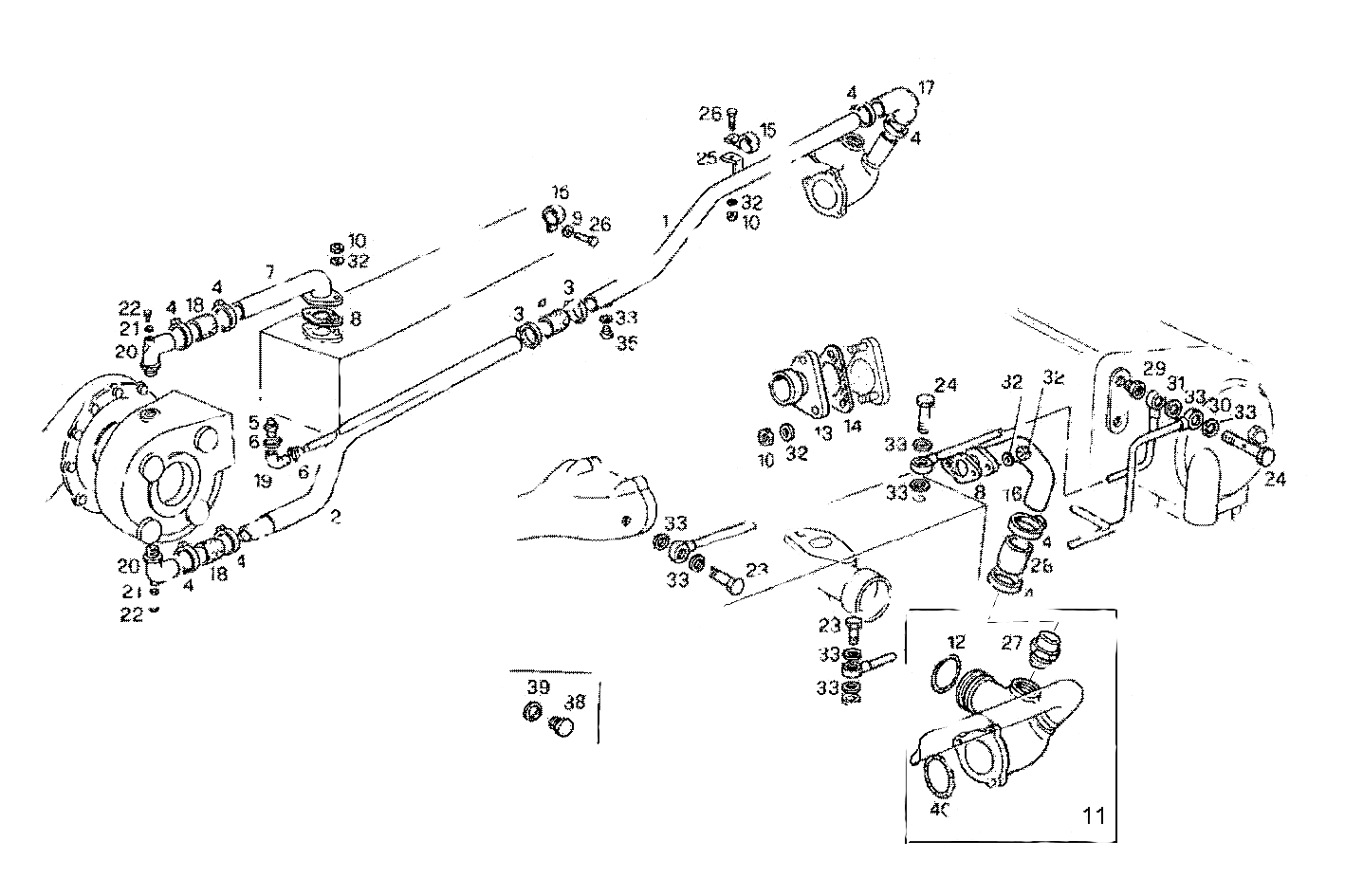

WATER LINES

8210SRM36.11 — 8210SRM36

Parts List

#	Part No	Name / Description	Qty
1	8110620	WATER PIPE WATER PIPE	1
2	8110621	WATER PIPE WATER PIPE	1
3	8110617	RUBBER SLEEVE RUBBER SLEEVE	1
4	12177090	CLIP CLIP	10
5	8024797	PIPE SOCKET PIPE SOCKET	1
5	8114298	PIPE SOCKET PIPE SOCKET	1
6	17764592	CLIP CLIP	2
6	17764593	CLIP CLIP	1
6	17764693	CLIP CLIP	1
7	8109301	WATER PIPE WATER PIPE	1
8	4918835	GASKET GASKET	2
9	11194079	SPRING WASHER SPRING WASHER	2
10	17037931	HEXAGON NUT HEXAGON NUT	4
11	8110450	WATER PIPE WATER PIPE	1
12	14471581	O-RING O-RING	1
13	8110234	FLANGE FLANGE	1
14	4533087	FLAT ENGINE GKT FLAT ENGINE GKT	1
15	4928851	CLIP CLIP	2
16	8110631	WATER PIPE WATER PIPE	1
17	8110497	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
18	4778438	RUBBER SLEEVE RUBBER SLEEVE	2
19	4780206	RUBBER SLEEVE RUBBER SLEEVE	1
19	99452230	RUBBER SLEEVE RUBBER SLEEVE	1
20	8110480	PIPE SOCKET PIPE SOCKET	2
21	10298360	SEAL GASKET SEAL GASKET	2
22	11903140	PLUG PLUG	2
23	4864082	BANJO BOLT BANJO BOLT	2
24	4930504	SCREW CONNECTOR SCREW CONNECTOR	1
25	8100819	RETAINER RETAINER	1
26	16605524	HEXAGON BOLT HEXAGON BOLT	2
27	8110595	PIPE SOCKET PIPE SOCKET	1
28	8110724	RUBBER SLEEVE RUBBER SLEEVE	1
29	4927823	SCREW CONNECTOR SCREW CONNECTOR	1
30	8111157	WATER PIPE WATER PIPE	1
31	8110657	WATER PIPE WATER PIPE	1
32	11194079	SPRING WASHER SPRING WASHER	7
33	10296160	SEAL GASKET SEAL GASKET	8
34	16605624	HEXAGON BOLT HEXAGON BOLT	2
34	4629165	SCREW CONNECTOR SCREW CONNECTOR	1
35	10300511	LOCK PLUG LOCK PLUG	1
38	10300940	PLUG PLUG	2
39	10260060	SEAL GASKET SEAL GASKET	2
40	14464781	O-RING O-RING	1
