8210SRM36/8210SRM36.12/SENDER UNITS FOR GENERATOR UNIT

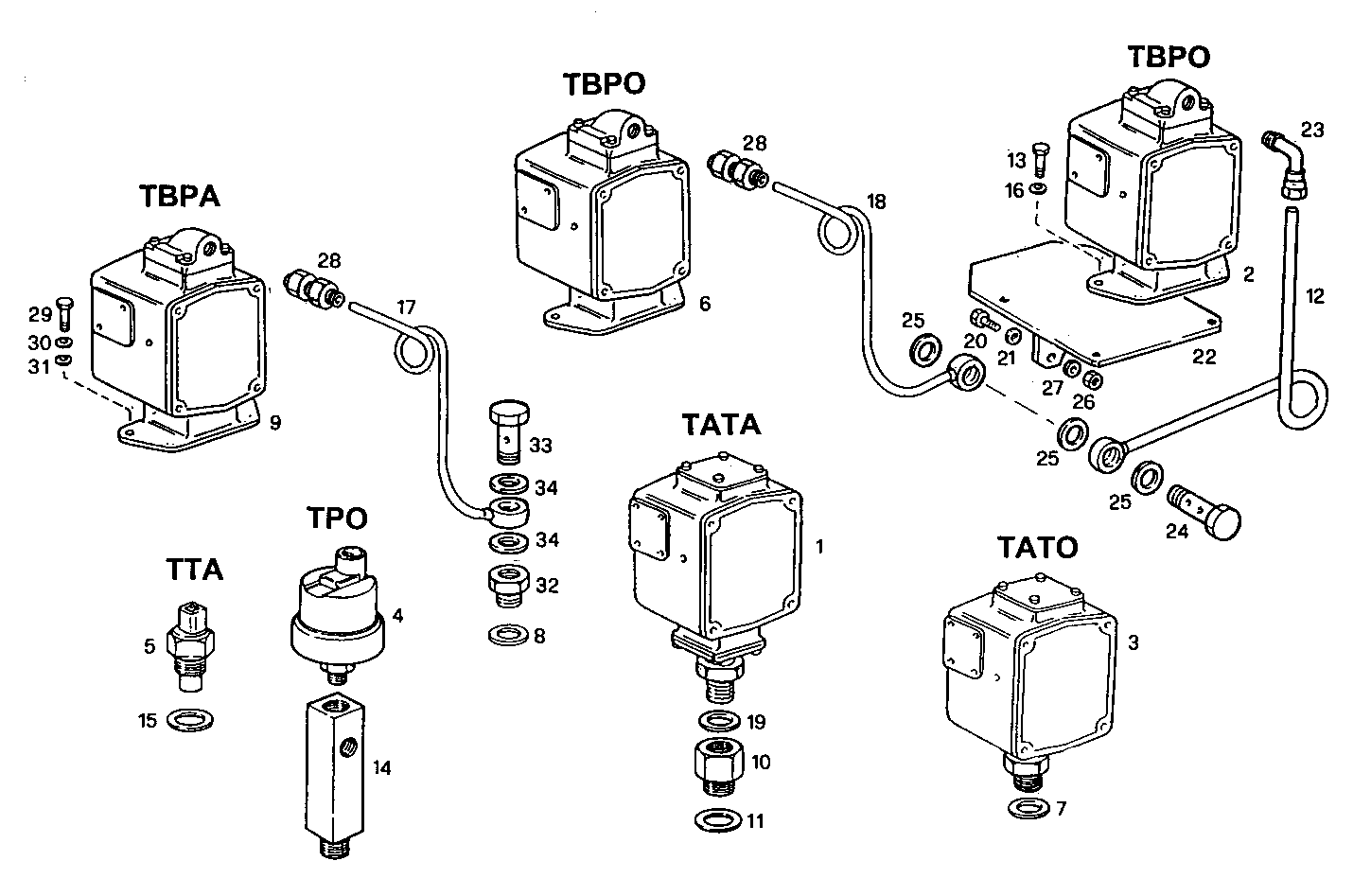

SENDER UNITS FOR GENERATOR UNIT

8210SRM36.12 — 8210SRM36

Parts List

#	Part No	Name / Description	Qty
1	8110740	TRANSMITTER TRANSMITTER	1
2	8111452	TRANSMITTER TRANSMITTER	1
3	8111450	TRANSMITTER TRANSMITTER	1
4	8100417	TRANSMITTER TRANSMITTER	2
5	8100418	TRANSMITTER TRANSMITTER	2
6	8111451	TRANSMITTER TRANSMITTER	1
7	11271460	GASKET GASKET	1
8	4858609	WASHER WASHER	1
9	8015707	TRANSMITTER TRANSMITTER	1
10	8021213	PIPE SOCKET PIPE SOCKET	1
11	98429281	SEAL GASKET SEAL GASKET	1
12	8023724	OIL LINE OIL LINE	1
13	17133314	SCREW SCREW	4
14	4929576	PIPE SOCKET PIPE SOCKET	1
15	4858608	SEAL GASKET SEAL GASKET	2
16	17088474	WASHER WASHER	4
17	8024485	WATER PIPE WATER PIPE	1
18	8023725	OIL LINE OIL LINE	1
19	11271460	GASKET GASKET	1
20	15214224	SCREW SCREW	2
21	17094904	WASHER WASHER	2
22	8111439	RETAINER RETAINER	1
23	8111261	PIPE SOCKET PIPE SOCKET	1
24	8016191	BANJO BOLT BANJO BOLT	1
25	4858607	WASHER WASHER	3
26	17037931	HEXAGON NUT HEXAGON NUT	2
27	17089474	SPRING WASHER SPRING WASHER	2
28	8111316	PIPE SOCKET PIPE SOCKET	2
29	16688624	CYLIND-HEAD SCREW CYLIND-HEAD SCREW	2
30	17094504	WASHER WASHER	2
31	17494504	WASHER WASHER	2
32	4935023	PIPE SOCKET PIPE SOCKET	1
33	4864082	BANJO BOLT BANJO BOLT	1
34	98474306	WASHER WASHER	2
