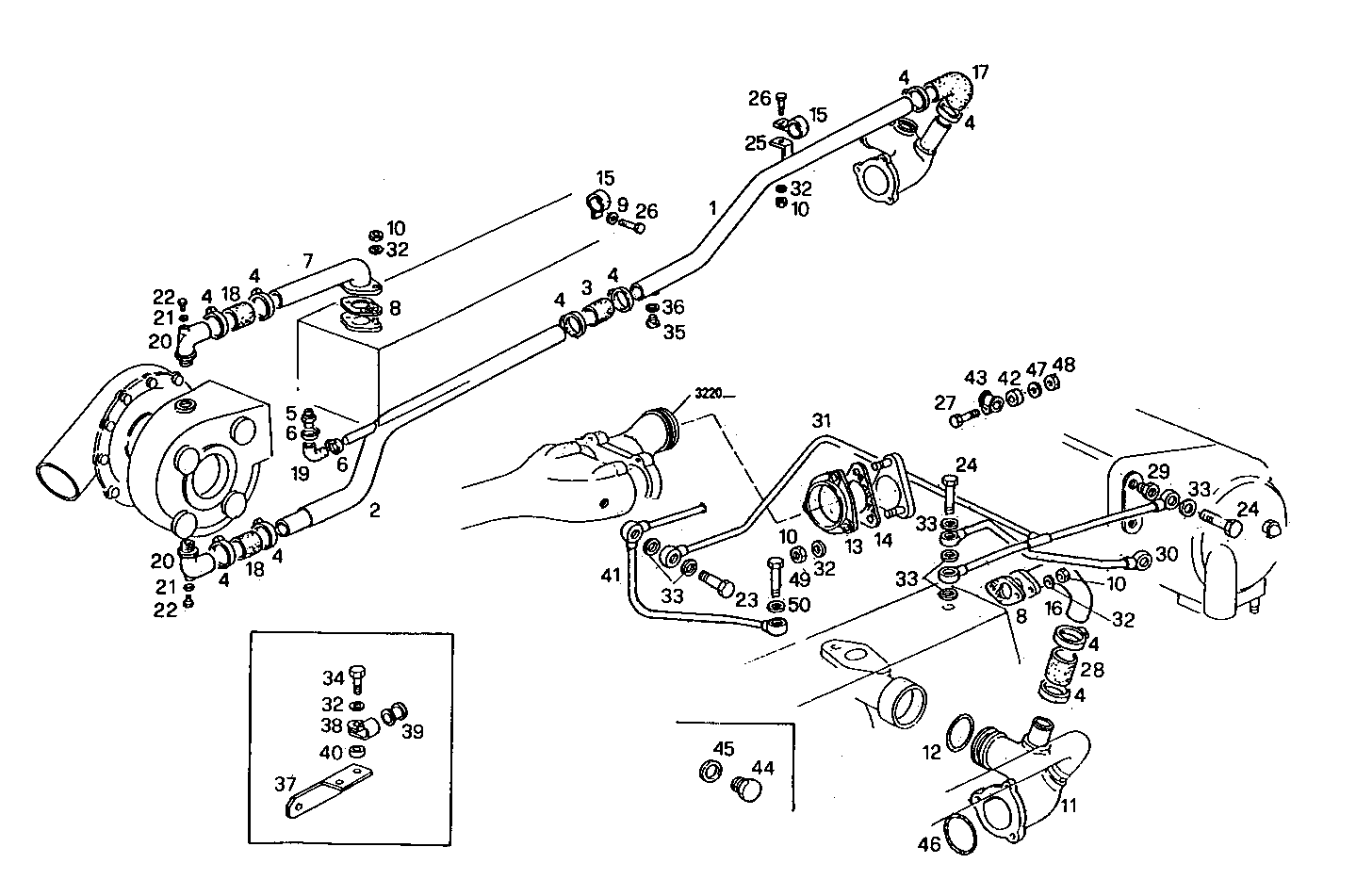

WATER LINES
8210SRM36.12 — 8210SRM36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110620 | WATER PIPE WATER PIPE | 1 | |
| 2 | 8110621 | WATER PIPE WATER PIPE | 1 | |
| 3 | 8110617 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 4 | 17764792 | HOSE CLIP HOSE CLIP | 10 | |
| 5 | 8024797 | PIPE SOCKET PIPE SOCKET | 1 | |
| 5 | 8114298 | PIPE SOCKET PIPE SOCKET | 1 | |
| 6 | 17764593 | CLIP CLIP | 1 | |
| 6 | 17764693 | CLIP CLIP | 1 | |
| 7 | 8109301 | WATER PIPE WATER PIPE | 1 | |
| 8 | 4918835 | GASKET GASKET | 2 | |
| 9 | 11194079 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 11 | 8110718 | WATER PIPE WATER PIPE | 1 | |
| 12 | 17290181 | O-RING O-RING | 1 | |
| 13 | 8007275 | FLANGE FLANGE | 1 | |
| 14 | 4533087 | FLAT ENGINE GKT FLAT ENGINE GKT | 1 | |
| 15 | 4928851 | CLIP CLIP | 2 | |
| 16 | 8110631 | WATER PIPE WATER PIPE | 1 | |
| 17 | 8110497 | CONNECTOR SLEEVE CONNECTOR SLEEVE | 1 | |
| 18 | 4778438 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 19 | 98420478 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 19 | 99452230 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 20 | 8110480 | PIPE SOCKET PIPE SOCKET | 2 | |
| 21 | 4858606 | GASKET GASKET | 2 | |
| 22 | 11903140 | PLUG PLUG | 2 | |
| 23 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 24 | 4930504 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 25 | 8100819 | RETAINER RETAINER | 1 | |
| 26 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 27 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 28 | 17742887 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 29 | 8009696 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 30 | 8013628 | WATER PIPE WATER PIPE | 1 | |
| 31 | 8013627 | WATER PIPE WATER PIPE | 1 | |
| 32 | 17089474 | SPRING WASHER SPRING WASHER | 7 | |
| 33 | 98474306 | WASHER WASHER | 7 | |
| 34 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 35 | 10300511 | LOCK PLUG LOCK PLUG | 1 | |
| 36 | 10296160 | SEAL GASKET SEAL GASKET | 1 | |
| 37 | 98428903 | PLATE PLATE | 1 | |
| 38 | 4810359 | HOSE CLIP HOSE CLIP | 1 | |
| 39 | 4565875 | RUBBER PAD RUBBER PAD | 3 | |
| 40 | 13605811 | SPACER SPACER | 1 | |
| 41 | 4865219 | WATER PIPE WATER PIPE | 1 | |
| 42 | 17814714 | SPACER SPACER | 1 | |
| 43 | 17316390 | CLIP CLIP | 1 | |
| 44 | 10300940 | PLUG PLUG | 2 | |
| 45 | 4858605 | WASHER WASHER | 2 | |
| 46 | 17296181 | O-RING O-RING | 1 | |
| 47 | 17088474 | WASHER WASHER | 1 | |
| 48 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 | |
| 49 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 50 | 98474305 | WASHER WASHER | 2 |
