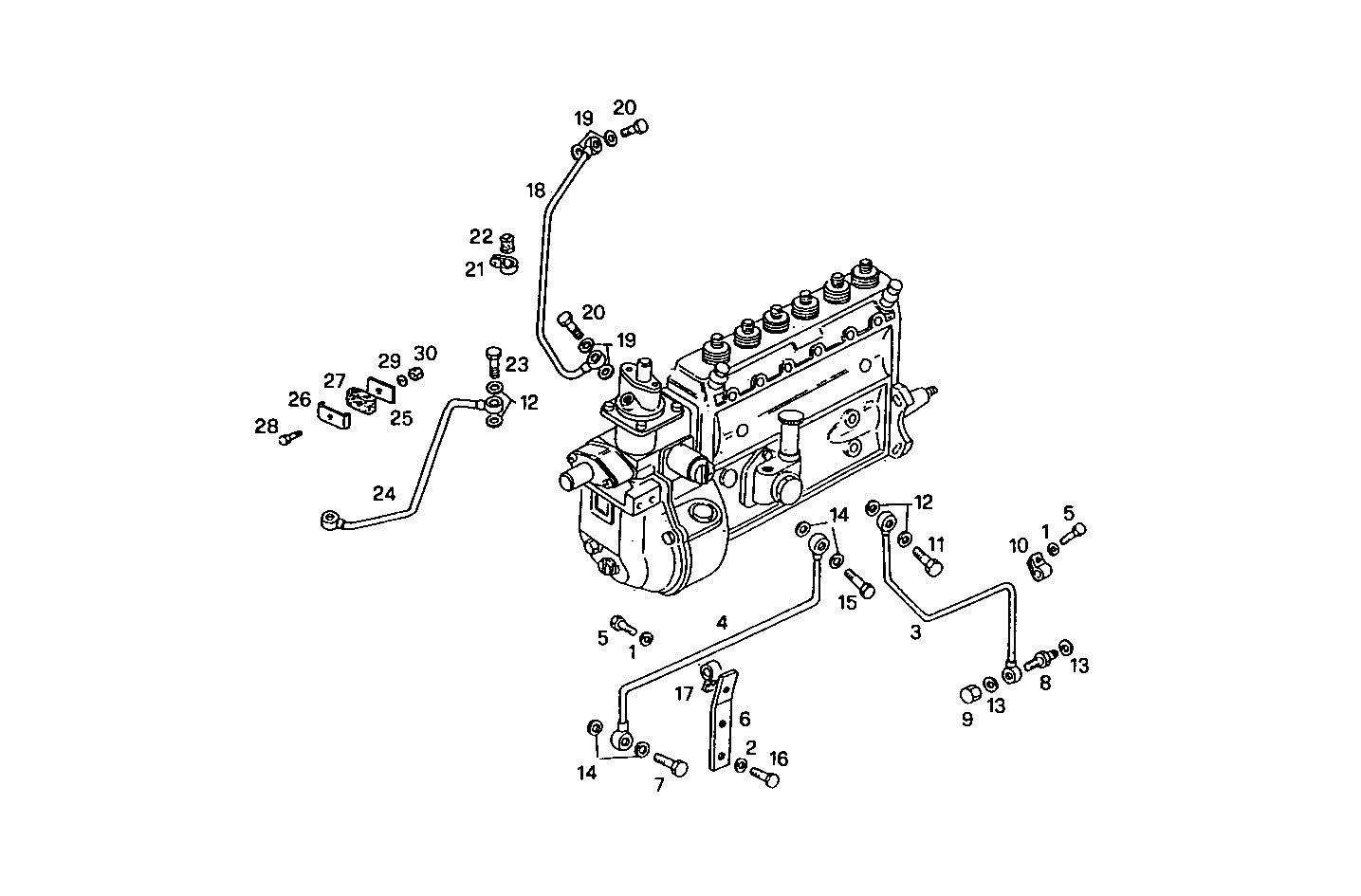

INJECTION PUMP ASSY
8210SRM36.32 — 8210SRM36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 2 | 17090174 | SPRING WASHER SPRING WASHER | 2 | |
| 3 | 17764793 | CLIP CLIP | 4 | |
| 4 | 98443555 | PIPE PIPE | 1 | |
| 5 | 98474954 | PIPE PIPE | 1 | |
| 6 | 16605424 | SCREW SCREW | 2 | |
| 7 | 4645737 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 8 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 4621393 | THREADED UNION THREADED UNION | 1 | |
| 10 | 11902111 | PLUG PLUG | 1 | |
| 11 | 17316190 | PIPE CLIP PIPE CLIP | 1 | |
| 12 | 705736 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 13 | 98474305 | WASHER WASHER | 4 | |
| 14 | 4837613 | GASKET GASKET | 3 | |
| 15 | 98474308 | SEAL GASKET SEAL GASKET | 4 | |
| 16 | 98479387 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 17 | 15004021 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 18 | 17316490 | CLIP CLIP | 1 | |
| 19 | 8020612 | OIL LINE OIL LINE | 1 | |
| 20 | 98474306 | WASHER WASHER | 4 | |
| 21 | 4864082 | BANJO BOLT BANJO BOLT | 2 | |
| 22 | 4755963 | FASTENING BRACKET FASTENING BRACKET | 2 | |
| 23 | 4755964 | RUBBER PAD RUBBER PAD | 2 | |
| 24 | 4864079 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 25 | 8013632 | OIL LINE OIL LINE | 1 | |
| 26 | 4644288 | CLIP CLIP | 1 | |
| 27 | 4644289 | CLIP CLIP | 1 | |
| 28 | 4871771 | RUBBER PAD RUBBER PAD | 1 | |
| 29 | 16603924 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 30 | 17088474 | WASHER WASHER | 1 | |
| 31 | 17037821 | HEXAGON NUT HEXAGON NUT | 1 |
