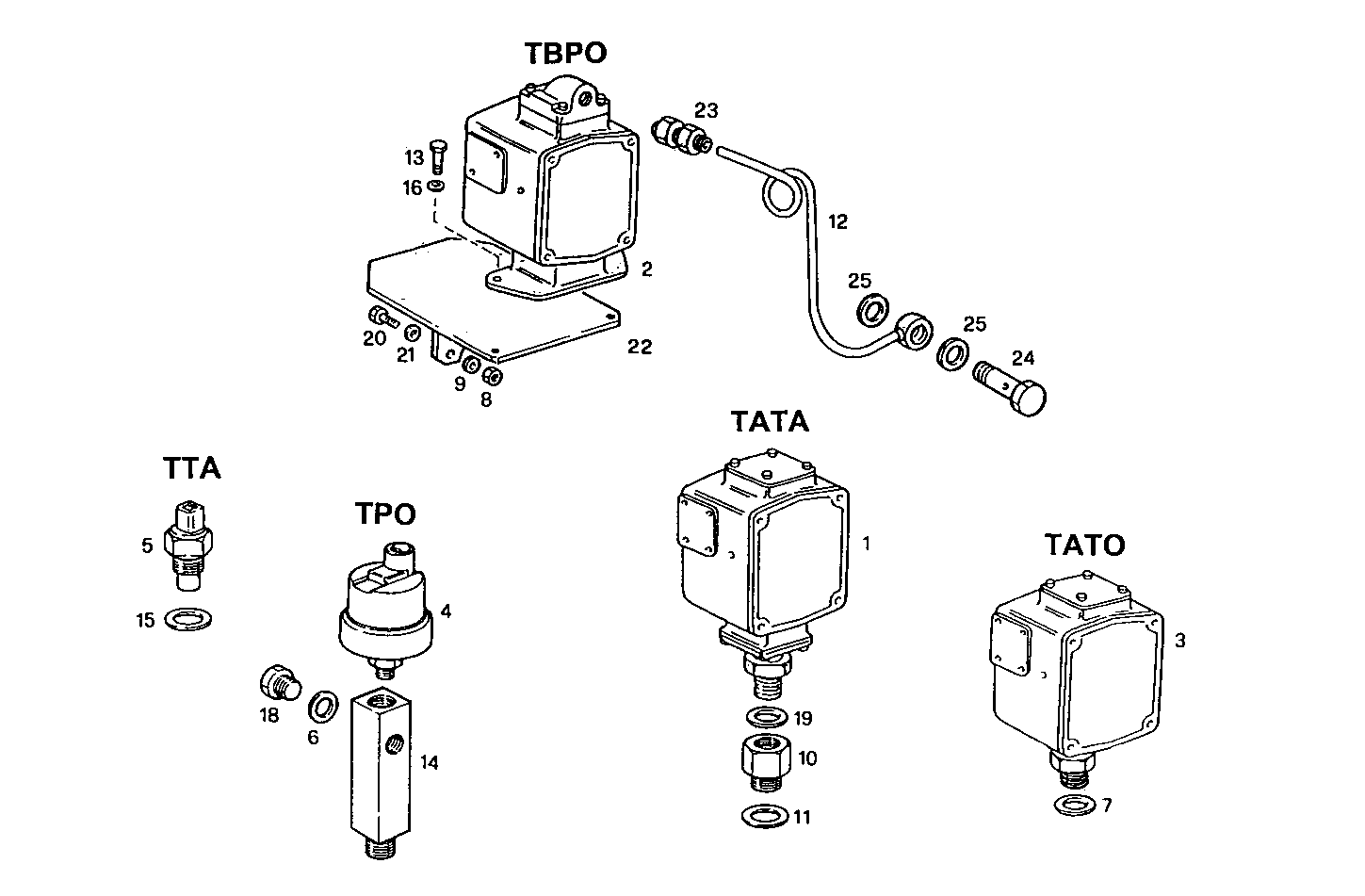

SENDER UNITS FOR GENERATOR UNIT
8210SRM36.32 — 8210SRM36
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110740 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8110739 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 8111450 | TRANSMITTER TRANSMITTER | 1 | |
| 4 | 8100417 | TRANSMITTER TRANSMITTER | 2 | |
| 5 | 8100418 | TRANSMITTER TRANSMITTER | 2 | |
| 6 | 4858608 | SEAL GASKET SEAL GASKET | 1 | |
| 7 | 11271460 | GASKET GASKET | 1 | |
| 8 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 9 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 10 | 8021213 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 12 | 8023724 | OIL LINE OIL LINE | 1 | |
| 13 | 17133314 | SCREW SCREW | 2 | |
| 14 | 4929576 | PIPE SOCKET PIPE SOCKET | 1 | |
| 15 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 16 | 17088474 | WASHER WASHER | 2 | |
| 17 | 8024485 | WATER PIPE WATER PIPE | 1 | |
| 18 | 16992111 | THREADED PLUG THREADED PLUG | 1 | |
| 19 | 11271460 | GASKET GASKET | 1 | |
| 20 | 15214224 | SCREW SCREW | 2 | |
| 21 | 17094904 | WASHER WASHER | 2 | |
| 22 | 8111084 | RETAINER RETAINER | 1 | |
| 23 | 8111316 | PIPE SOCKET PIPE SOCKET | 1 | |
| 24 | 4864080 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 25 | 4858607 | WASHER WASHER | 2 |
