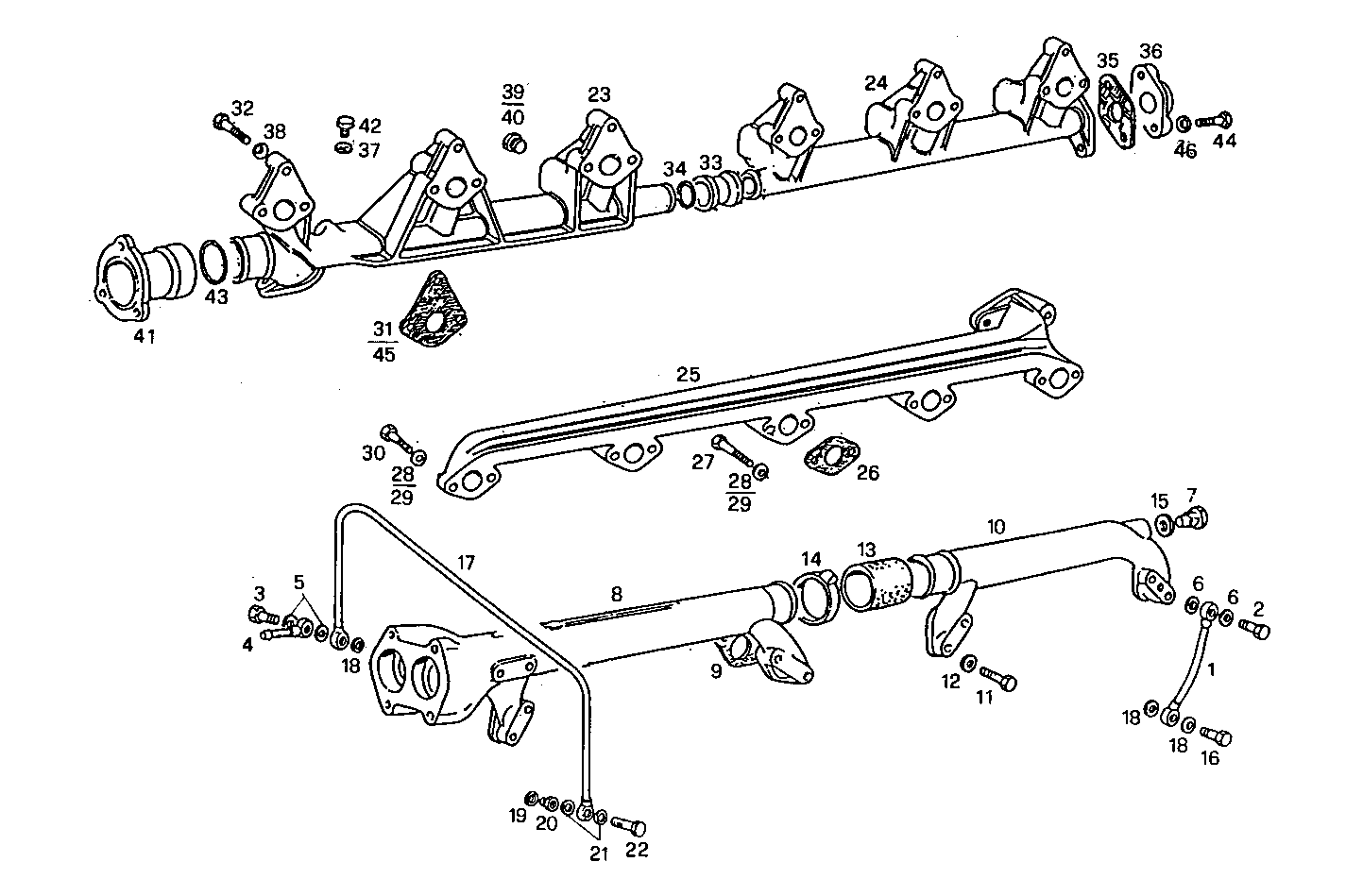

WATER LINES

8210SRM36.32 — 8210SRM36

Parts List

#	Part No	Name / Description	Qty
1	8012899	WATER PIPE WATER PIPE	1
2	8015164	SCREW CONNECTOR SCREW CONNECTOR	1
3	4930504	SCREW CONNECTOR SCREW CONNECTOR	1
4	98433829	BANJO COUPLING BANJO COUPLING	1
5	98474306	WASHER WASHER	2
6	4858606	GASKET GASKET	2
7	4871068	PLUG PLUG	1
8	98427299	WATER MANIFOLD WATER MANIFOLD	1
9	99435380	FLAT ENGINE GKT FLAT ENGINE GKT	4
10	8113491	WATER PIPE WATER PIPE	1
11	15888734	HEXAGON BOLT HEXAGON BOLT	8
12	17095114	WASHER WASHER	9
13	98421377	RUBBER SLEEVE RUBBER SLEEVE	1
14	17764992	CLIP CLIP	2
15	10260360	SEAL GASKET SEAL GASKET	1
16	4864082	BANJO BOLT BANJO BOLT	1
17	8111243	WATER PIPE WATER PIPE	1
18	4858607	WASHER WASHER	3
19	4858610	WASHER WASHER	1
20	4630360	THREADED UNION THREADED UNION	1
21	98474305	WASHER WASHER	2
22	8009699	SCREW CONNECTOR SCREW CONNECTOR	1
23	4778955	WATER MANIFOLD WATER MANIFOLD	1
24	4762646	WATER MANIFOLD WATER MANIFOLD	1
25	4641230	WATER MANIFOLD WATER MANIFOLD	1
26	500308780	FLAT ENGINE GKT FLAT ENGINE GKT	5
27	16605824	HEXAGON BOLT HEXAGON BOLT	3
28	4852210	WASHER WASHER	10
29	4852211	WASHER WASHER	10
30	16606024	SCREW SCREW	7
31	4852099	FLAT ENGINE GKT FLAT ENGINE GKT	6
32	16605924	SCREW SCREW	18
33	4762647	CONNECTOR SLEEVE CONNECTOR SLEEVE	1
34	98458442	O-RING O-RING	4
35	4863947	FLAT ENGINE GKT FLAT ENGINE GKT	1
36	1365519	FLANGE FLANGE	1
37	4858609	WASHER WASHER	1
38	17094914	WASHER WASHER	18
39	16997411	THREADED PLUG THREADED PLUG	1
40	16997311	PLUG PLUG	1
41	4799657	WATER PIPE WATER PIPE	1
42	16992311	LOCK PLUG LOCK PLUG	1
43	98461201	O-RING O-RING	1
44	16605624	HEXAGON BOLT HEXAGON BOLT	2
45	99456733	FLAT ENGINE GKT FLAT ENGINE GKT	6
46	17089574	WASHER WASHER	2
