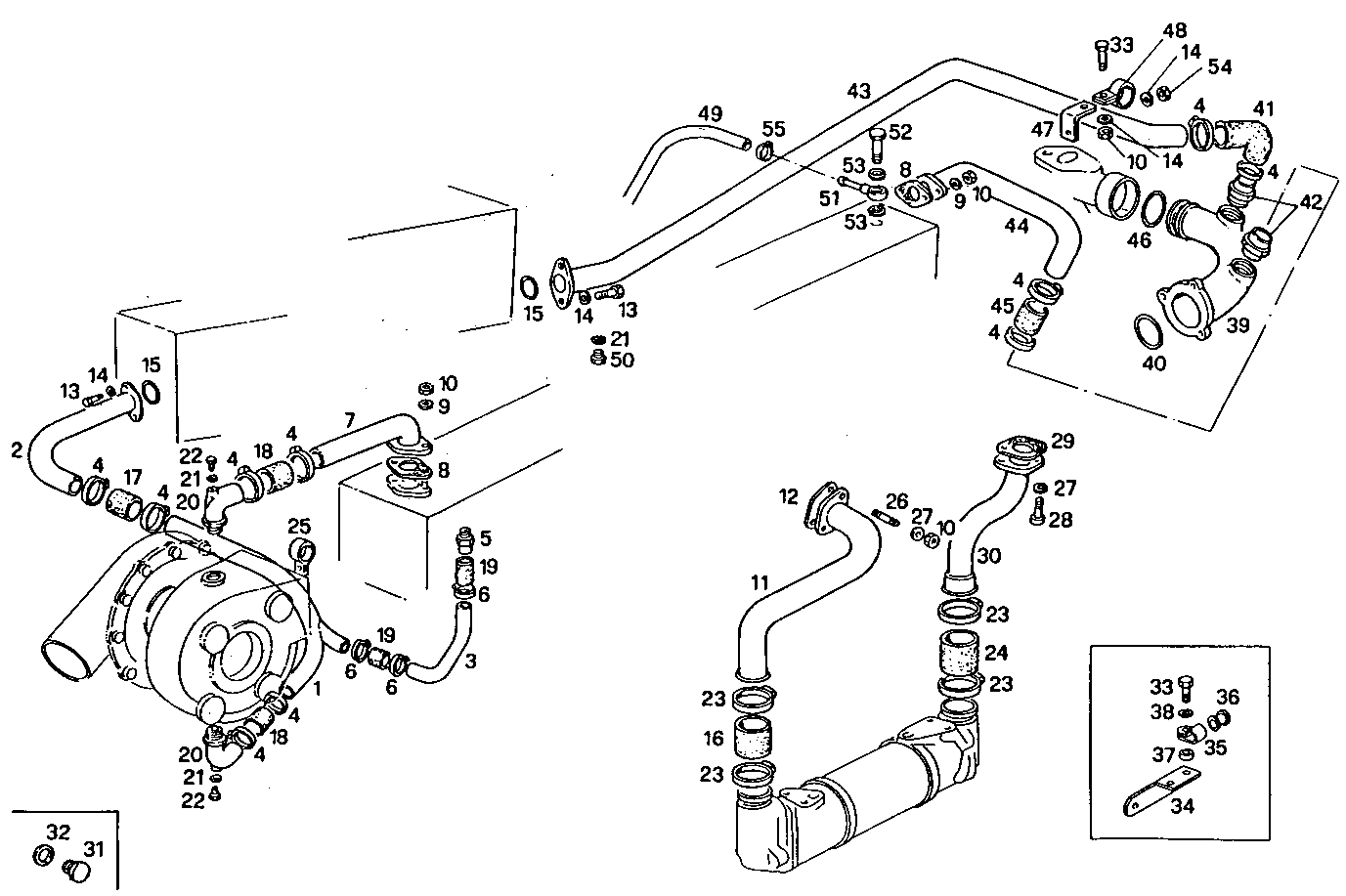

WATER LINES

8210SRM36.32 — 8210SRM36

Parts List

#	Part No	Name / Description	Qty
1	8113519	WATER PIPE WATER PIPE	1
2	8110611	WATER PIPE WATER PIPE	1
3	8113520	WATER PIPE WATER PIPE	1
4	17764793	CLIP CLIP	10
5	4633506	THREADED UNION THREADED UNION	1
6	17764593	CLIP CLIP	4
7	8109301	WATER PIPE WATER PIPE	1
8	4918835	GASKET GASKET	2
9	17089474	SPRING WASHER SPRING WASHER	9
10	17037931	HEXAGON NUT HEXAGON NUT	7
11	4709713	WATER PIPE WATER PIPE	1
12	4863951	FLAT ENGINE GKT FLAT ENGINE GKT	1
13	11112221	HEXAGON BOLT HEXAGON BOLT	5
14	17091074	WASHER WASHER	6
15	17289881	O-RING O-RING	2
16	8110207	WATER HOSE WATER HOSE	1
17	8110617	RUBBER SLEEVE RUBBER SLEEVE	1
18	4778438	RUBBER SLEEVE RUBBER SLEEVE	2
19	98420478	RUBBER SLEEVE RUBBER SLEEVE	1
20	8110480	PIPE SOCKET PIPE SOCKET	2
21	4858607	WASHER WASHER	3
22	11903140	PLUG PLUG	2
23	17764993	CLIP CLIP	4
24	8110206	WATER HOSE WATER HOSE	1
25	4928851	CLIP CLIP	1
26	13517024	STUD STUD	2
27	11198071	SPRING WASHER SPRING WASHER	2
28	16043621	HEXAGON BOLT HEXAGON BOLT	2
29	4547637	FLAT ENGINE GKT FLAT ENGINE GKT	1
30	98428450	WATER PIPE WATER PIPE	1
31	10300940	PLUG PLUG	2
32	10260060	SEAL GASKET SEAL GASKET	2
33	16605624	HEXAGON BOLT HEXAGON BOLT	3
34	98428903	PLATE PLATE	1
35	4810359	HOSE CLIP HOSE CLIP	1
36	4565875	RUBBER PAD RUBBER PAD	1
37	13605811	SPACER SPACER	1
38	17089474	SPRING WASHER SPRING WASHER	1
39	8110718	WATER PIPE WATER PIPE	1
40	14471581	O-RING O-RING	1
41	8102099	RUBBER SLEEVE RUBBER SLEEVE	1
42	8110595	PIPE SOCKET PIPE SOCKET	2
43	8112474	WATER PIPE WATER PIPE	1
44	8110631	WATER PIPE WATER PIPE	1
45	8110724	RUBBER SLEEVE RUBBER SLEEVE	1
46	14464781	O-RING O-RING	1
47	8113499	RETAINER RETAINER	1
48	4936741	CLIP CLIP	1
49	19033787	WATER HOSE WATER HOSE	1
50	16992211	THREADED PLUG THREADED PLUG	1
51	4636689	SWIVEL COUPLING SWIVEL COUPLING	2
52	8009696	SCREW CONNECTOR SCREW CONNECTOR	2
53	98474306	WASHER WASHER	4
54	17038621	NUT NUT	1
55	17764293	CLIP CLIP	1
