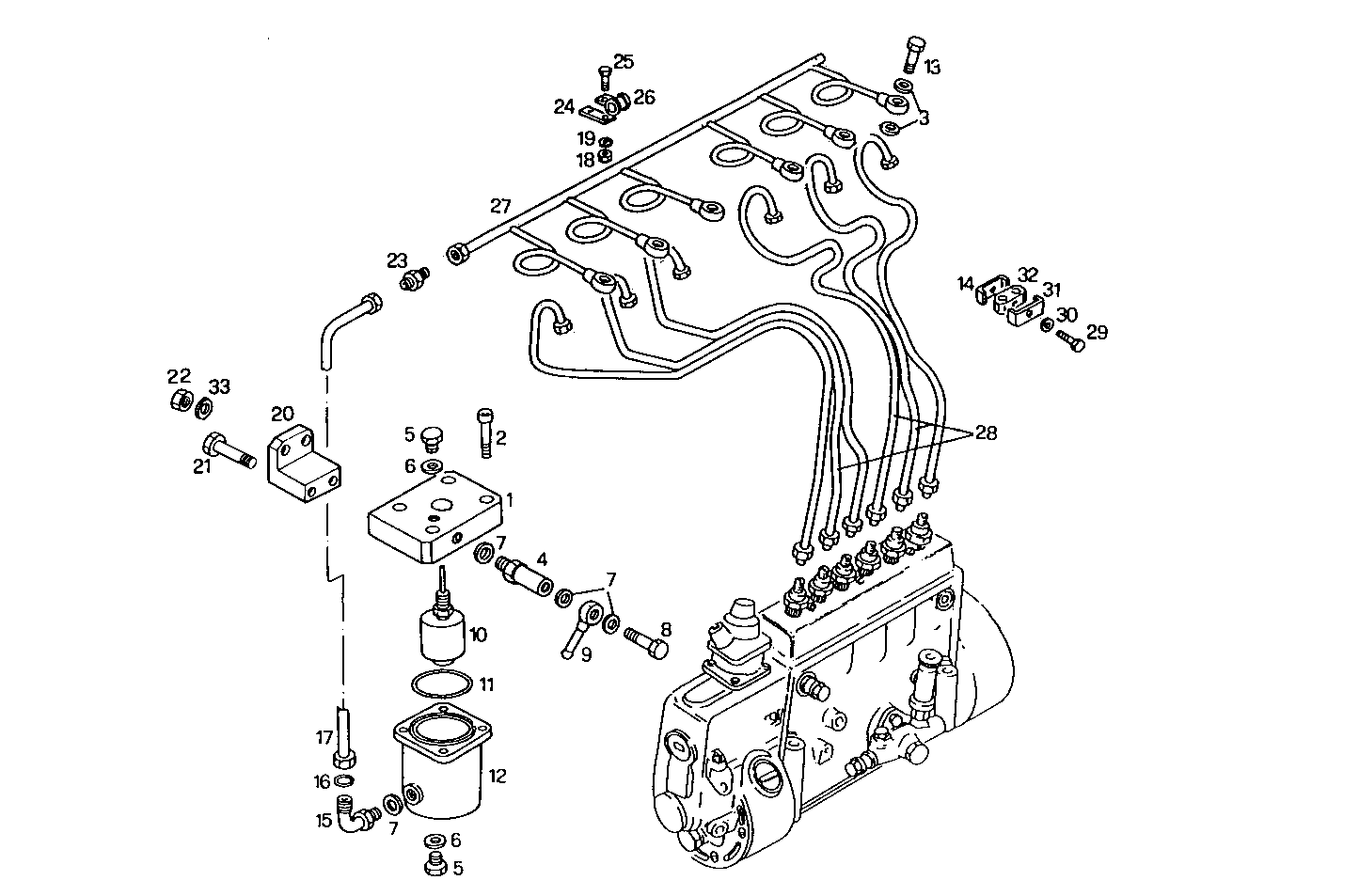

DOUBLE WALL INJECTION PIPES
8210SRM38.10 — 8210SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8020291 | DISTRIBUTOR DISTRIBUTOR | 1 | |
| 2 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 4 | |
| 3 | 98474303 | WASHER WASHER | 12 | |
| 4 | 8102465 | VALVE VALVE | 1 | |
| 5 | 16992211 | THREADED PLUG THREADED PLUG | 2 | |
| 6 | 4858607 | WASHER WASHER | 2 | |
| 7 | 4858608 | SEAL GASKET SEAL GASKET | 4 | |
| 8 | 4864083 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 9 | 98413896 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 8102285 | INDICATOR INDICATOR | 1 | |
| 11 | 17290081 | O-RING O-RING | 1 | |
| 12 | 8026365 | TANK TANK | 1 | |
| 13 | 4864078 | BANJO BOLT BANJO BOLT | 6 | |
| 14 | 4659219 | PLATE PLATE | 8 | |
| 15 | 8025927 | ELBOW COUPLING ELBOW COUPLING | 1 | |
| 16 | 17281681 | O-RING O-RING | 1 | |
| 17 | 8020306 | FUEL LINE FUEL LINE | 1 | |
| 18 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 19 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 20 | 8020304 | CHOCK CHOCK | 1 | |
| 21 | 16691124 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 2 | |
| 22 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 23 | 16501711 | THREADED UNION THREADED UNION | 1 | |
| 24 | 8111937 | RETAINER RETAINER | 1 | |
| 25 | 16605424 | SCREW SCREW | 1 | |
| 26 | 17316390 | CLIP CLIP | 1 | |
| 27 | 8020305 | FUEL LINE FUEL LINE | 1 | |
| 28 | 8020290 | INJECTION LINE SET INJECTION LINE SET | 1 | |
| 29 | 16602224 | HEXAGON BOLT HEXAGON BOLT | 8 | |
| 30 | 17496434 | WASHER WASHER | 8 | |
| 31 | 4659218 | CLIP CLIP | 8 | |
| 32 | 4659217 | DOWEL DOWEL | 8 | |
| 33 | 17089474 | SPRING WASHER SPRING WASHER | 2 |
