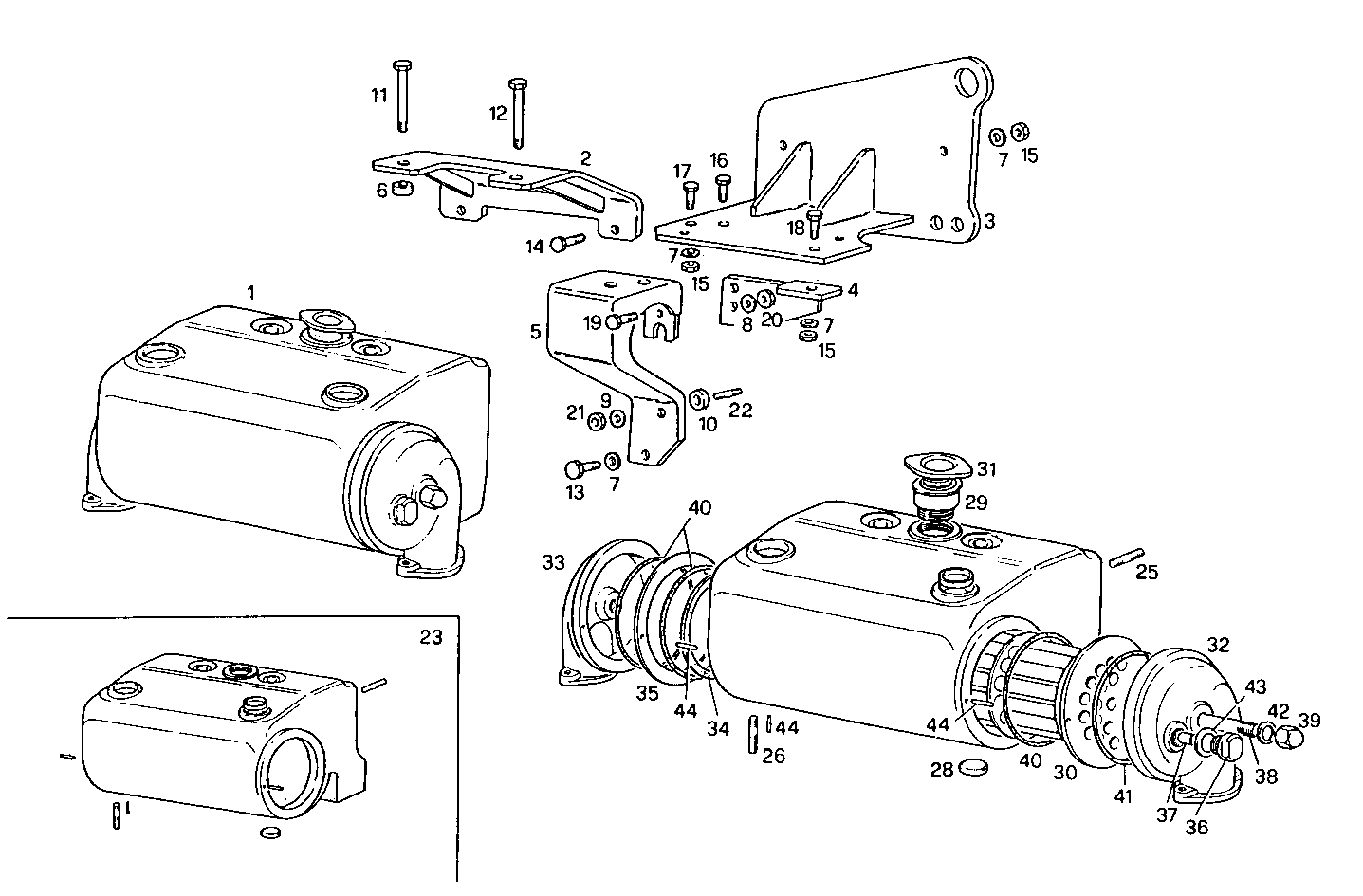

FRESH WATER - SEA WATER HEAT EXCHANGER
8210SRM38.10 — 8210SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8005323 | WATER/SEA WATER HEAT EXCH WATER/SEA WATER HEAT EXCH | 1 | |
| 2 | 8110357 | RETAINER RETAINER | 1 | |
| 3 | 8110356 | RETAINER RETAINER | 1 | |
| 4 | 8110358 | RETAINER RETAINER | 1 | |
| 5 | 8110355 | SUPPORT SUPPORT | 1 | |
| 6 | 8109399 | SPACING BAR SPACING BAR | 2 | |
| 7 | 11198379 | SPRING WASHER SPRING WASHER | 8 | |
| 8 | 11194079 | SPRING WASHER SPRING WASHER | 2 | |
| 9 | 11198679 | SPRING WASHER SPRING WASHER | 1 | |
| 10 | 10730701 | WASHER WASHER | 1 | |
| 11 | 11288021 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 12 | 11234721 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 13 | 15972321 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 14 | 11306921 | SCREW SCREW | 2 | |
| 15 | 12164711 | HEXAGON NUT HEXAGON NUT | 5 | |
| 16 | 15973221 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 17 | 15970921 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 18 | 15969821 | SCREW SCREW | 1 | |
| 19 | 16043621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 20 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 21 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 22 | 13450521 | STUD STUD | 1 | |
| 23 | 8005324 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 24 | 8005353 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 25 | 13543321 | STUD STUD | 3 | |
| 26 | 13543621 | STUD STUD | 4 | |
| 27 | 14282970 | LOCK PLUG LOCK PLUG | 2 | |
| 28 | 14282770 | LOCK PLUG LOCK PLUG | 1 | |
| 29 | 4934521 | PIPE SOCKET PIPE SOCKET | 1 | |
| 30 | 4932010 | TUBE STACK TUBE STACK | 1 | |
| 31 | 4927808 | PLUG PLUG | 1 | |
| 32 | 8109337 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 33 | 8103480 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 34 | 8005302 | GASKET GASKET | 1 | |
| 35 | 8103454 | SPACING BAR SPACING BAR | 1 | |
| 36 | 8101771 | PLUG PLUG | 2 | |
| 37 | 8101772 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 38 | 4918894 | TIE ROD TIE ROD | 1 | |
| 39 | 4918893 | NUT NUT | 1 | |
| 40 | 14467381 | O-RING O-RING | 3 | |
| 41 | 14467581 | O-RING O-RING | 1 | |
| 42 | 10280060 | WASHER WASHER | 1 | |
| 43 | 10296260 | SEAL GASKET SEAL GASKET | 2 | |
| 44 | 14163770 | PIN PIN | 3 |
