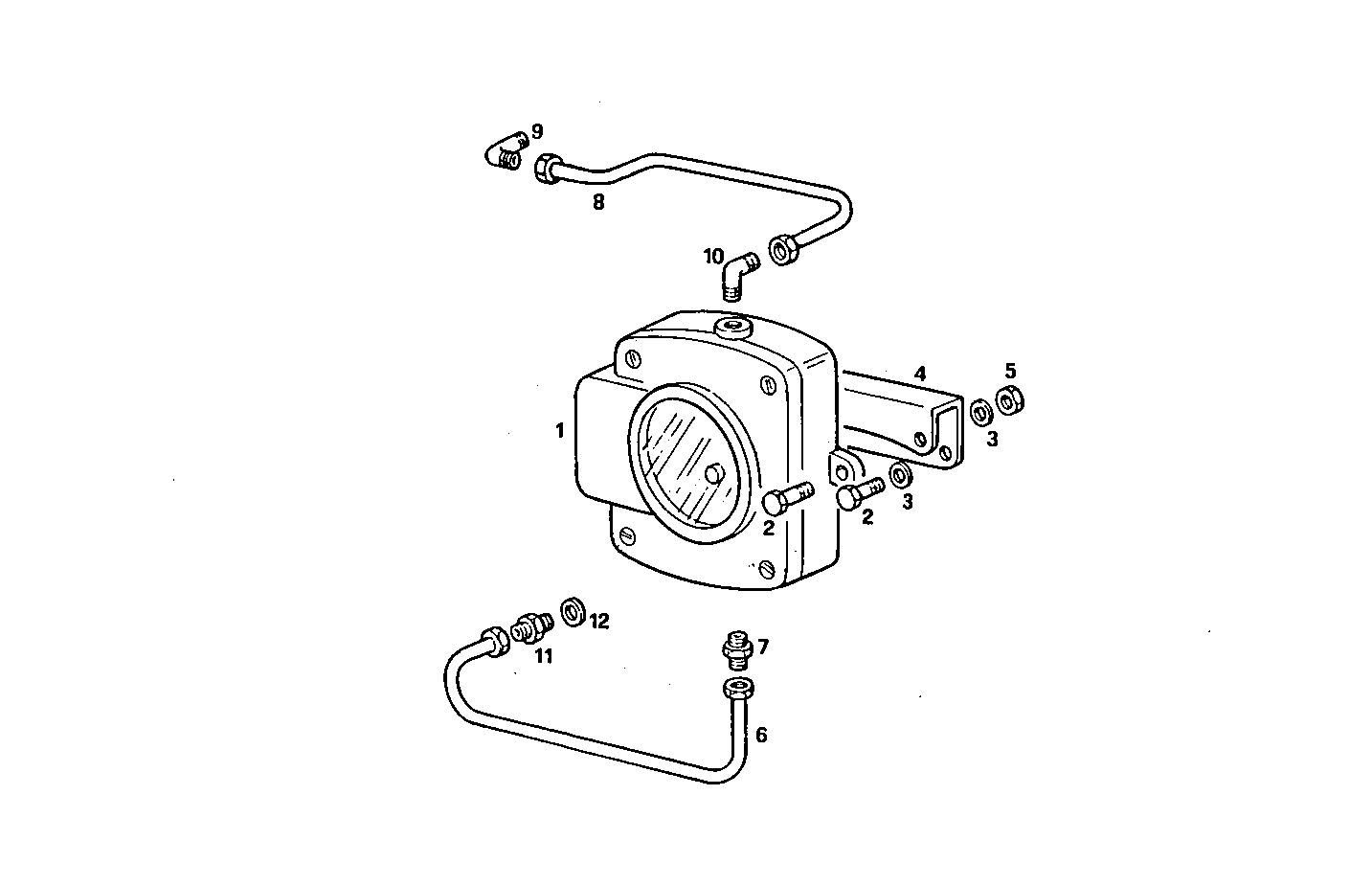

INSTRUMENTS
8210SRM38.10 — 8210SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8111513 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 16043521 | SCREW SCREW | 4 | |
| 3 | 11193879 | SPRING WASHER SPRING WASHER | 4 | |
| 4 | 8005358 | RETAINER RETAINER | 1 | |
| 5 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 6 | 8005360 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8005782 | PIPE SOCKET PIPE SOCKET | 1 | |
| 8 | 8005359 | WATER PIPE WATER PIPE | 1 | |
| 9 | 8112247 | PIPE SOCKET PIPE SOCKET | 1 | |
| 10 | 8111410 | PIPE SOCKET PIPE SOCKET | 1 | |
| 11 | 4741602 | THREADED UNION THREADED UNION | 1 | |
| 12 | 10257460 | SEAL GASKET SEAL GASKET | 1 |
