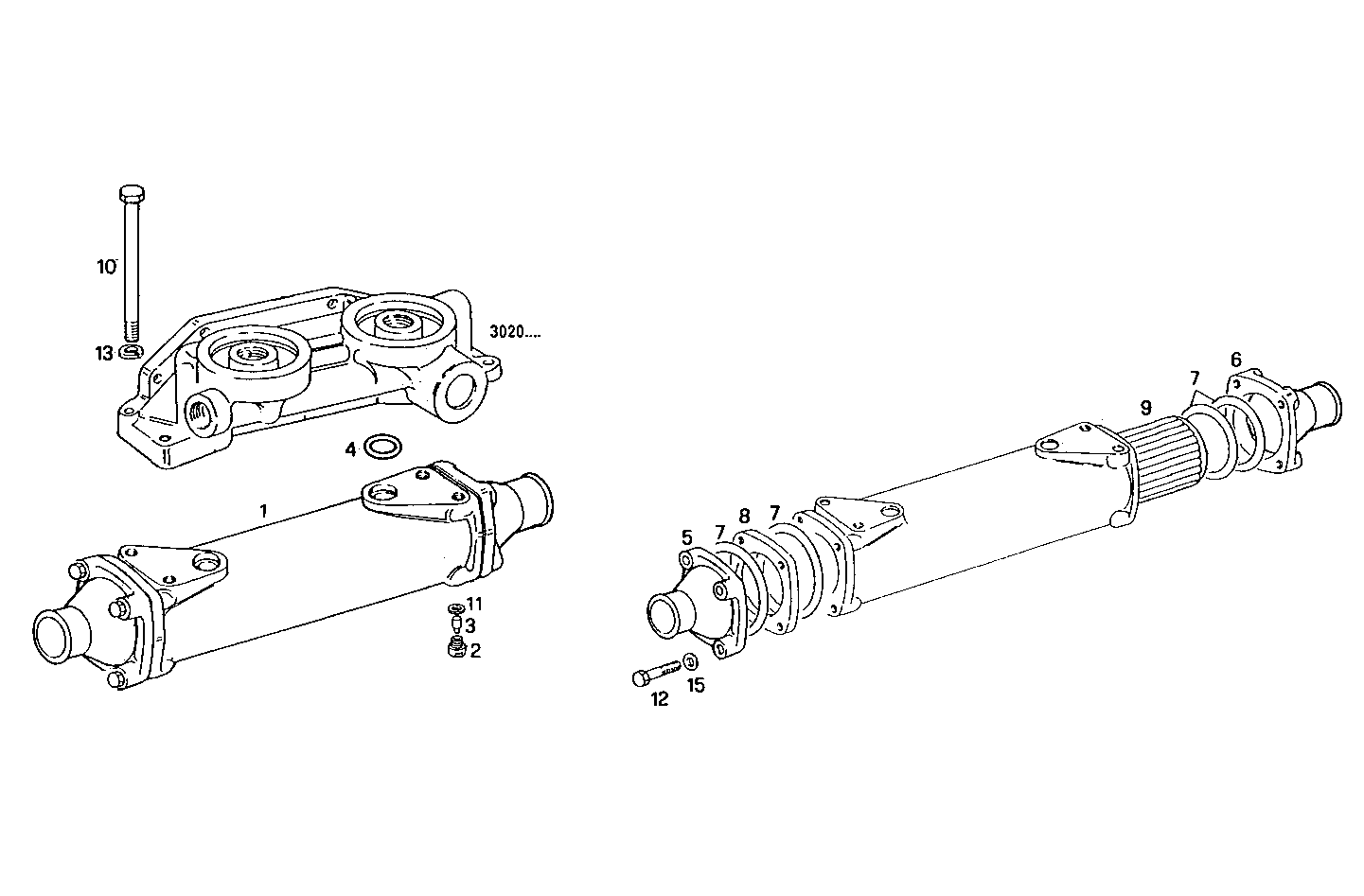

OIL - WATER HEAT EXCHANGER
8210SRM38.10 — 8210SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8011652 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 4917793 | PLUG PLUG | 1 | |
| 3 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 1 | |
| 4 | 17282581 | O-RING O-RING | 2 | |
| 5 | 8019072 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 6 | 8019073 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 7 | 8019074 | O-RING O-RING | 4 | |
| 8 | 4837668 | SPACING BAR SPACING BAR | 1 | |
| 9 | 4837665 | TUBE STACK TUBE STACK | 1 | |
| 10 | 11307024 | SCREW SCREW | 4 | |
| 11 | 4858610 | WASHER WASHER | 1 | |
| 12 | 16690824 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 8 | |
| 13 | 11198374 | SPRING WASHER SPRING WASHER | 4 | |
| 14 | 11198074 | SPRING WASHER SPRING WASHER | 4 | |
| 15 | 17800474 | WASHER WASHER | 8 |
