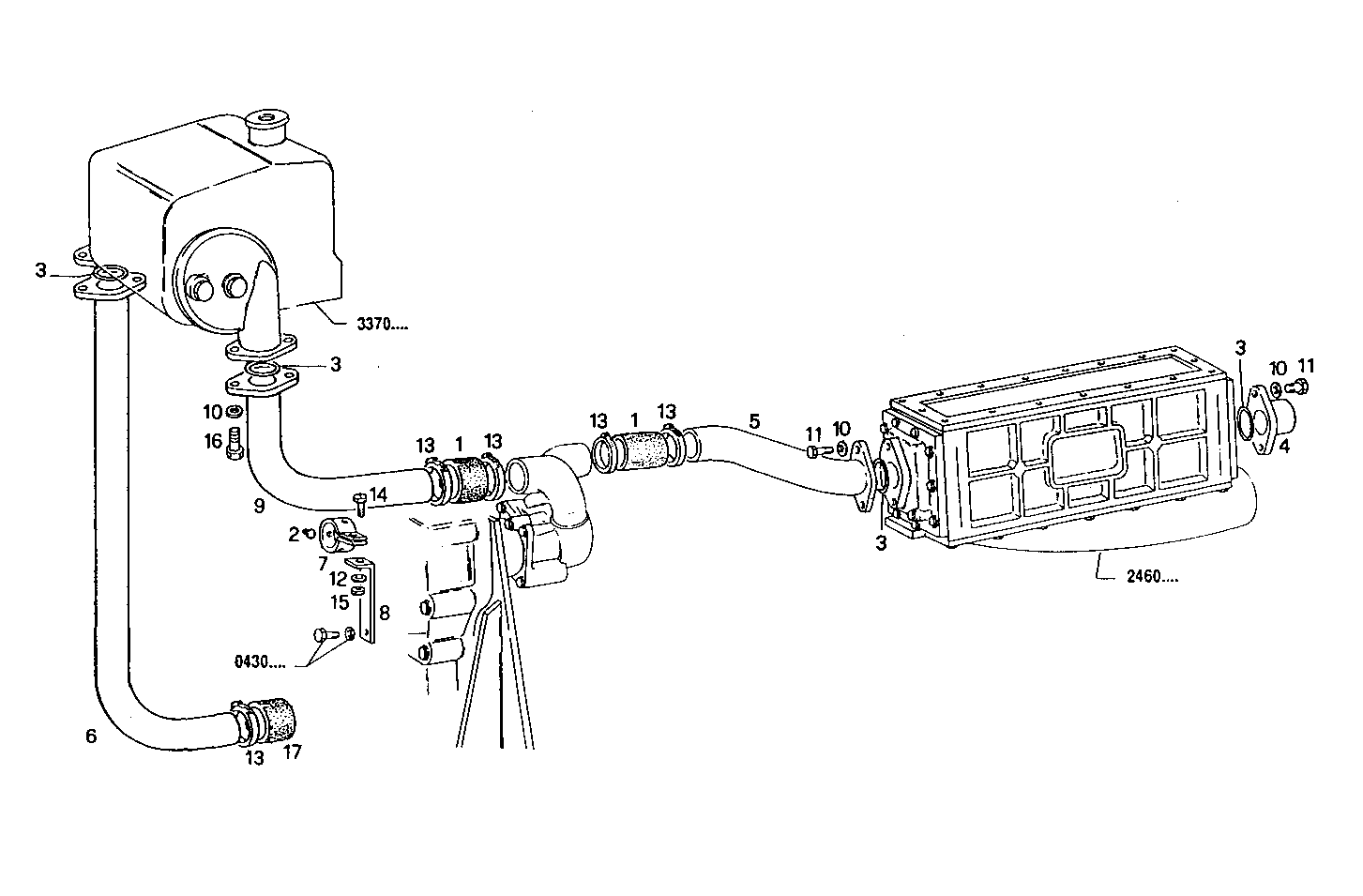

SEA WATER LINES
8210SRM38.10 — 8210SRM38
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4765112 | RUBBER SLEEVE RUBBER SLEEVE | 2 | |
| 2 | 4568427 | RUBBER PAD RUBBER PAD | 3 | |
| 3 | 17289881 | O-RING O-RING | 4 | |
| 4 | 8110995 | WATER PIPE WATER PIPE | 1 | |
| 5 | 8110725 | WATER PIPE WATER PIPE | 1 | |
| 6 | 8011697 | WATER PIPE WATER PIPE | 1 | |
| 7 | 8111159 | CLIP CLIP | 1 | |
| 8 | 8102705 | RETAINER RETAINER | 1 | |
| 9 | 8005335 | WATER PIPE WATER PIPE | 1 | |
| 10 | 17091074 | WASHER WASHER | 8 | |
| 11 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 12 | 17089474 | SPRING WASHER SPRING WASHER | 1 | |
| 13 | 17764993 | CLIP CLIP | 6 | |
| 14 | 16605524 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 15 | 17037931 | HEXAGON NUT HEXAGON NUT | 1 | |
| 16 | 15540321 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 4765112 | RUBBER SLEEVE RUBBER SLEEVE | 1 |
