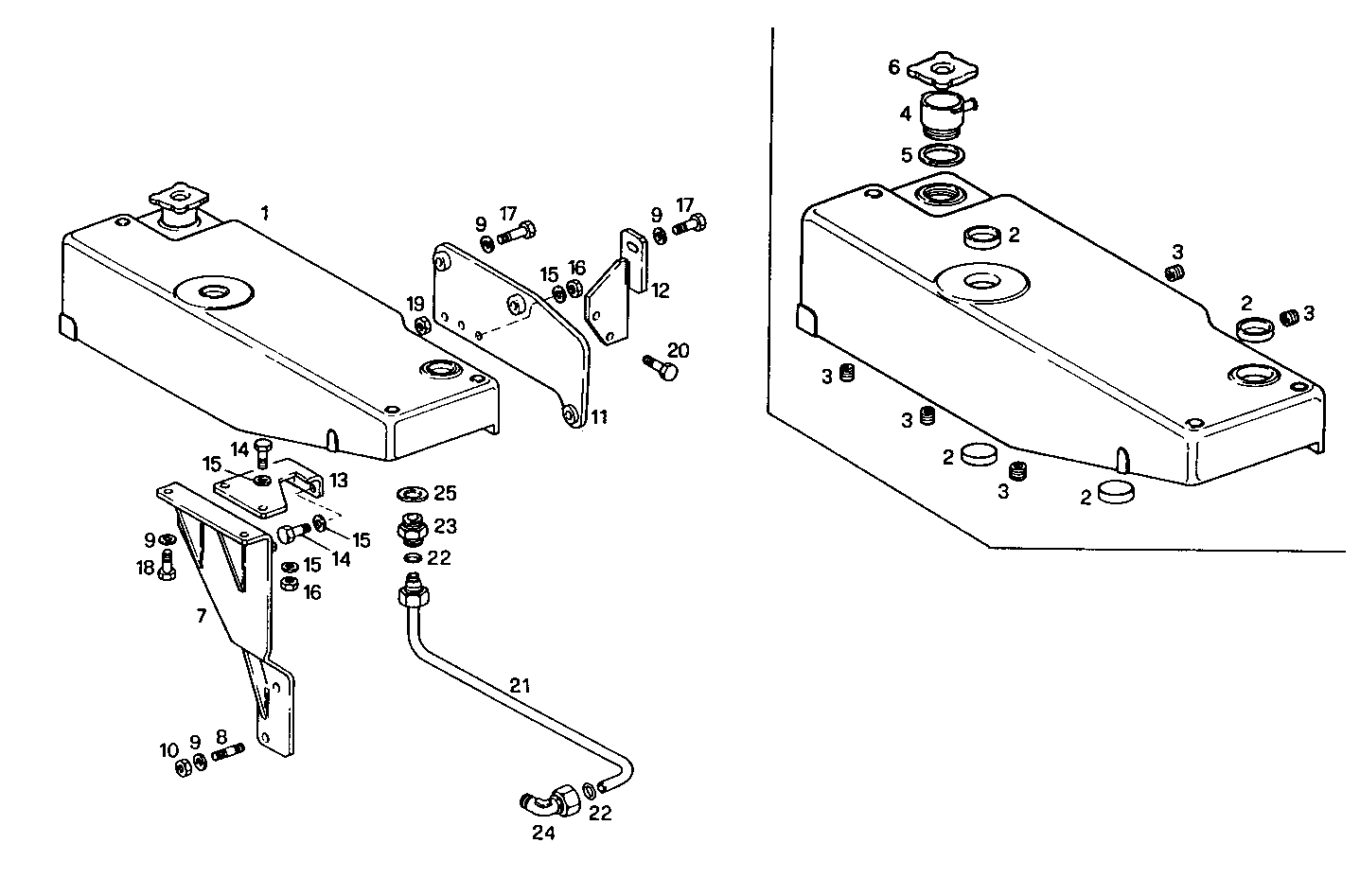

EXPANSION TANK
8210SRM40.30 — 8210SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024798 | WATER EXPANSION TANK WATER EXPANSION TANK | 1 | |
| 2 | 16991170 | LOCK PLUG LOCK PLUG | 4 | |
| 3 | 17873371 | THREADED INSERT THREADED INSERT | 5 | |
| 4 | 8102030 | FILLER NECK FILLER NECK | 1 | |
| 5 | 10265360 | SEAL GASKET SEAL GASKET | 1 | |
| 6 | 4930462 | PLUG PLUG | 1 | |
| 7 | 8025148 | SUPPORT SUPPORT | 1 | |
| 8 | 13453221 | STUD STUD | 1 | |
| 9 | 17090474 | SPRING WASHER SPRING WASHER | 6 | |
| 10 | 17038221 | HEXAGON NUT HEXAGON NUT | 1 | |
| 11 | 8025149 | PLATE PLATE | 1 | |
| 12 | 8025152 | RETAINER RETAINER | 1 | |
| 13 | 8030088 | RETAINER RETAINER | 1 | |
| 14 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 15 | 17089874 | WASHER WASHER | 8 | |
| 16 | 17037931 | HEXAGON NUT HEXAGON NUT | 4 | |
| 17 | 16607724 | HEXAGON BOLT HEXAGON BOLT | 3 | |
| 18 | 16607924 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 19 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 20 | 16606024 | SCREW SCREW | 2 | |
| 21 | 8030057 | WATER PIPE WATER PIPE | 1 | |
| 22 | 8024649 | O-RING O-RING | 2 | |
| 23 | 8012712 | PIPE SOCKET PIPE SOCKET | 1 | |
| 24 | 8111454 | PIPE SOCKET PIPE SOCKET | 1 | |
| 25 | 10263460 | WASHER WASHER | 1 |
