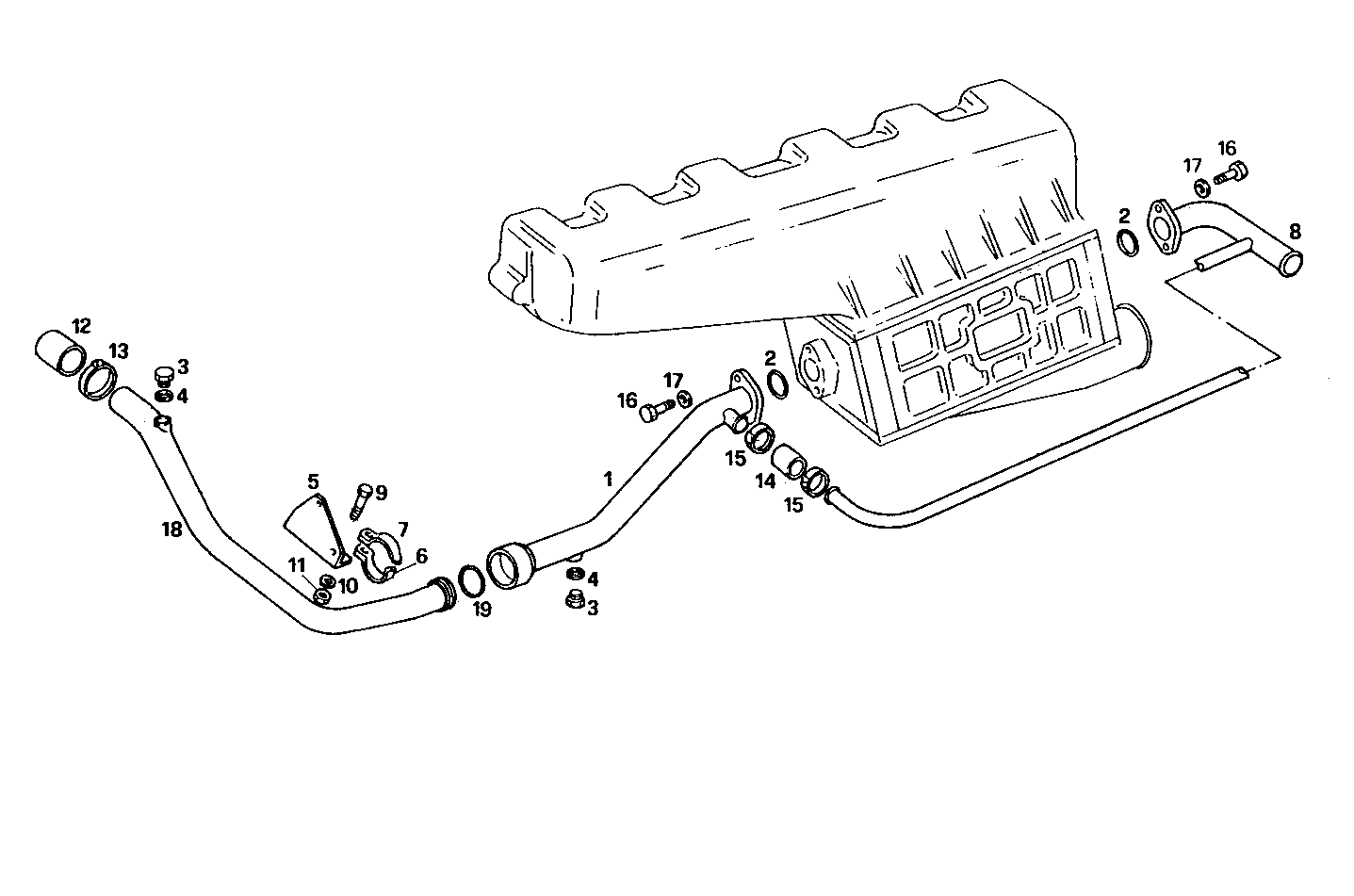

WATER LINES
8210SRM40.30 — 8210SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8028991 | WATER PIPE WATER PIPE | 1 | |
| 2 | 17289981 | O-RING O-RING | 2 | |
| 3 | 16992611 | THREADED PLUG THREADED PLUG | 2 | |
| 4 | 10263460 | WASHER WASHER | 2 | |
| 5 | 8024546 | RETAINER RETAINER | 1 | |
| 6 | 8017810 | CLAMP CLAMP | 3 | |
| 7 | 8017811 | CLAMP CLAMP | 3 | |
| 8 | 8028992 | WATER PIPE WATER PIPE | 1 | |
| 9 | 16607624 | SCREW SCREW | 1 | |
| 10 | 17090174 | SPRING WASHER SPRING WASHER | 1 | |
| 11 | 17038121 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 8107383 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 13 | 17765093 | CLIP CLIP | 2 | |
| 14 | 8007804 | RUBBER SLEEVE RUBBER SLEEVE | 1 | |
| 15 | 17764793 | CLIP CLIP | 2 | |
| 16 | 16609824 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 17 | 17091074 | WASHER WASHER | 4 | |
| 18 | 8024544 | WATER PIPE WATER PIPE | 1 | |
| 19 | 17290581 | O-RING O-RING | 1 |
