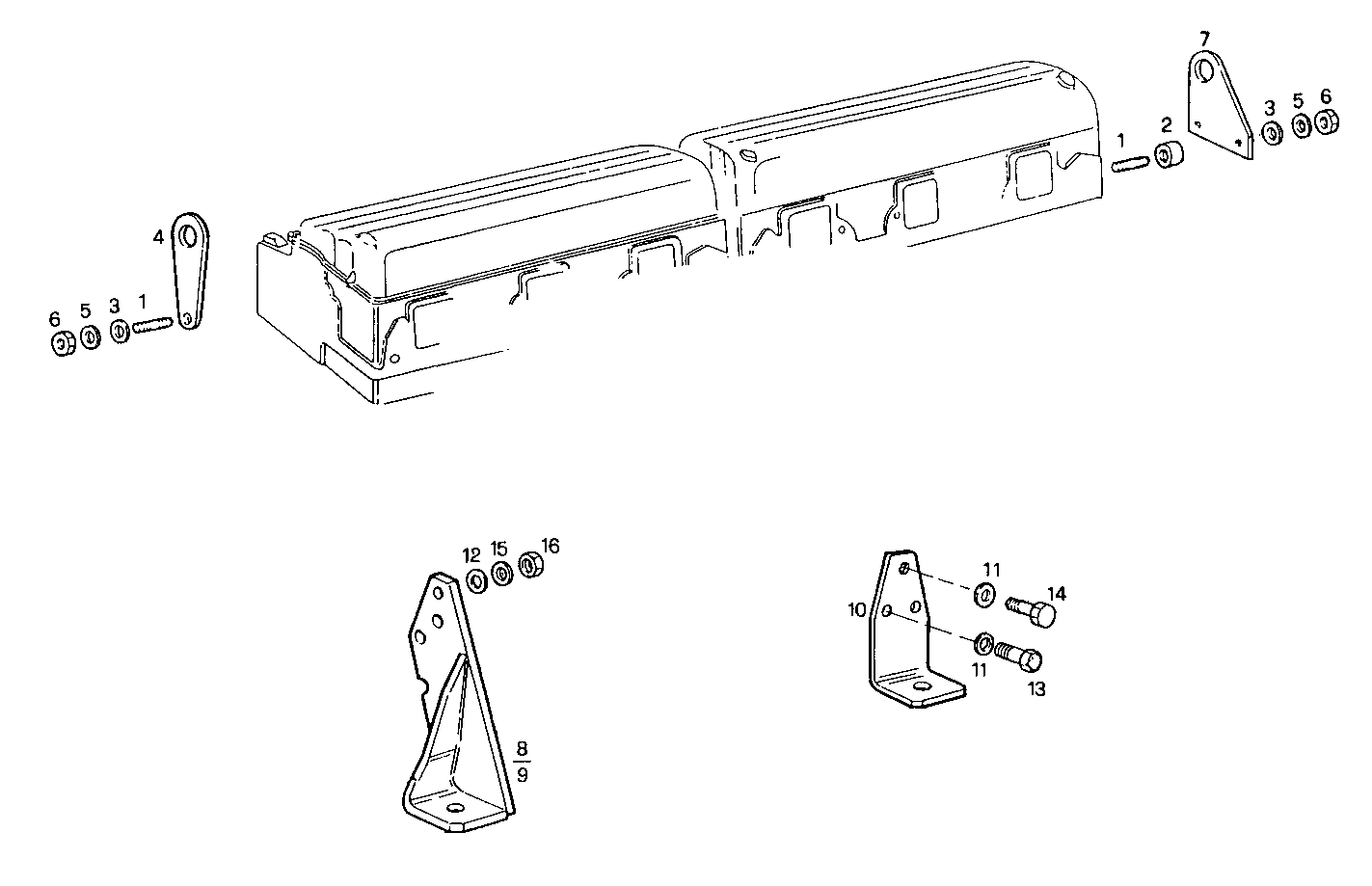

ENGINE SUSPENSION
8210SRM40.30A550 — 8210SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4698263 | STUD STUD | 3 | |
| 2 | 4753027 | SPACER SPACER | 2 | |
| 3 | 4764086 | WASHER WASHER | 3 | |
| 4 | 8025151 | HOOK HOOK | 1 | |
| 5 | 17091174 | SPRING WASHER SPRING WASHER | 3 | |
| 6 | 17038621 | NUT NUT | 3 | |
| 7 | 4753026 | HOOK HOOK | 1 | |
| 8 | 8110751 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 9 | 8110752 | ENGINE SUSPENSION ENGINE SUSPENSION | 1 | |
| 10 | 8110750 | ENGINE SUSPENSION ENGINE SUSPENSION | 2 | |
| 11 | 17092174 | SPRING WASHER SPRING WASHER | 6 | |
| 12 | 16605804 | WASHER WASHER | 6 | |
| 13 | 11391521 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 14 | 15840521 | SCREW SCREW | 2 | |
| 15 | 17091674 | WASHER WASHER | 6 | |
| 16 | 17038821 | HEXAGON NUT HEXAGON NUT | 6 |
