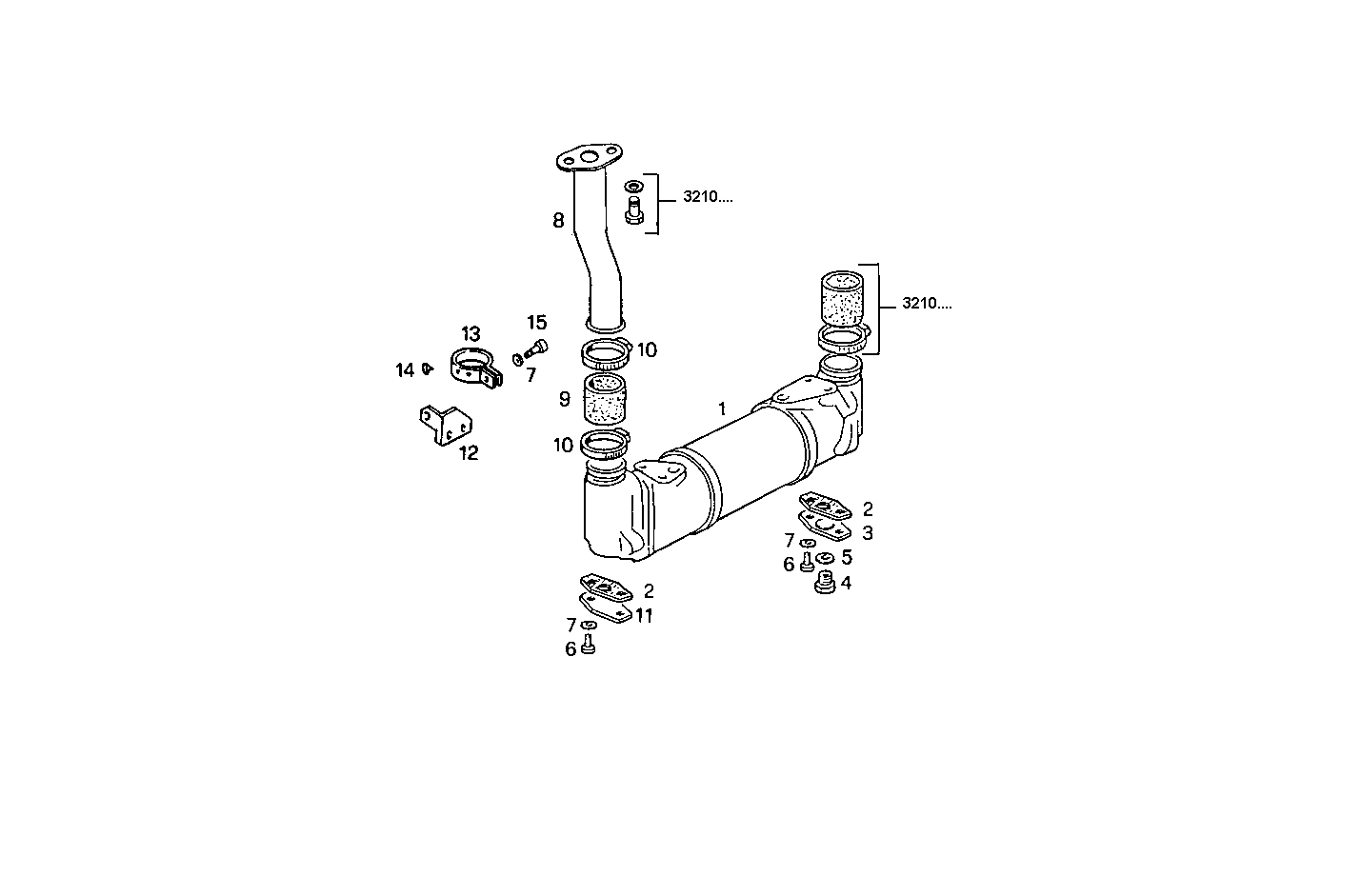

OIL - WATER HEAT EXCHANGER
8210SRM40.30A550 — 8210SRM40
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4803814 | HEAT EXCHANGER HEAT EXCHANGER | 1 | |
| 2 | 4863948 | FLAT ENGINE GKT FLAT ENGINE GKT | 2 | |
| 3 | 4872744 | COVER COVER | 1 | |
| 4 | 16992411 | THREADED PLUG THREADED PLUG | 1 | |
| 5 | 4858609 | WASHER WASHER | 1 | |
| 6 | 16605624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 7 | 17089474 | SPRING WASHER SPRING WASHER | 5 | |
| 8 | 8028472 | WATER PIPE WATER PIPE | 1 | |
| 9 | 4863960 | WATER HOSE WATER HOSE | 1 | |
| 10 | 17764892 | PIPE CLIP PIPE CLIP | 2 | |
| 11 | 593763 | FLANGE FLANGE | 1 | |
| 12 | 4830268 | FASTENING BRACKET FASTENING BRACKET | 1 | |
| 13 | 4640545 | CLIP CLIP | 1 | |
| 14 | 4565875 | RUBBER PAD RUBBER PAD | 3 | |
| 15 | 16605734 | HEXAGON BOLT HEXAGON BOLT | 1 |
