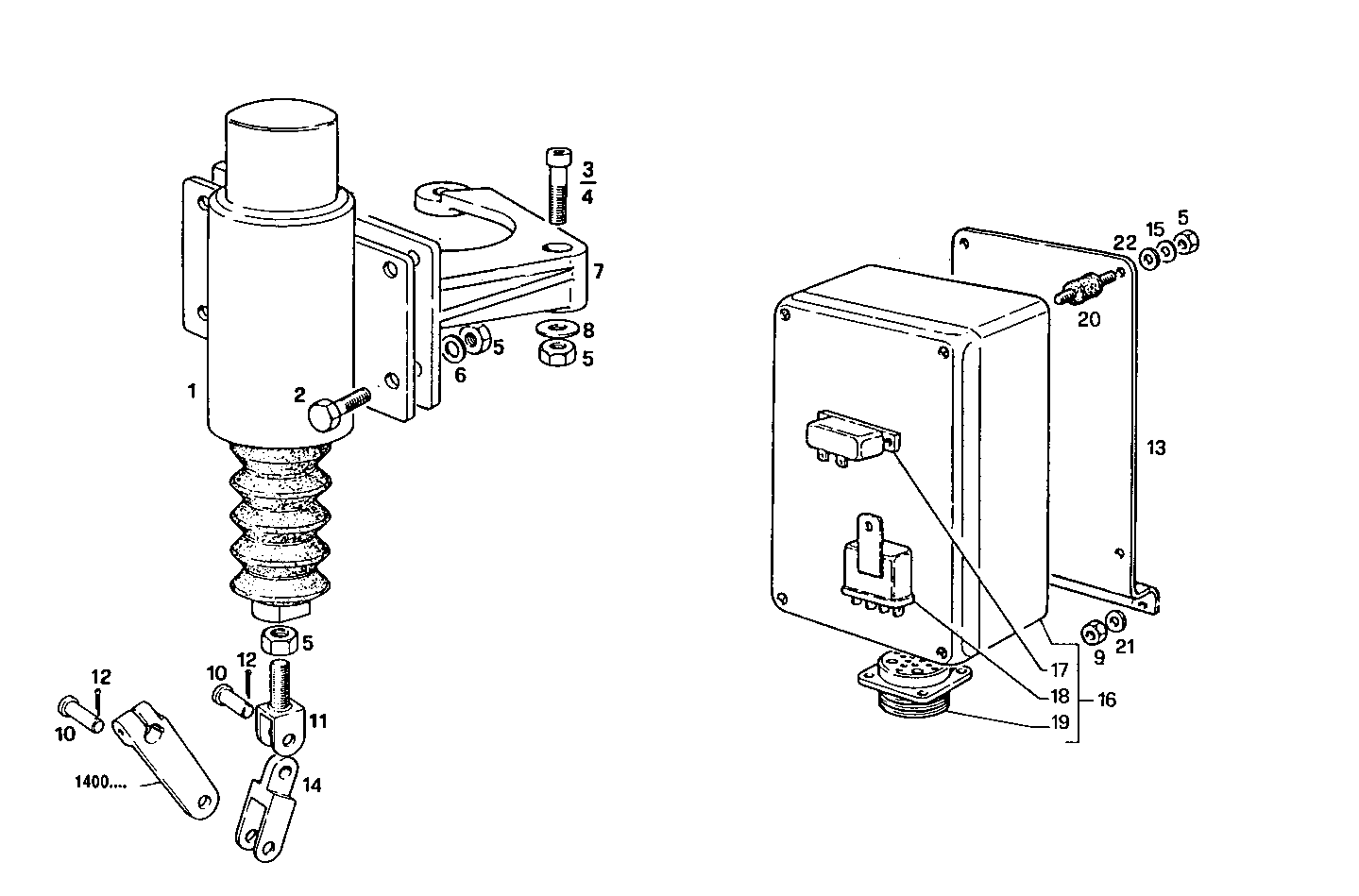

ELECTRIC STOP ENGINE
8210SRM45.10 — 8210SRM45
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8105421 | SOLENOID SOLENOID | 1 | |
| 2 | 16603624 | HEXAGON BOLT HEXAGON BOLT | 4 | |
| 3 | 16689424 | SOCKET-HEAD SCREW SOCKET-HEAD SCREW | 2 | |
| 4 | 16689324 | SCREW SCREW | 1 | |
| 5 | 17037821 | HEXAGON NUT HEXAGON NUT | 12 | |
| 6 | 17088474 | WASHER WASHER | 4 | |
| 7 | 8109114 | SUPPORT SUPPORT | 1 | |
| 8 | 17494734 | WASHER WASHER | 1 | |
| 9 | 17037931 | HEXAGON NUT HEXAGON NUT | 2 | |
| 10 | 17718411 | PIN PIN | 2 | |
| 11 | 8108834 | CLEVIS CLEVIS | 1 | |
| 12 | 16852501 | SPLIT PIN SPLIT PIN | 2 | |
| 13 | 8017498 | RETAINER RETAINER | 1 | |
| 14 | 8108833 | CLEVIS CLEVIS | 1 | |
| 15 | 17710074 | WASHER WASHER | 4 | |
| 16 | 8020687 | ENGINE STOP ENGINE STOP | 1 | |
| 17 | 8108574 | RELAY RELAY | 1 | |
| 18 | 8109522 | RELAY RELAY | 1 | |
| 19 | 8113170 | CONNECTION CONNECTION | 1 | |
| 20 | 4910949 | RUBBER PAD RUBBER PAD | 4 | |
| 21 | 17089474 | SPRING WASHER SPRING WASHER | 2 | |
| 22 | 17094704 | WASHER WASHER | 4 |
