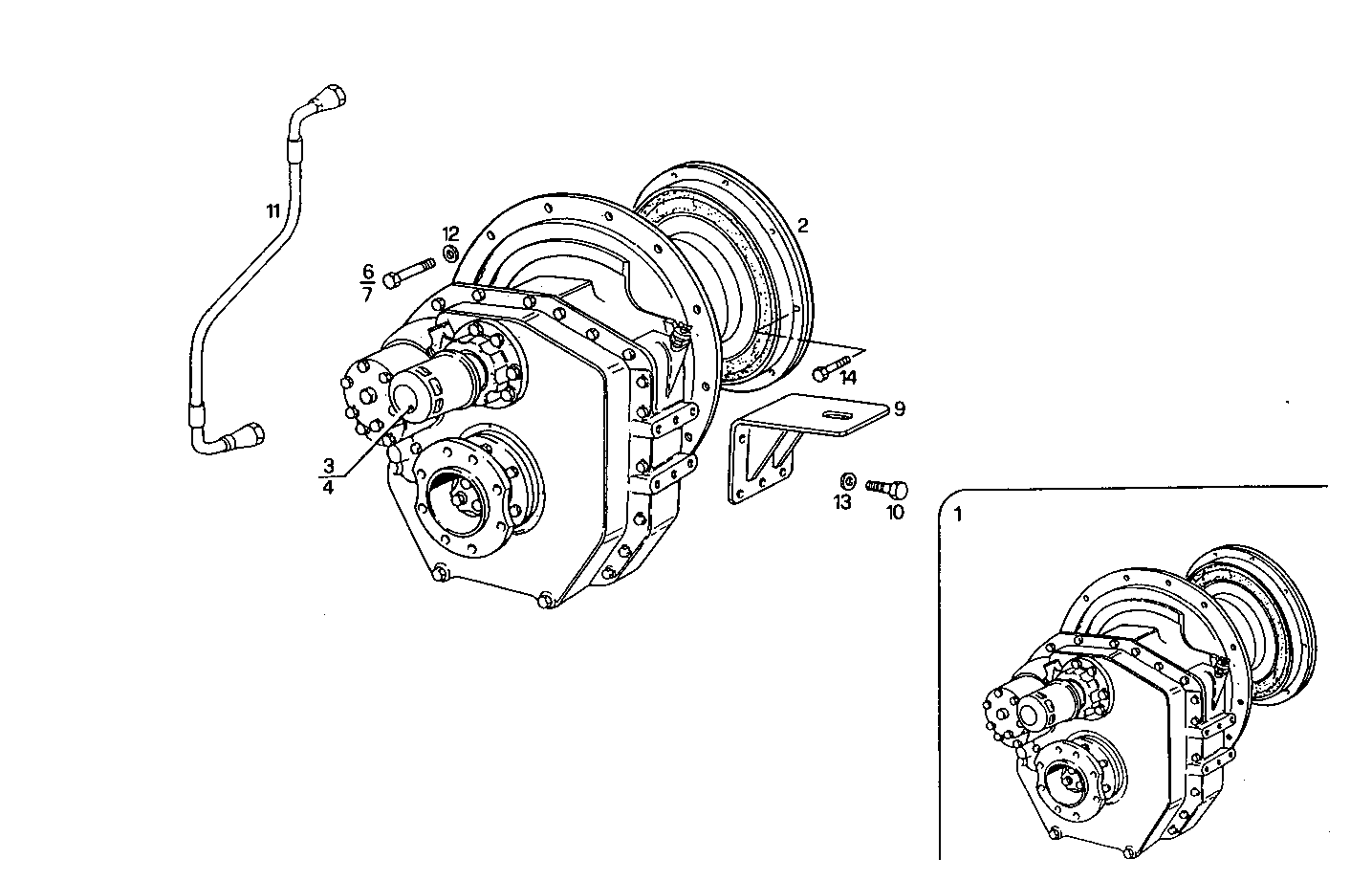

MARINE GEAR ZF-MPM IRM 320-A1 (ang. 7º)
8210SRM45.10 — 8210SRM45
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8023230 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8023060 | FLEXIBLE COUPLING FLEXIBLE COUPLING | 1 | |
| 3 | 8111320 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 4 | 8111321 | OIL FILTER CARTRIDGE OIL FILTER CARTRIDGE | 1 | |
| 6 | 11306921 | SCREW SCREW | 10 | |
| 7 | 10923621 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 9 | 8108819 | SUPPORT SUPPORT | 2 | |
| 10 | 4932875 | SCREW SCREW | 12 | |
| 11 | 8006875 | HOSE HOSE | 2 | |
| 12 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 13 | 11200279 | SPRING WASHER SPRING WASHER | 12 | |
| 14 | 14274621 | LOCKING SCREW LOCKING SCREW | 8 |
