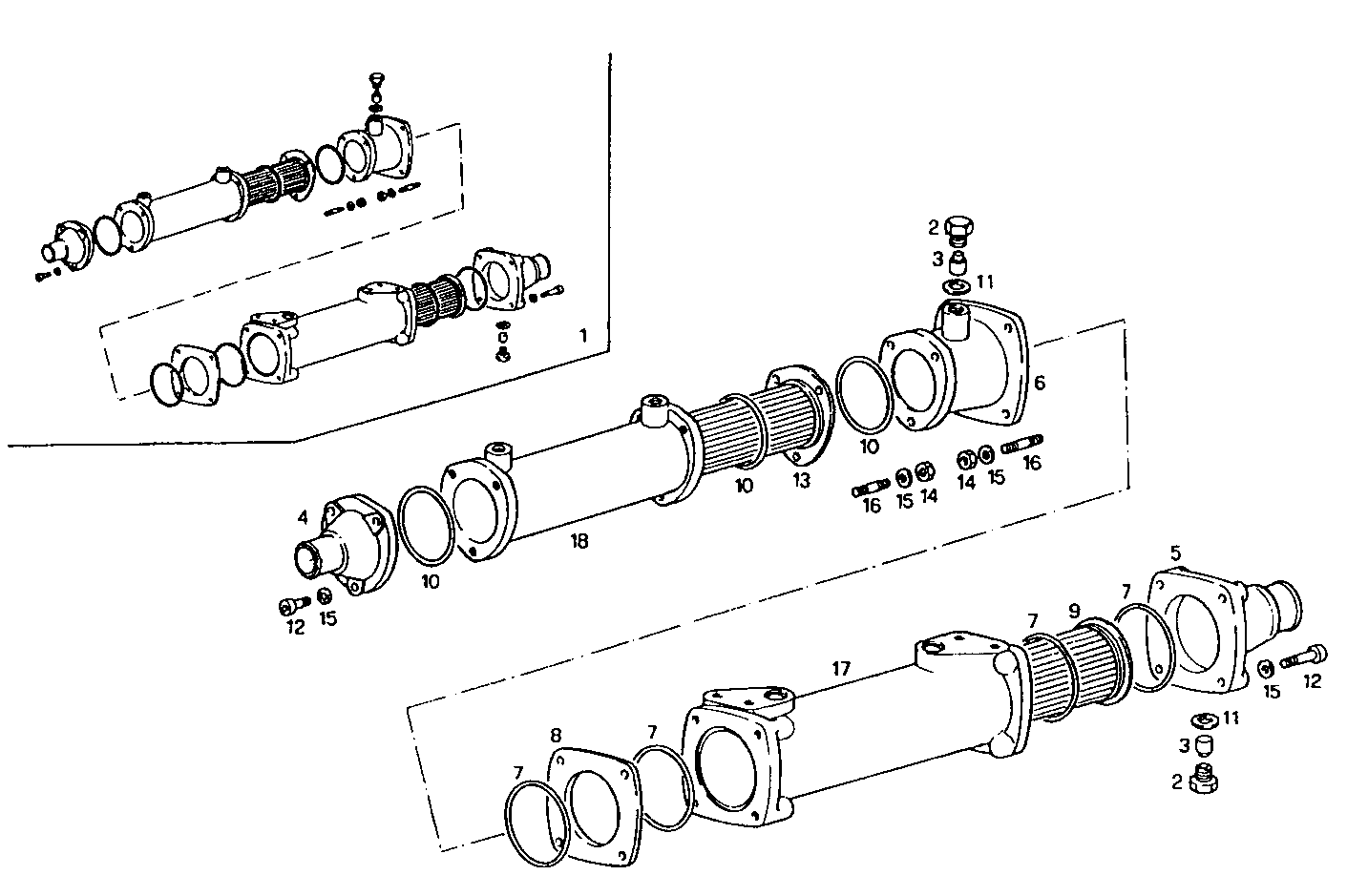

OIL - WATER HEAT EXCHANGER
8210SRM45.10 — 8210SRM45
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024580 | OIL/WATER HEAT EXCHANGER OIL/WATER HEAT EXCHANGER | 1 | |
| 2 | 4917793 | PLUG PLUG | 2 | |
| 3 | 8105277 | SACRIFICAL ANODE SACRIFICAL ANODE | 2 | |
| 4 | 8024581 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 5 | 8024579 | HEAT EXCHANG.COVER HEAT EXCHANG.COVER | 1 | |
| 6 | 8024284 | FLANGE FLANGE | 1 | |
| 7 | 8019074 | O-RING O-RING | 4 | |
| 8 | 4837668 | SPACING BAR SPACING BAR | 1 | |
| 9 | 4837665 | TUBE STACK TUBE STACK | 1 | |
| 10 | 17290881 | O-RING O-RING | 3 | |
| 11 | 4858610 | WASHER WASHER | 2 | |
| 12 | 16690824 | CYLIND-HEAD SCREW CYLIND-HEAD SCREW | 7 | |
| 13 | 8017384 | TUBE STACK TUBE STACK | 1 | |
| 14 | 17037931 | HEXAGON NUT HEXAGON NUT | 7 | |
| 15 | 17800474 | WASHER WASHER | 14 | |
| 16 | 16746824 | STUD STUD | 7 | |
| 17 | 4837664 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 | |
| 18 | 8017382 | HEAT EXANGER BODY HEAT EXANGER BODY | 1 |
