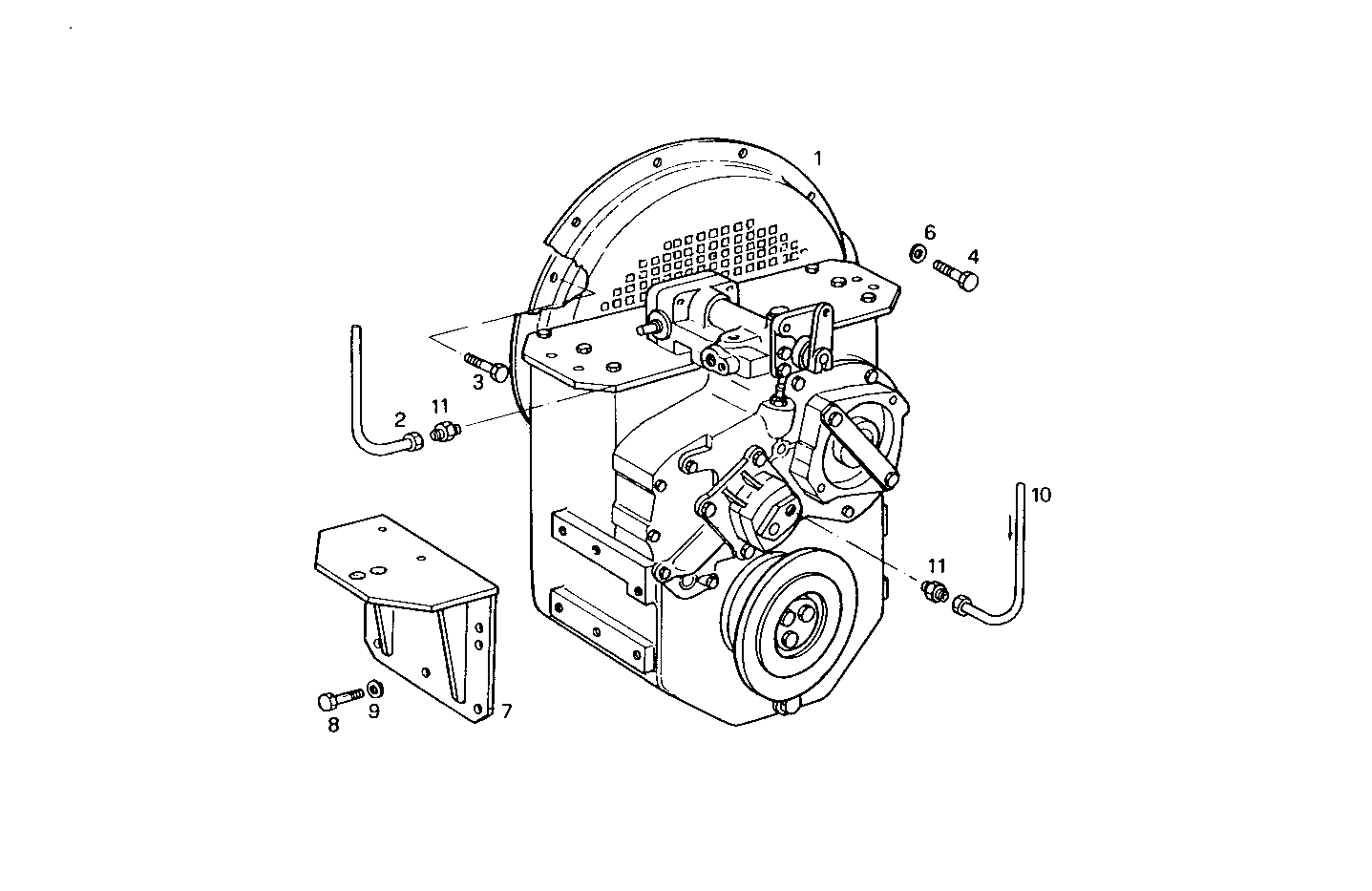

MARINE GEAR TWIN DISC MG 5111
8210SRM45.31 — 8210SRM45
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8024895 | MARINE GEAR MARINE GEAR | 1 | |
| 2 | 8005840 | HOSE HOSE | 1 | |
| 3 | 14274621 | LOCKING SCREW LOCKING SCREW | 8 | |
| 4 | 11306921 | SCREW SCREW | 12 | |
| 6 | 17090174 | SPRING WASHER SPRING WASHER | 12 | |
| 7 | 8010464 | SUPPORT SUPPORT | 2 | |
| 8 | 4933337 | SCREW SCREW | 12 | |
| 9 | 17092374 | SPRING WASHER SPRING WASHER | 12 | |
| 10 | 8113774 | HOSE HOSE | 1 | |
| 11 | 8113794 | PIPE SOCKET PIPE SOCKET | 2 |
