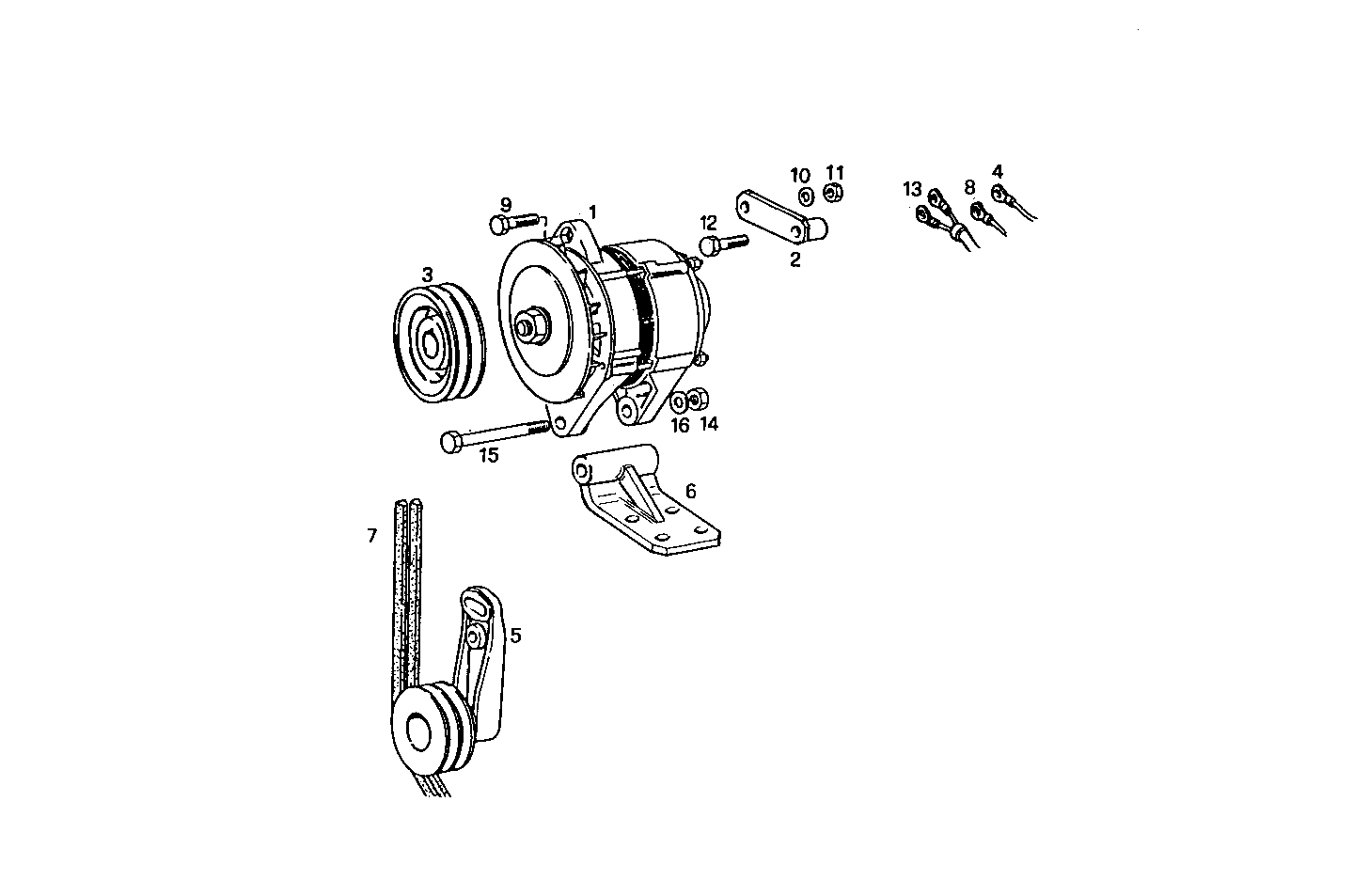

SELF-REGULATED ALTERNATOR
8210SRM45.31 — 8210SRM45
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 4798922 | ALTERNATOR ALTERNATOR | 1 | |
| 2 | 8030383 | TENSIONER TENSIONER | 1 | |
| 3 | 8105844 | PULLEY PULLEY | 1 | |
| 4 | 8009673 | EARTH WIRE EARTH WIRE | 1 | |
| 5 | 8005562 | BELT TENSIONER BELT TENSIONER | 1 | |
| 6 | 8030374 | SUPPORT SUPPORT | 1 | |
| 7 | 4829323 | V-BELT V-BELT | 1 | |
| 8 | 8019531 | WIRE/CABLE WIRE/CABLE | 1 | |
| 9 | 4785419 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 10 | 4035499 | WASHER WASHER | 1 | |
| 11 | 17153021 | HEXAGON NUT HEXAGON NUT | 1 | |
| 12 | 16611821 | SCREW SCREW | 1 | |
| 13 | 8113047 | WIRE/CABLE WIRE/CABLE | 1 | |
| 14 | 17153321 | HEXAGON NUT HEXAGON NUT | 1 | |
| 15 | 4604245 | HEXAGON BOLT HEXAGON BOLT | 1 | |
| 16 | 17095304 | WASHER WASHER | 1 |
