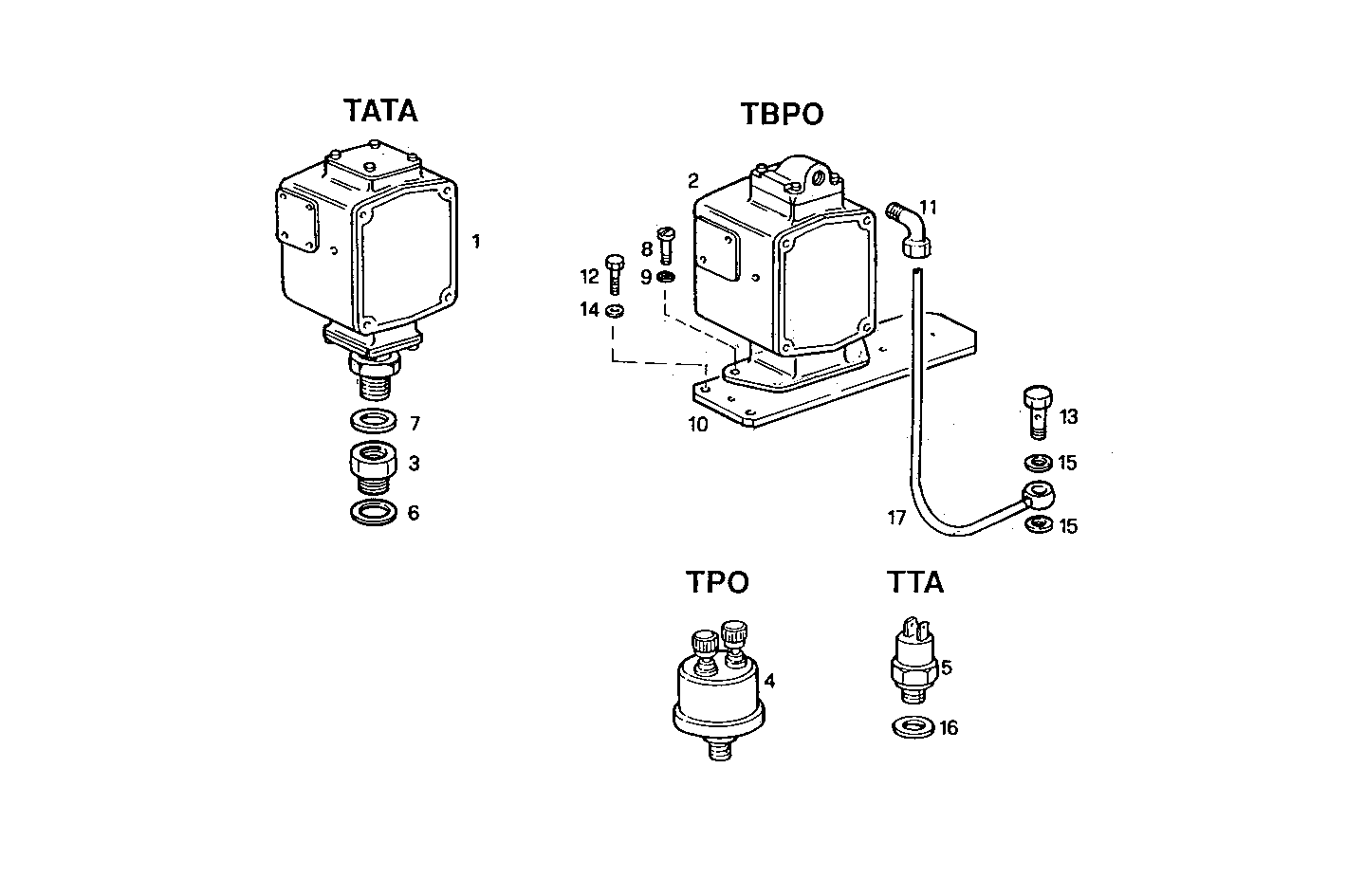

SENDER UNITS FOR GENERATOR UNIT
8210SRM45.31 — 8210SRM45
Parts List
| # | Part No | Name / Description | Qty | Action |
|---|---|---|---|---|
| 1 | 8110742 | TRANSMITTER TRANSMITTER | 1 | |
| 2 | 8110741 | TRANSMITTER TRANSMITTER | 1 | |
| 3 | 8021213 | PIPE SOCKET PIPE SOCKET | 1 | |
| 4 | 8100417 | TRANSMITTER TRANSMITTER | 1 | |
| 5 | 8100418 | TRANSMITTER TRANSMITTER | 1 | |
| 6 | 98429281 | SEAL GASKET SEAL GASKET | 1 | |
| 7 | 11271460 | GASKET GASKET | 1 | |
| 8 | 17133314 | SCREW SCREW | 2 | |
| 9 | 17088474 | WASHER WASHER | 2 | |
| 10 | 8029370 | RETAINER RETAINER | 1 | |
| 11 | 8111261 | PIPE SOCKET PIPE SOCKET | 1 | |
| 12 | 16607824 | HEXAGON BOLT HEXAGON BOLT | 2 | |
| 13 | 4864081 | SCREW CONNECTOR SCREW CONNECTOR | 1 | |
| 14 | 17090374 | WASHER WASHER | 2 | |
| 15 | 4858606 | GASKET GASKET | 2 | |
| 16 | 4858608 | SEAL GASKET SEAL GASKET | 2 | |
| 17 | 8028772 | OIL LINE OIL LINE | 1 |
